15 | Examples of settings
176
D-ISC 100 x xx2
● Outputs the selected sensor channel at the analogue output.
Method B
Assignment of analogue output to sensor channel
The sensor channel whose output value is to be output at the
D‑ISC100 current output is firstly selected. The analogue output
(AOx) providing this output value must then be assigned.
D‑ISC100 menu path:
Standard display (menu1) (menü4) [Channelsetup]
(Channelsetup menü4.1) (menu 4.2) Sensor(S)
(menu 4.2.1) e.g. (S1 D-R 220) (menu 4.2.S1.1)
[Assign measuring values]
= S1:Assign measuring values MENU 4.2.S1.3.1
In this menu, a selection list is displayed, from which an entry
(sensor channel) can be selected using the arrow keys (
).
The menu address firstly displayed here is, for ex-
ample:Menu4.2.S1.3.1.
A sensor channel can be selected (
) and confirmed by press-
ing the
key. In the following menu, the previously selected
sensor channel (menu 4.2.S1.3.1…4) is now linked to the de-
sired analogue output (
and ) under the entry [ Assign …
to analogue output (AO)] (e.g. 4.2.S1.3.1.1).
The analogue OUT interfaces that are present and configured
within the system are listed there (in the example below, the list
consists of only a single entry).

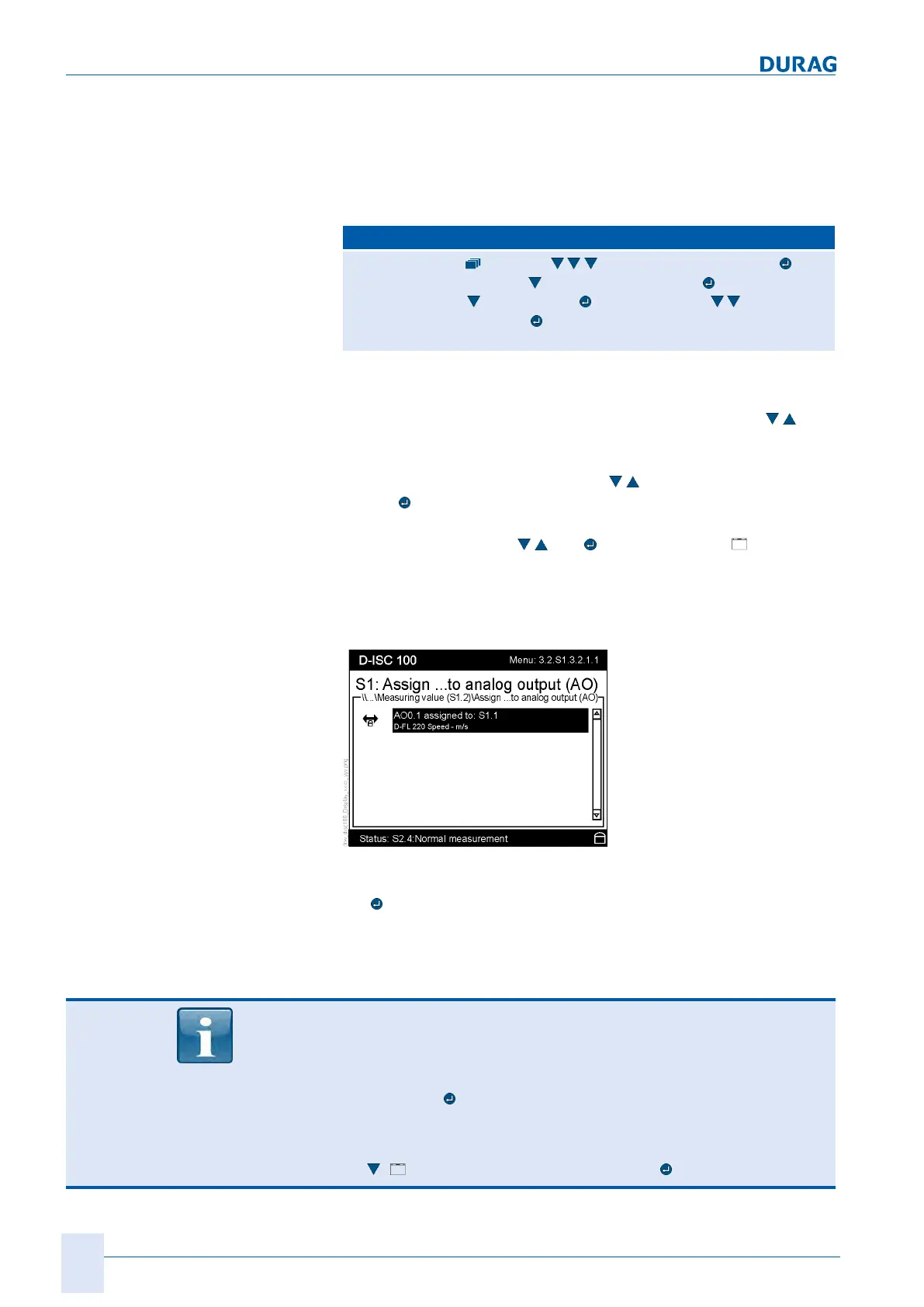

Fig.15.35: Menu 4.2.S1.3.1.1.1
The assignment of the selected entry is performed by pressing
the
key. This
● Saves the setting,
● Updates the display and
● Outputs the selected sensor channel at the analogue output.
There is also a short method for setting the analogue output:
▶ Use the arrow keys in the measured value display to call up
the analogue output.
▶ Press the
key to access the configuration
(
in the menu for the menu address first displayed, e.g.: menu
4.3.AOx.1).
▶
[ Assign source measuring values]
