DURAG D-ISC 100 2 Series - D-Isc 100 C

3 | Device and Function description
22
D-ISC 100 x xx2
76
Vent plugs
83
Display unit connection
91
Fresh air purge air feed
92
Purge air connection
93
Fan
94
Purge air filter
X1
Plug terminals for
device connection
(see Technical data
for operating voltage)
Table3.10: Parts designation D-ISC 100 P

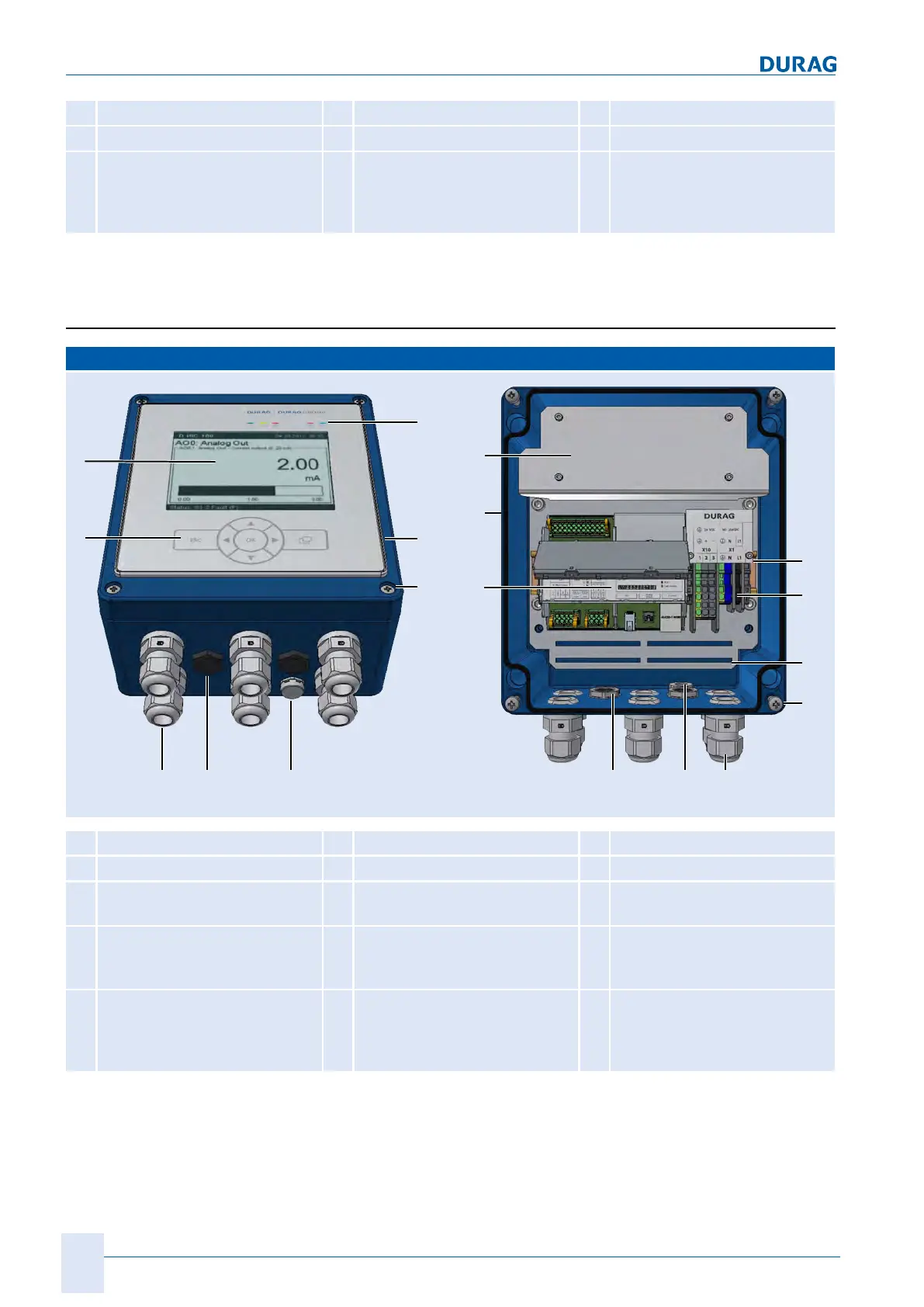

3.3.5 D-ISC 100 C
D-ISC 100 C
10
20
30
45
72 7671
76 72
42
X1
61
45
47
62
71
48
43
10
Display
20
Keyboard
30
LEDs
42
Lower housing part
43
Housing cover
45
Fastening (screws)
47
Top hat rail
48
Rails for
shield terminals
61
Power supply unit
62
Top hat rail module
D‑ISC100CPU module
(3.3.2 CPU module [}19])
71
Blind plugs
72
Cable glands
76
Vent plugs
X1
Plug terminals for
device connection
(see Technical data
for operating voltage)
Table3.11: Parts designation D-ISC 100 C
