DURAG D-ISC 100 2 Series User Manual

15 | Examples of settings
D-ISC 100 x xx2
197
Configuring external sensor
software module:

Step 1
Access the menu for the external sensor:
D‑ISC100 menu path:
Standard display User mode (menu1) Channelsetup
(menu4)
(D−ISC100 (D) (menu4.1) Modules (M) (menu4.3)
Software modules (menu4.3.1) e.g. … External sensor
(menu4.3.SX1)
Status (menu4.3.SX1.1) e.g. Assign source
measuring values
=MENU 4.3.SX1.2

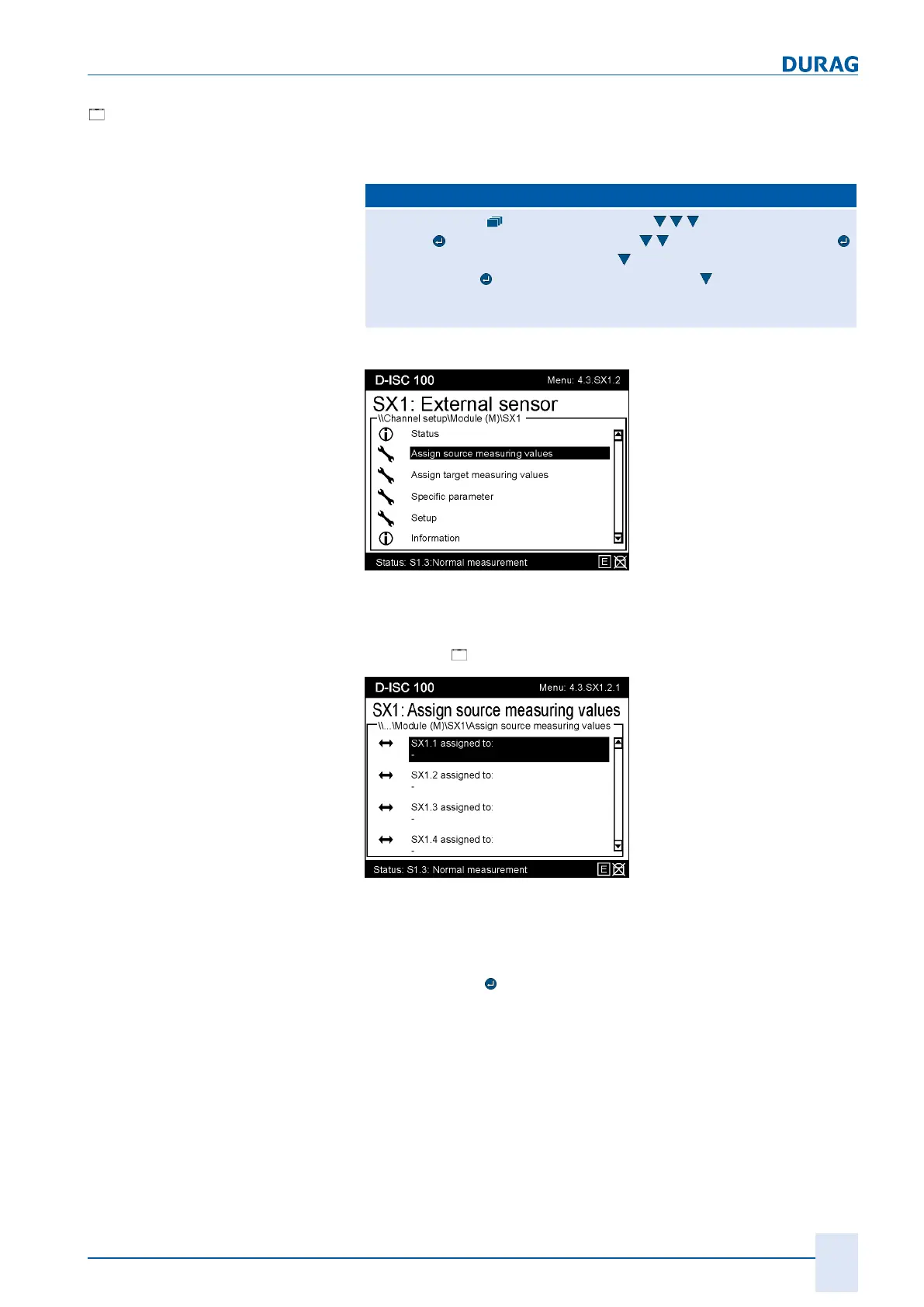

Fig.15.72: "External sensors" menu

Step 2
Select the [
"Assign source measuring values"] menu item.
Fig.15.73: Assign source 1
The output menu entry is empty before a source is assigned (see
figure above).
To assign the External sensor module to a source, confirm SX1.1
by pressing the
key.
(
Note : The units available for selection depend on the composi-
tion of the existing system
).

