Maintenance

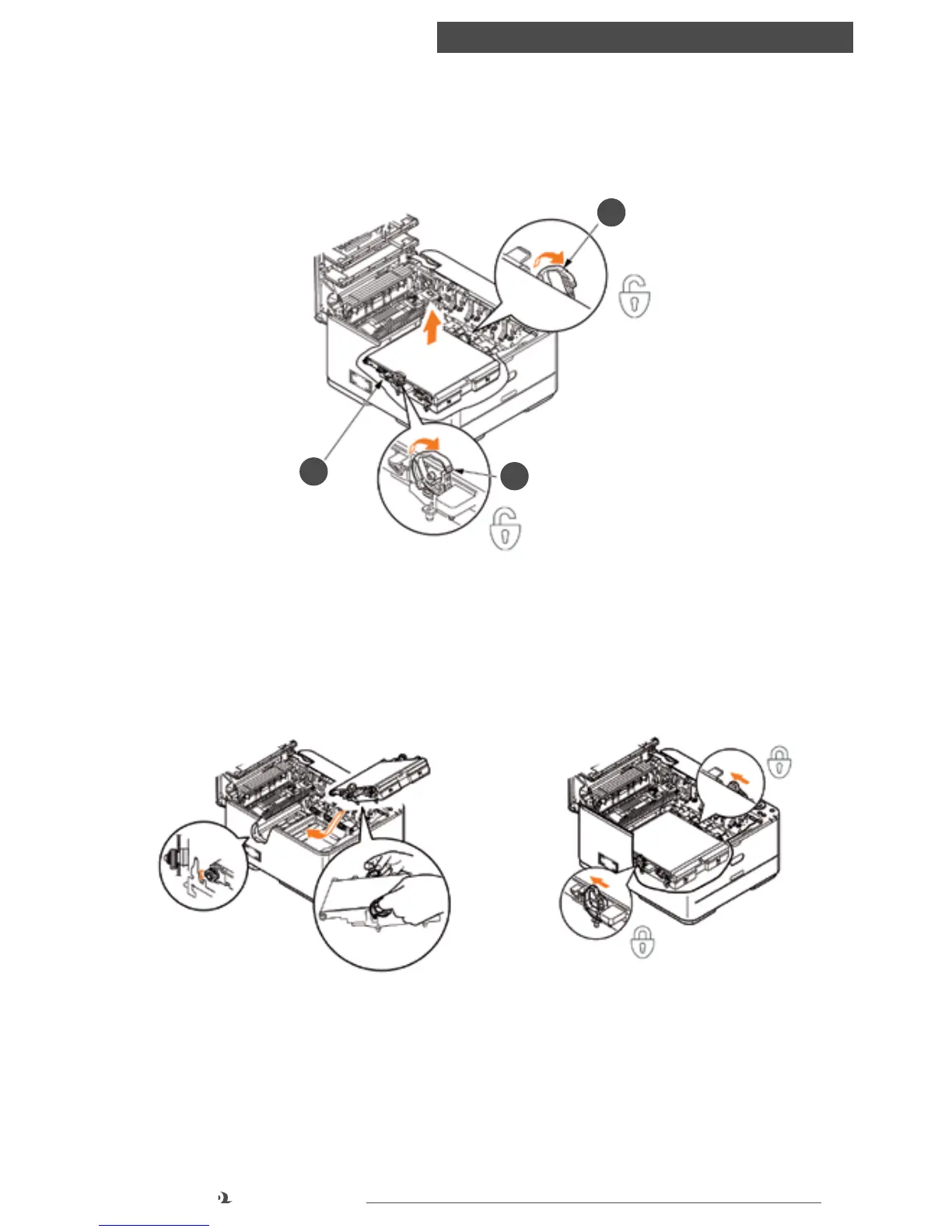

4. Pull the locking levers at each side of the transfer belt up and towards the front
of the machine.
5. Using the locking levers (a), lift the belt (b) upwards and withdraw from the
machine.
6. Lower the new belt unit into place, with the drive gear towards the rear of the
printer. Locate the drive gear into the gear inside the printer by the rear right
corner of the unit, and lower the belt unit flat inside the printer.
7. Push the locking levers towards the rear of the machine. This will secure the
belt unit in place.
a
a
b
