GettinG started
6. Getting Started
6.1 Overview

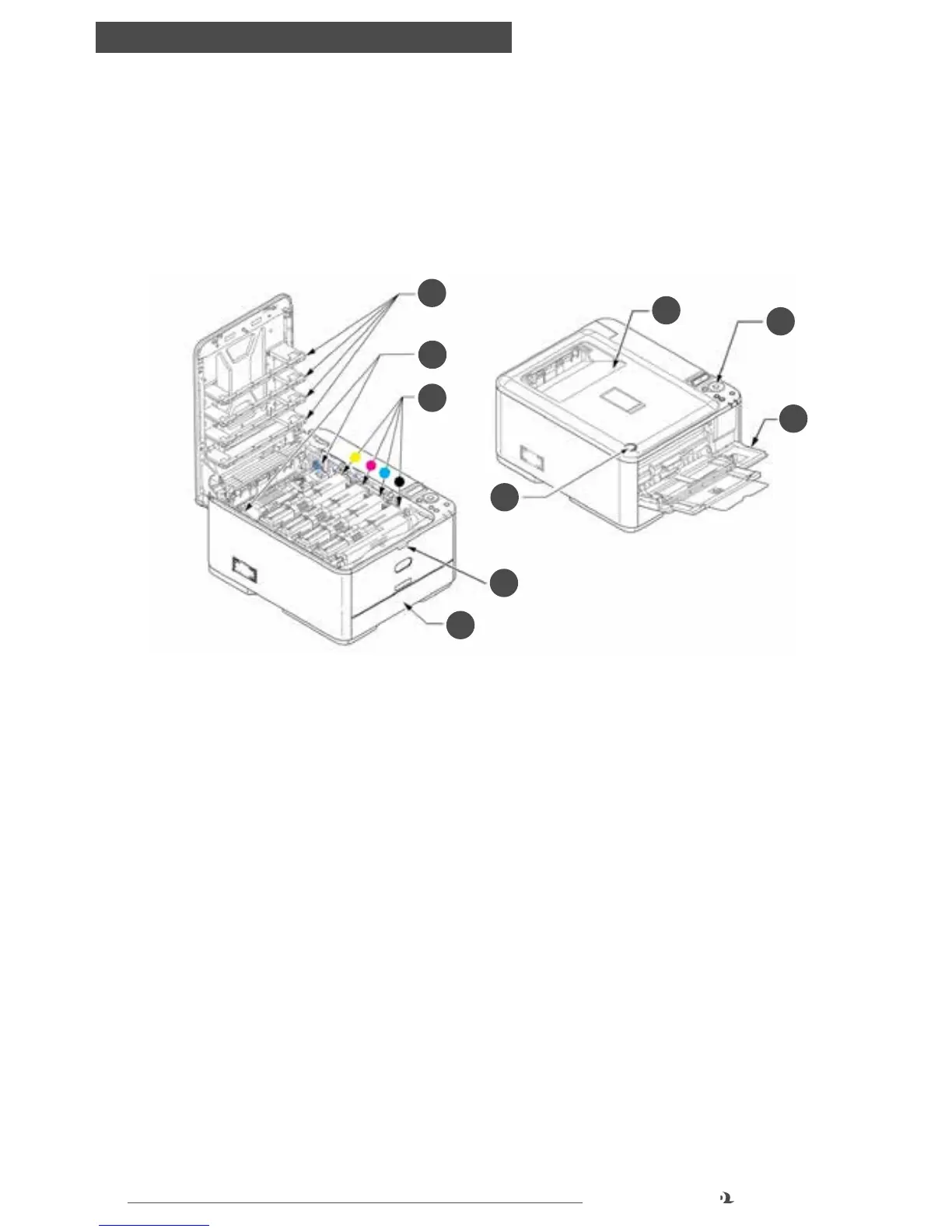

FRONT VIEW
1. Output stacker, face down. Standard printed copy delivery point
2. Operator panel. Menu driven operator controls and LCD panel
3. Paper tray. Standard paper tray. Holds up to 50 DuraLabel Catalyst Supply
sheets; 250 8.5" x 11" sheets of 20 lb paper
4. Multi-purpose tray. Used for feeding 6.5" x 9.5" Duralabel Catalyst Supply
sheets, heavier paper stocks, envelopes and other special media. Also for
manual feeding of single sheets when required
5. Multi-purpose tray release recess
6. Top cover release button
7. LED heads
8. Fuser release levers
9. Toner cartridges (C,M,Y,K)
3
5
6
1
2
4
9
8
7
