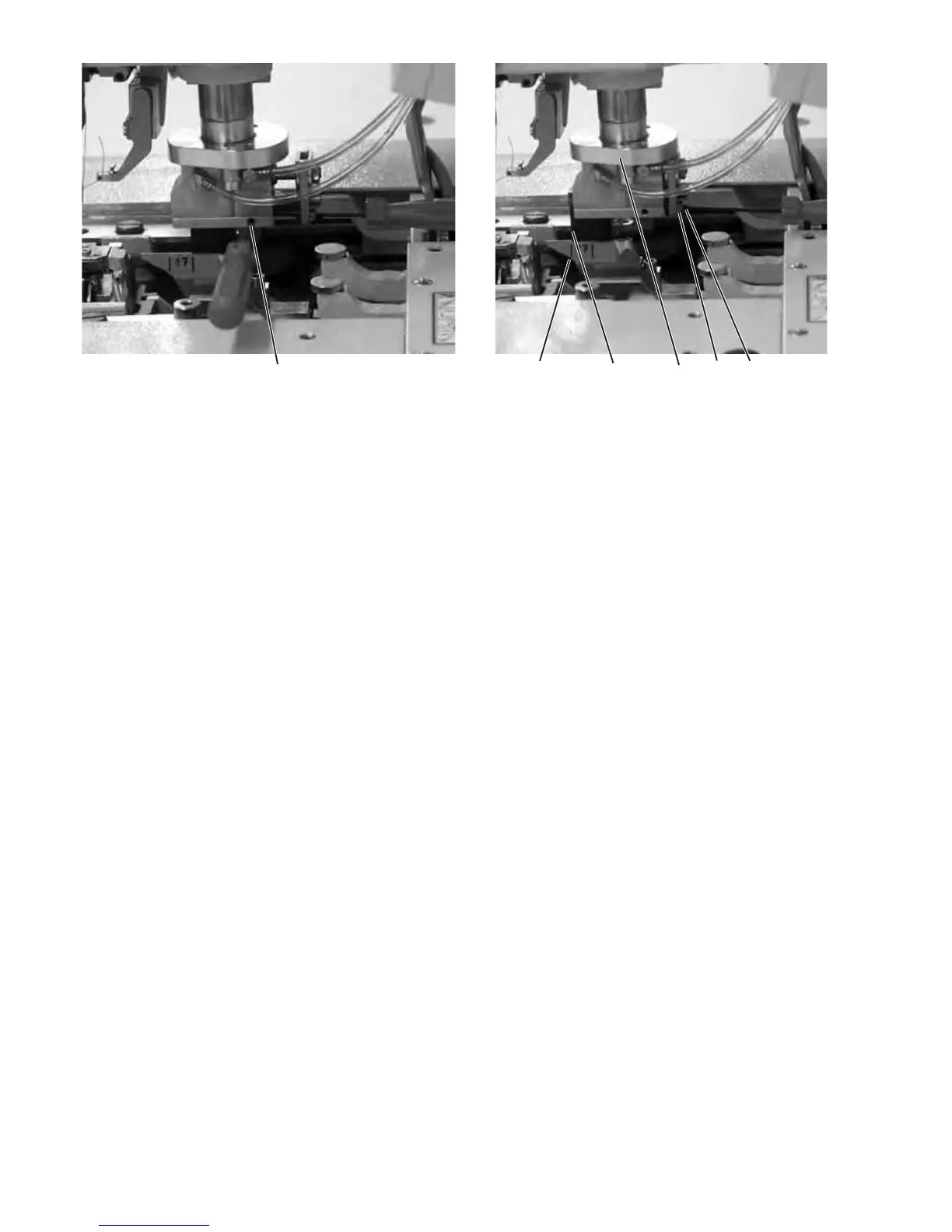

Push the cutting block to its left end position (picture on the right).
The left edge 4 of the cutting block must stand on the left
mark 5 of the knife.
–
Loosen the counter nut 2.
–
Adjust the position of the cutting block by means of the screw 1.
–
Tighten the counter nut 2 again.
–
Connect the machine to the pneumatic supply system again.
Hint
The cutting block holder 3 will then move automatically upward
and the cutting block to its right end position, after the compressed air
hose is connected.
