Maintenance
204 Operating Instructions 745-35-10 S/745-35-10 A - 03.0 - 04/2017
For topping off the oil reservoir, use only lubricating oil DA 10 or oil of
equivalent quality with the following specifications:
• Viscosity at 40 °C: 10 mm²/s
• Flash point: 150 °C
You can order the lubricating oil from our sales offices using the following
part numbers:
Check the oil level in the oil reservoir used for lubricating the
machine head

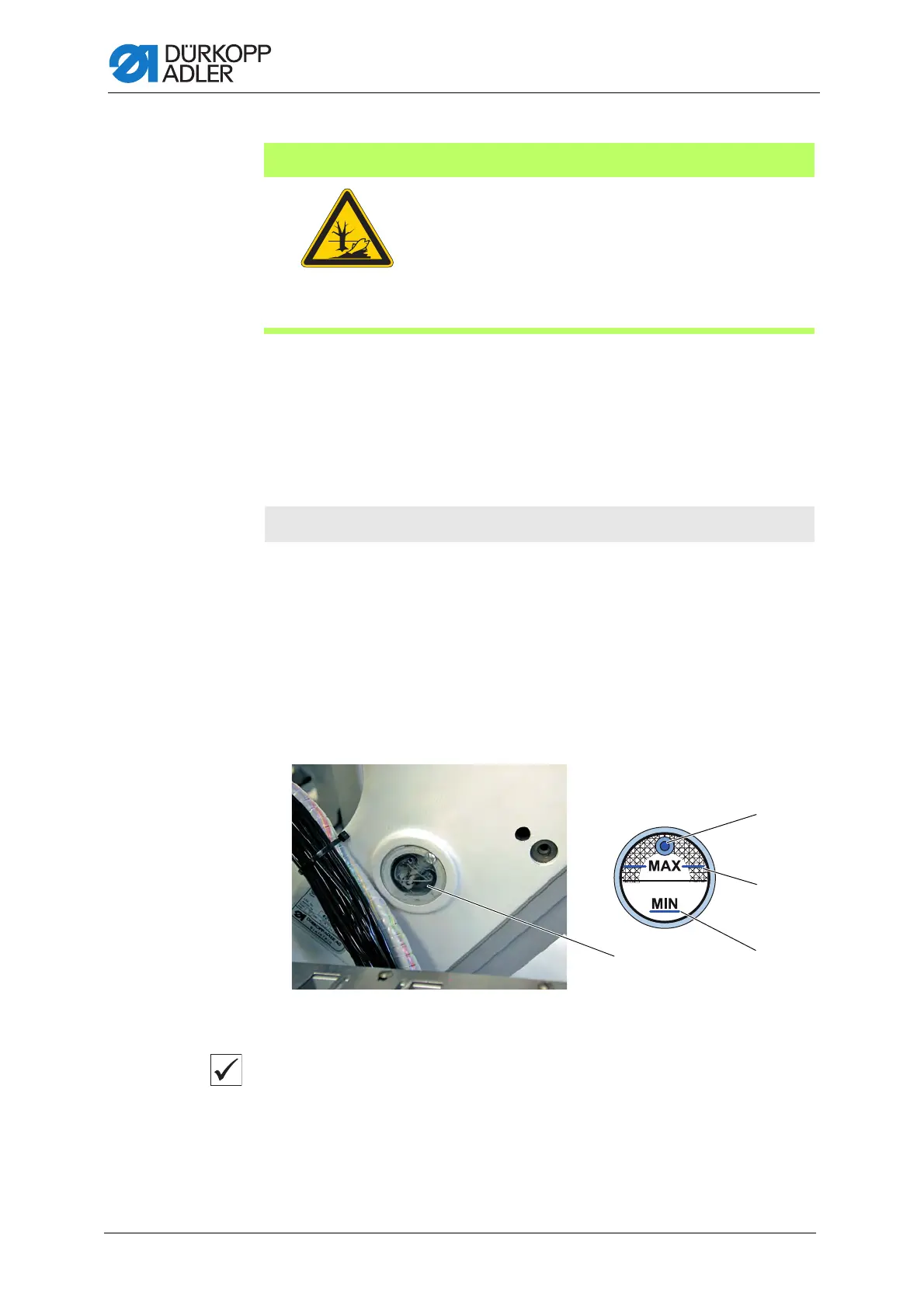

Fig. 175: Lubricating (1)
Proper setting
The oil level must not raise above the MAX marking (3) or drop below the
MIN marking (2).
CAUTION
Risk of environmental damage from old oil!
Incorrect handling of old oil can result in severe
environmental damage.
ALWAYS observe the legally prescribed
regulations for handling and disposal of mineral oil.
Take care to ensure that oil is NEVER spilled.
Container Part number
250 ml 9047 000011
1 l 9047 000012
2 l 9047 000013
5 l 9047 000014
(1) - Oil reservoir
(2) - MIN marking
(3) - MAX marking
(4) - Hole
