Operation
Operating Instructions 745-35-10 S/745-35-10 A - 03.0 - 04/2017 25
Information
With the thread supply in the reserve groove it is ensured that the pocket
opening can be safely finished after the remaining thread monitor has pro-
duced the message Error 3220
(bobbin empty).
Important
The reflecting surface (5) of the bobbin hub (4) must be kept clean.
7. Press the bobbin flap (3) against the bobbin hub (4).
The winder starts up.
Information
The winder stops automatically when the configured bobbin filling volume
has been reached. The setting of the bobbin filling volume is described in
the Service Instructions.
4.8 Replacing the bobbin thread reels

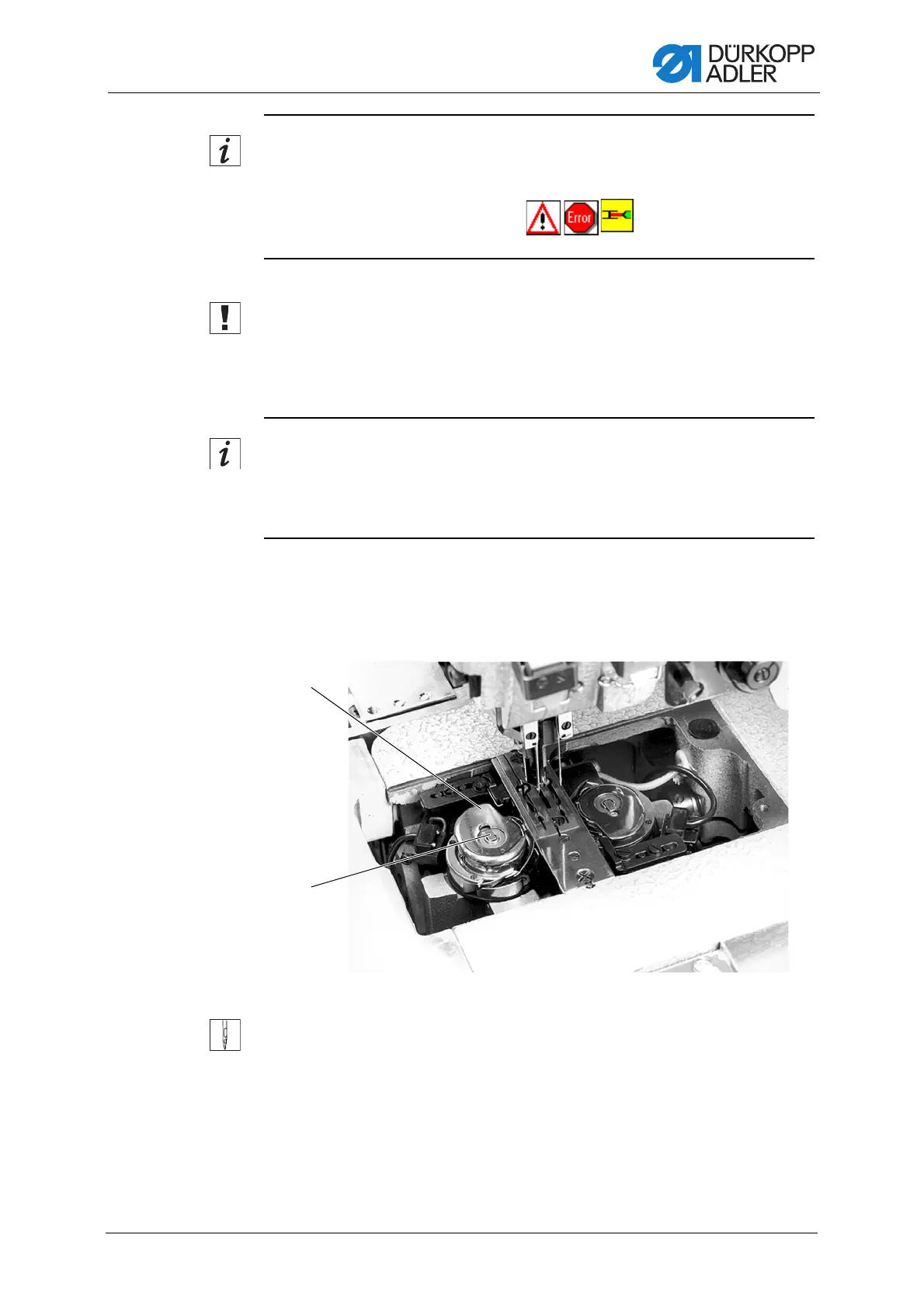

Fig. 13: Replacing the bobbin thread reels (1)
To change the bobbin thread reels:
1. Switch off the main switch.
2. Swivel the folding station to the side ( p. 18).
3. Raise the fabric sliding plate and swivel it to the left ( p. 29).
4. Lift the bobbin case upper section (1). The bobbin case retainer (2) will
be lifted as well.
(1) - Bobbin case upper section (2) - Bobbin case retainer
