7.3.4 Assembling the workpiece boxes (additional equipment)
(745-35-10 A)

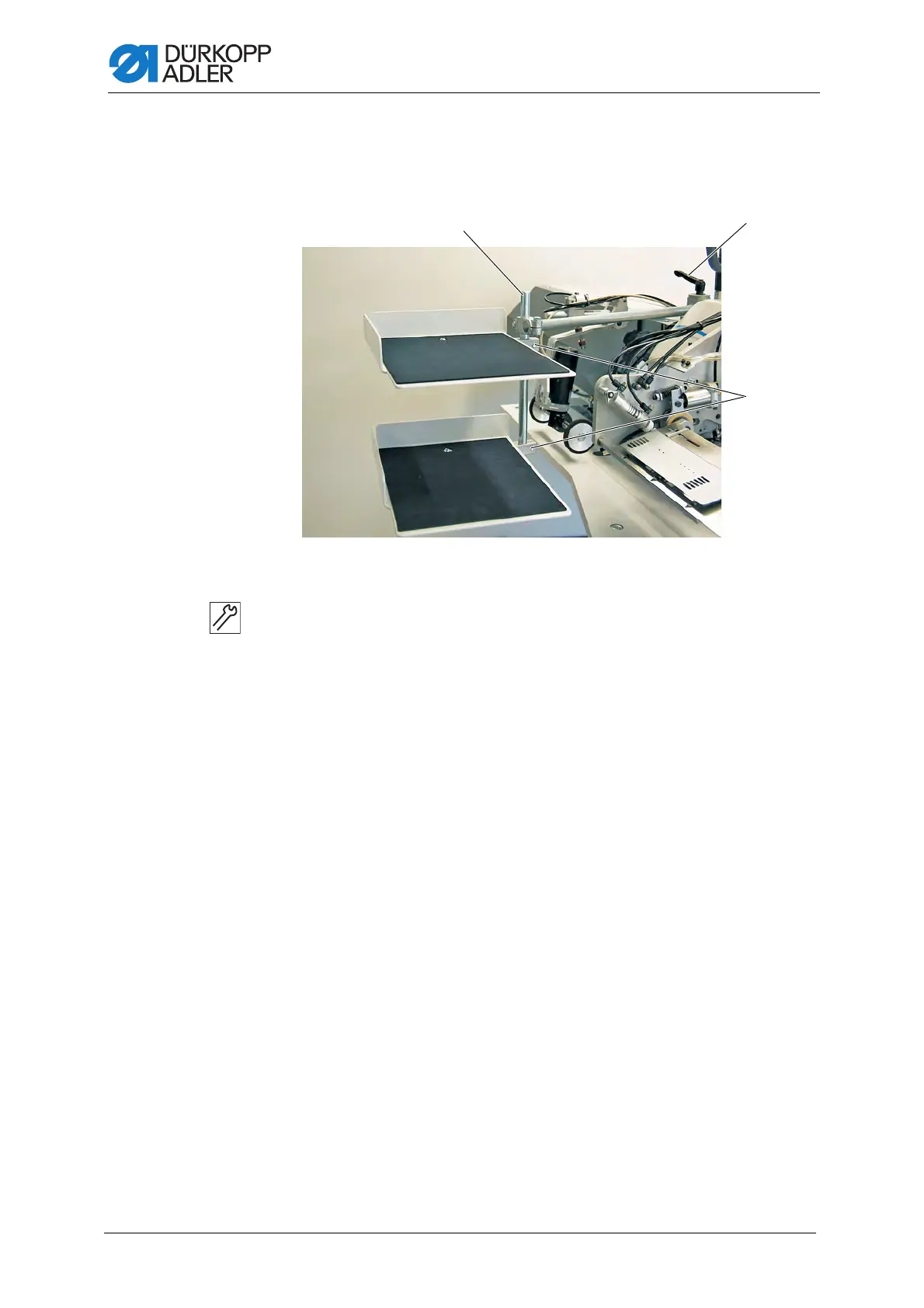

Fig. 188: Assembling the workpiece boxes
To assemble the workpiece boxes:
1. Slide the clamping pieces (1) onto the bar (3).
2. Adjust the height of the workpiece boxes.
3. Tighten the screws on the clamping pieces (1).
4. Loosen the clamping lever (2).
5. Align the workpiece boxes with the sewing station.
6. Fasten the clamping lever (2).
(1) - Clamping pieces with screws
(2) - Clamping lever
(3) - Bar
