Setup
Operating Instructions 745-35-10 S/745-35-10 A - 03.0 - 04/2017 215
7.2.6 Connecting the pedal

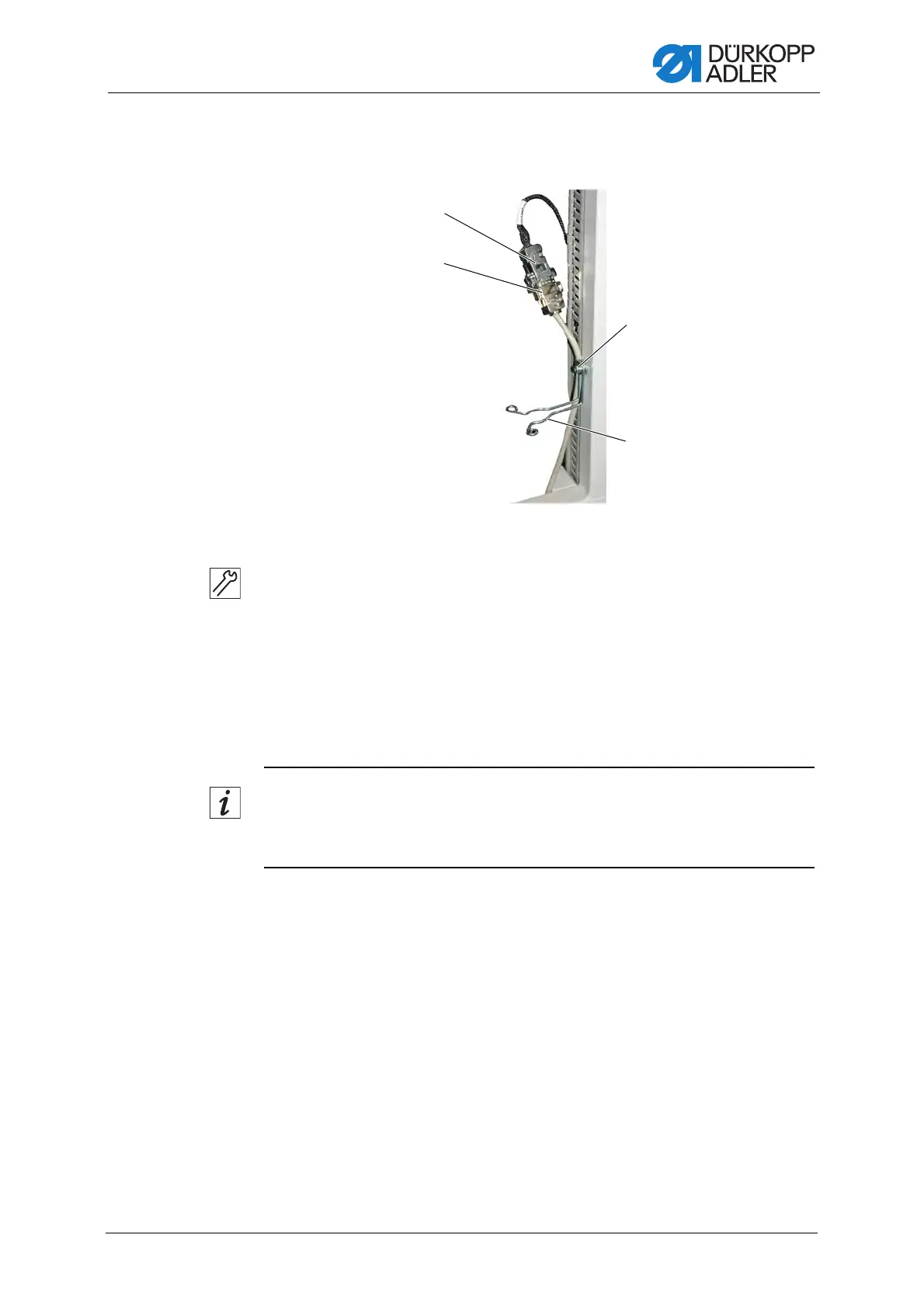

Fig. 183: Connecting the pedal
To connect the pedal:
1. Insert the plug (2) of the pedal into the socket (1).
2. Place the grounding clip (4) around the cable and assemble in place
behind the oil can holder (3).
Adjusting the pedals
For convenience, the parts are only named on one side. However, the
same mapping applies on the other side of the pedal.
Information
The foot pedals can be adjusted in height, angle of inclination and lateral
position.
(1) - Socket
(2) - Plug
(3) - Oil can holder
(4) - Grounding clip
