Setup
216 Operating Instructions 745-35-10 S/745-35-10 A - 03.0 - 04/2017

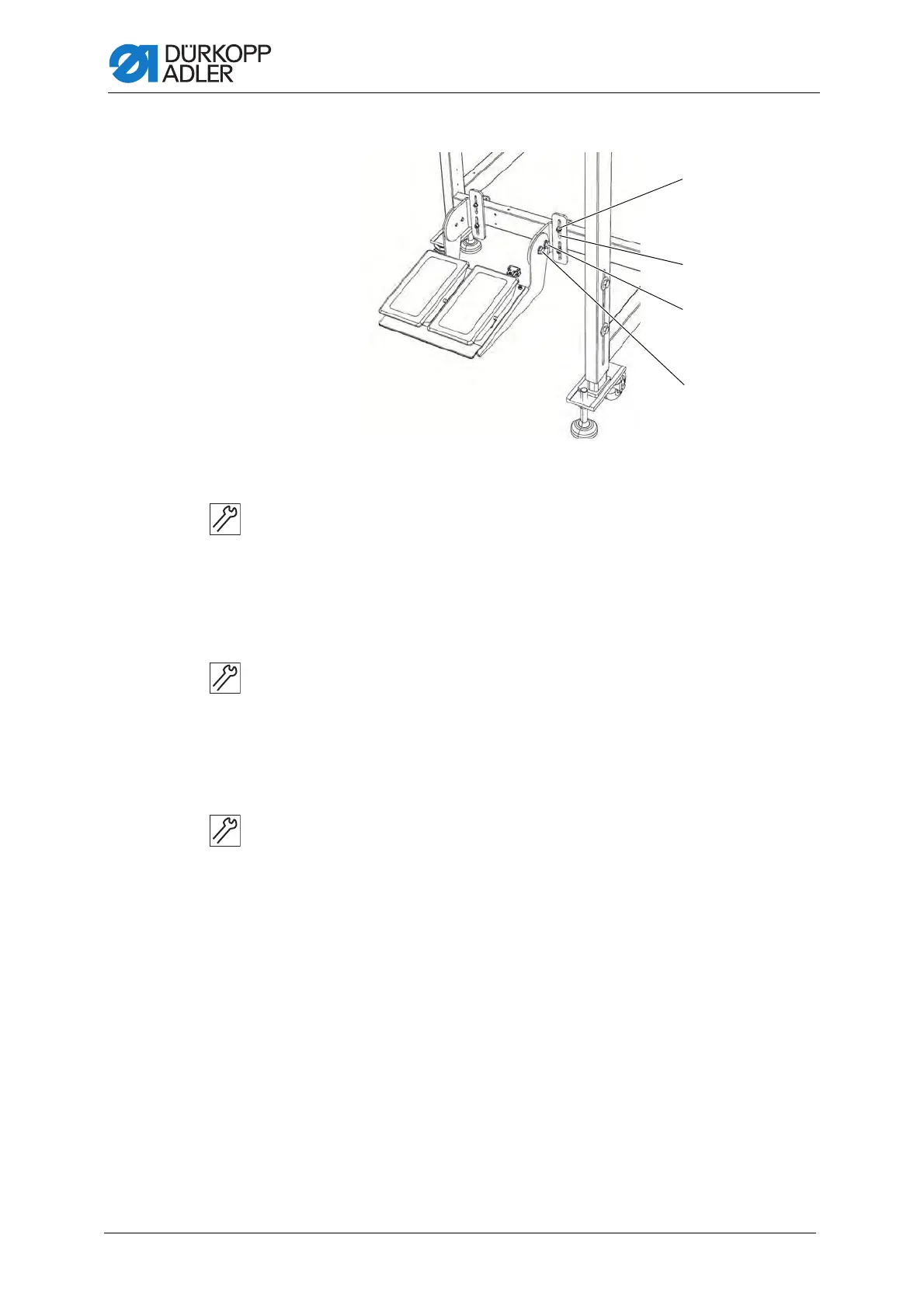

Fig. 184: Adjusting the pedals
To adjust the height of the pedals:
1. Loosen the screws (1) (4x).
2. Shift the position of the screws (1) in the slotted hole (3).
3. Make sure the height of the pedal is even.
4. Tighten the screws (1).
To adjust the pedals’ angle of inclination:
1. Loosen screws (2) (2x) and screws (1) (2x).
2. Swivel the pedal.
3. Tighten screws (2) and screws (1) at the pedals’ desired angle of
inclination.
To adjust the lateral position of the pedals:
1. Loosen the screws (4) (4x).
2. Shift the pedal laterally on the stand brace.
3. Tighten the screws (4).
(1) - Screws
(2) - Screws
(3) - Slotted hole
(4) - Screws
