3. Machine Setup & Installation

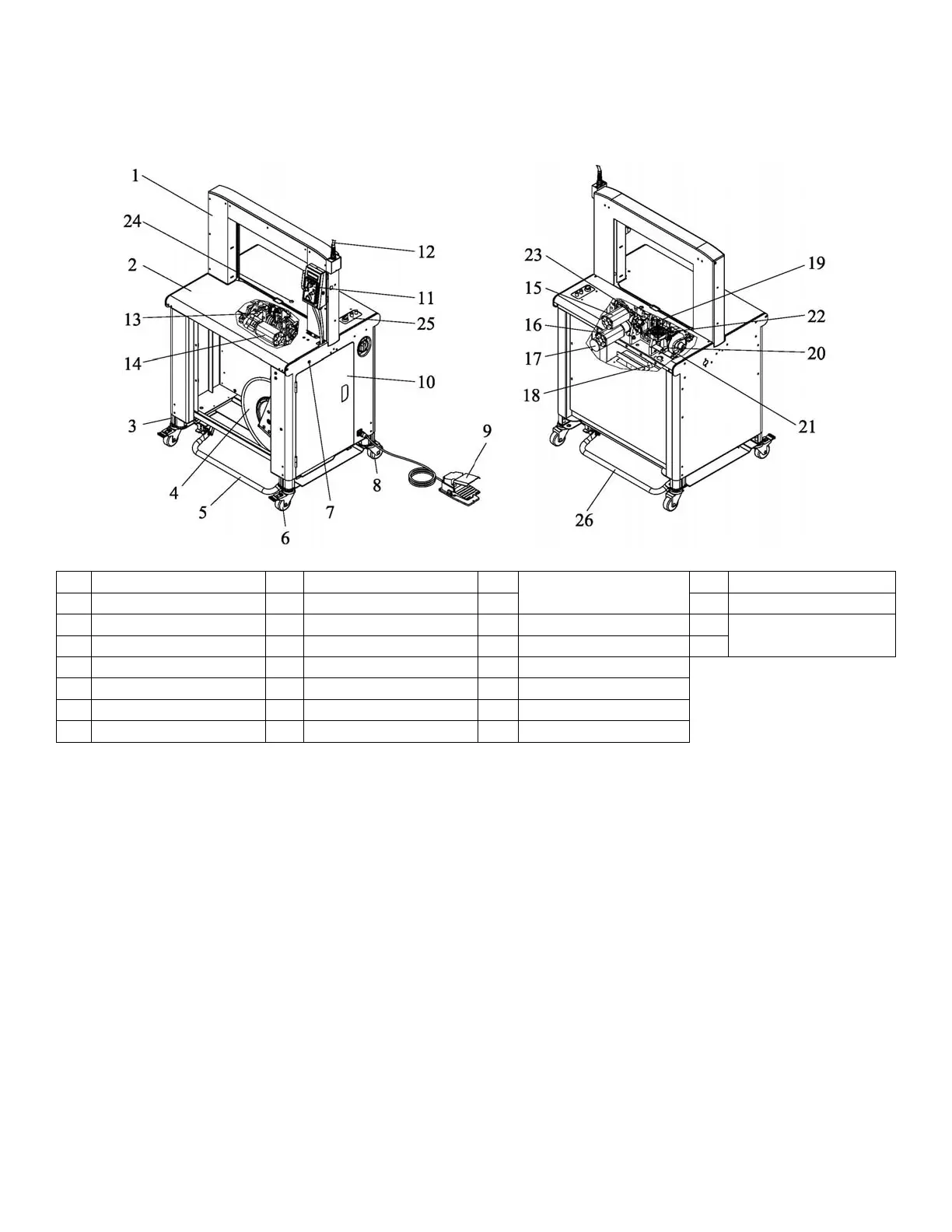

3.2 Machine Parts
1
Arch
9
Foot Pedal (option)
17
Strap Accumulator
Motor M4
24
Photo Eye (option)
2
Upper Table Front
10
Side Door
25
Timer Box (option)
3
Adjustment Leg
11
Control Panel
18
Auto Feed Mtr M5
26
Foot Bar (Rear)
(option)
4
Reel
12
Power Cord
19
Prox Sensor SP1
5
Foot Bar (Front)
13
Strap Head Unit
20
Prox Sensor SP2
6
Caster (Brake)
14
Main Motor M1
21
Prox Sensor SP3
7
Reel Brake Release
15
Feed Motor M2
22
Fan (M11)
8
Caster (Free)
16
Tension Motor M3
23
Heater
