5. Maintenance & Adjustments
5.5 Feed/Reverse Pressure Adjustment (continued)
Reverse Pressure Adjustment
The machine is already well set for proper reversing pressure. However, according to different strap
characteristics (such as smoother surface or different thickness), some adjustments for reversing pressure are
still necessary. If machine often has incomplete reversing problem, and it is a result of improper reversing
pressure, please do the following adjustments:

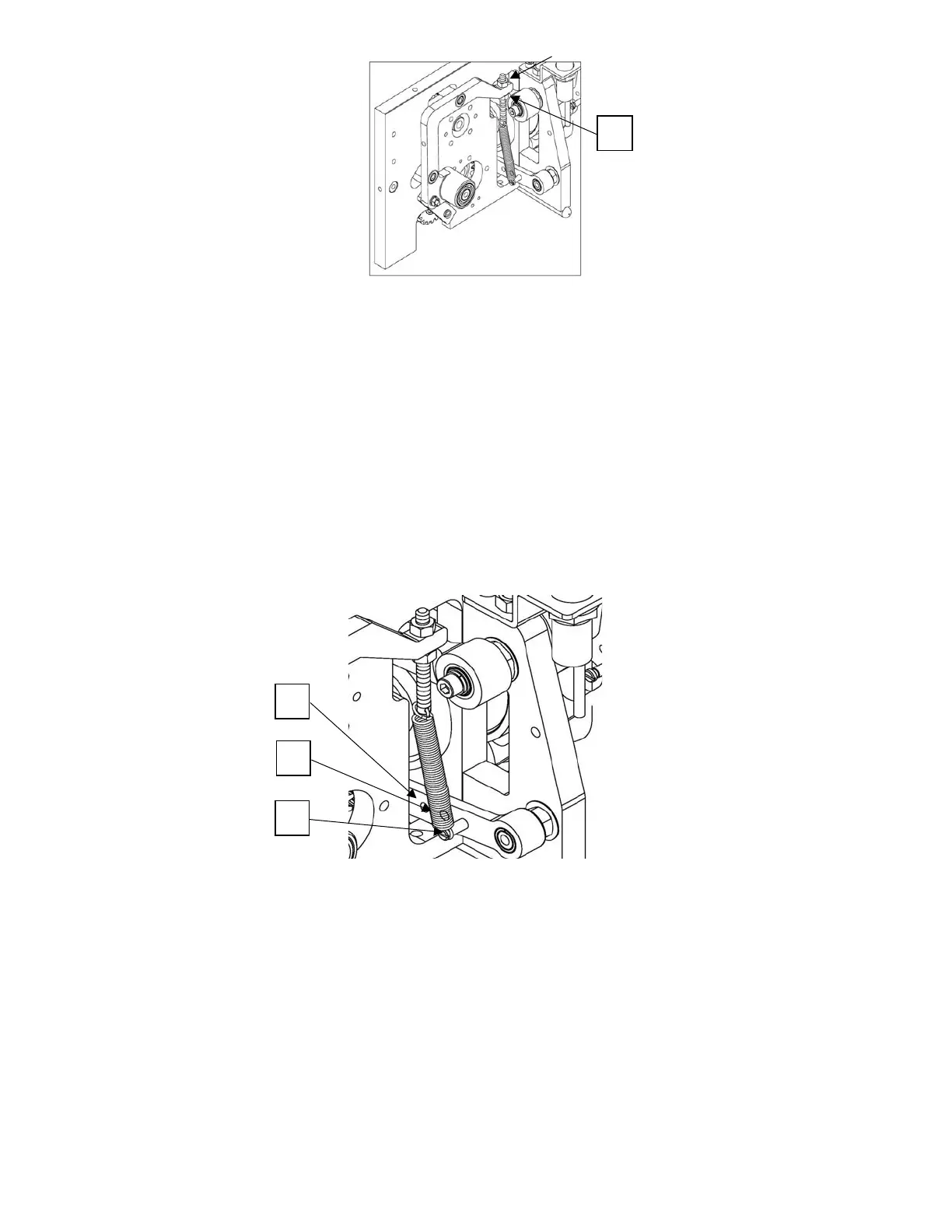

Take out the part (TA-073 Spring Hook) from C position to B or A position in order to increase the reversing
pressure.
5.6 Tensioning Rollers Adjustment
The machine is already well set for proper pressure for high tension. However, according to different
strap characteristics (such as smoother surface or different thickness), some adjustments on pressure
for high tension might be necessary.
When insufficient strapping tension occurs even the Soft-High tension switch is at “high” position and
it is a result of pressure for high tension, please turn Nut D clockwise. This can solve the problem of
insufficient strapping tension at high tension and strap slipping between A & B due to this.
B
A
B
C
