5. Maintenance & Adjustments
5.4 Strap Guide Adjustment (continued)

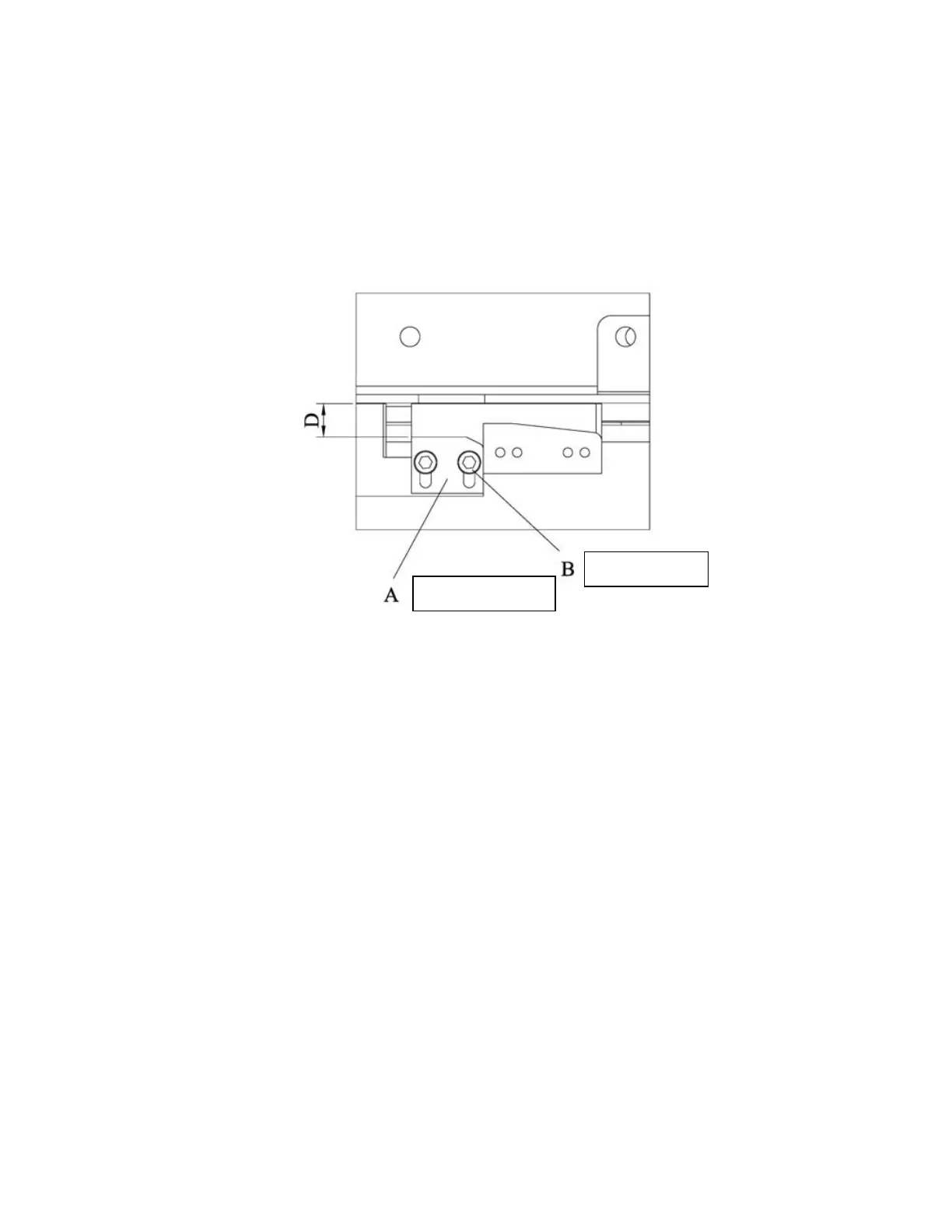

Right Strap Guide Adjustment
Loosen the screws on the “Right Strap Guide” and take it out. Then loosen the 2 screws B (HBS0408N)
and adjust A according to the strap. Be sure D is about 0.1mm wider than the strap. After adjustment,
tighten screws B and put the “Right Strap Guide” back.
Brush Clearance Adjustment
The brush clearance in the left side and upper left should be about the strap width. The brush
clearance in the upper right should be about 2-3mm narrower to the strap.
The brush clearance in upper side of right chute should be the same to the clearance in right side of
upper arch. The brush clearance in the lower right should be 4-5mm narrower to the strap.
HBS0408N
M7-2-201400
