6 Troubleshooting
6.1 LCD Display Messages
1. Reminder Messages
a. Push Start:
Please press the Start Switch to make machine
function. This is especially necessary after the
Safety Switch is released or after you just turn
on the machine.
b. Load Strap:
Load a new roll of strap or re-do the Auto Strap
feeding again.
c. B6 open; K1 open:
When it shows this message after you press the
Start Switch, it means the Safety Switch might
not be closed or the K1 in the control box is
abnormal.
2. Switch Malfunction
a. S1 Error:
This means the Start Switch or the Foot Pedal is
continuously triggered before activating them.
Please check if any of these 2 Switches is
defective.
b. S5 Error:
This means the Reel Release Switch is
continuously triggered before activating it. Try to
press it by hand to see if it’s defective.
c. SQ1 on Error
The SQ1 is triggered when doing Auto Strap
Feeding. Check if the SQ1 or the Switch lever is
defective.
d. SQ9 failure
Foot bar is not able to function properly and
cause it not able to go back to home position.
3. Procedural Malfunction
a. ASF failed:
Auto Strap Feeding failed. It might be caused by
wrong insertion direction or inserting too much
strap. Please re-do the Auto Strap Feeding.

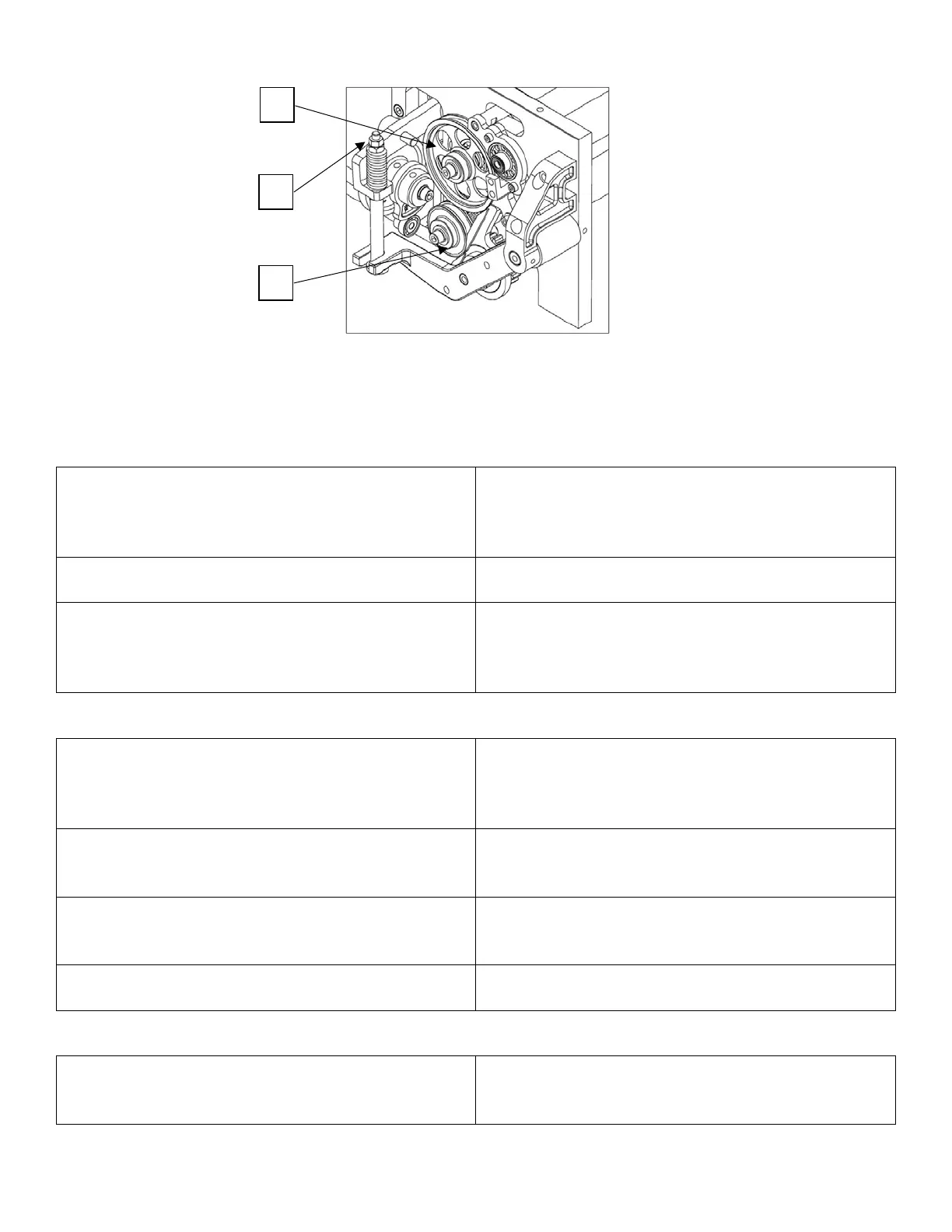

A
D
B
