- 23 -
5. Maintenance & Adjustments

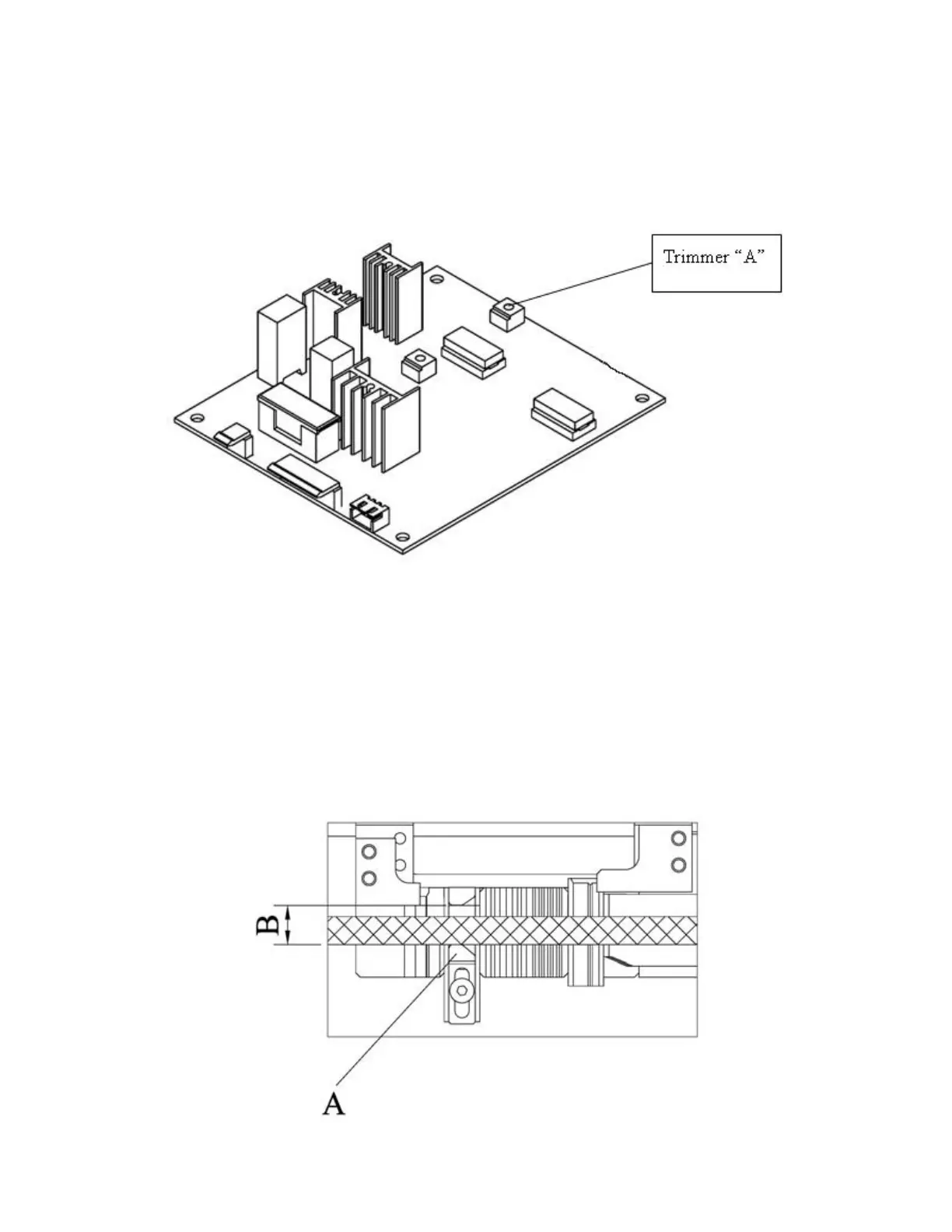

5.2 Heater Temperature Adjustment
To adjust the heater temperature, turn A clockwise to increase temperature and counterclockwise to
lower temperature.
5.4 Adjustment for Strap Width Change
Strap Guide Adjustment
Periodically the strap guide will need to be adjusted to ensure proper strap feeding. Adjust the guide
by moving A (Strap Guide) according to the strap and make sure the width B is approximately 0.5mm
(0.02in) wider than the strap.
