3. Machine Setup & Installation
3.5 Operational Space

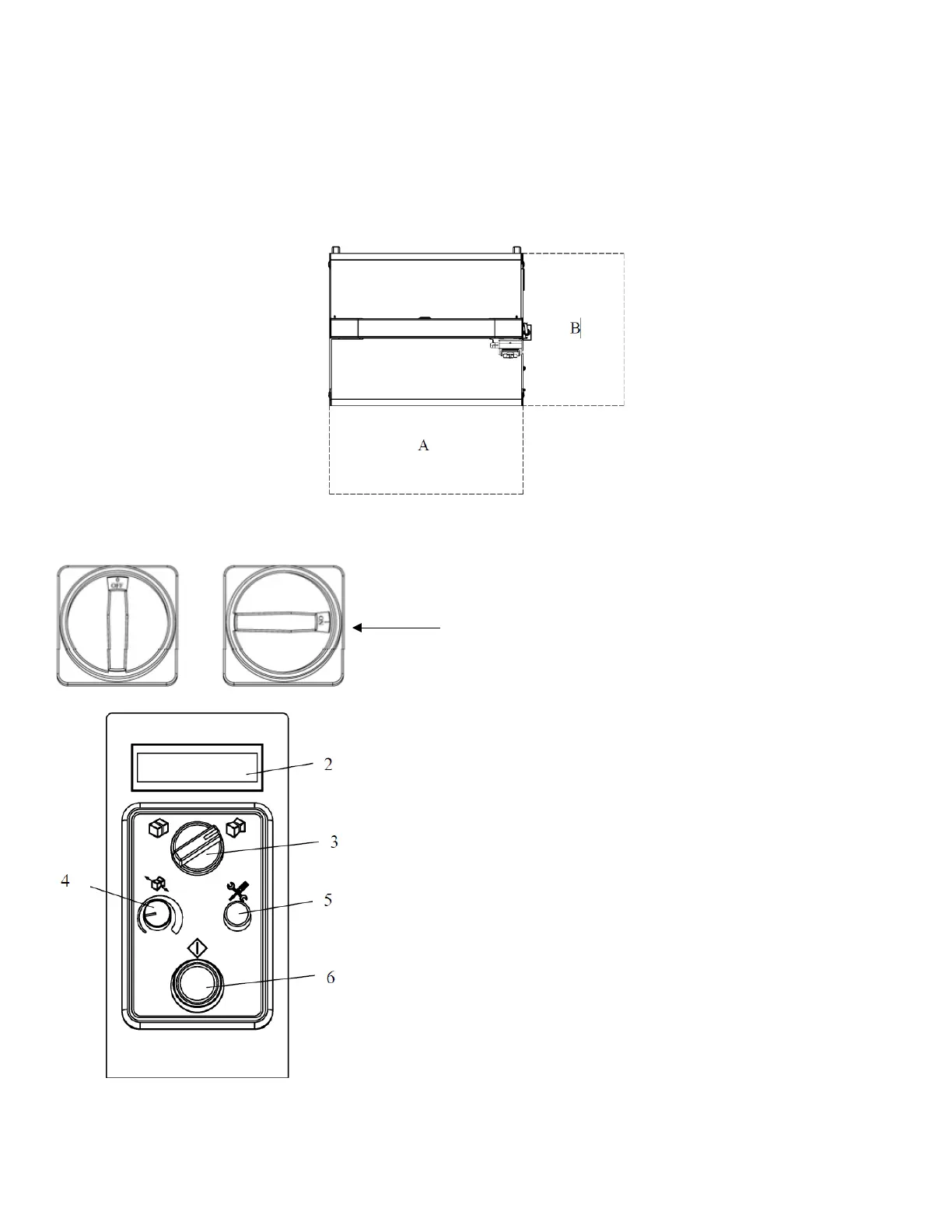

• Keep the area (A) and (B) free for the operator.
• The area (A) is necessary for operating strapping machine.
• The area (B) is necessary for changing the strap or adjusting strap amount in the accumulator.
3.6 Operating Elements
1. Main Power Switch – Provides the machine with power.
Switch to position “1” to turn on the power and to
position “0” to turn off the power.
2. LCD Display – Indicates the strapping condition of the
machine and displays any error messages.
3. Soft/High Tension Switch – Used to change strap tension
setting.
4. Strap Tension Adjustment – By turning the knob
clockwise, strap tension is increased and by turning the
knob counter-clockwise, strap tension is decreased.
5. Function Encoder – Rotate knob to change strapping
settings.
6. Start Switch – Used to start machine operation after
turning main power on. Also used to initiate a strapping
cycle or to clear a machine fault (reset).
