3. Machine Setup & Installation
3.9 Auto Strap Feeding Process (Continued)

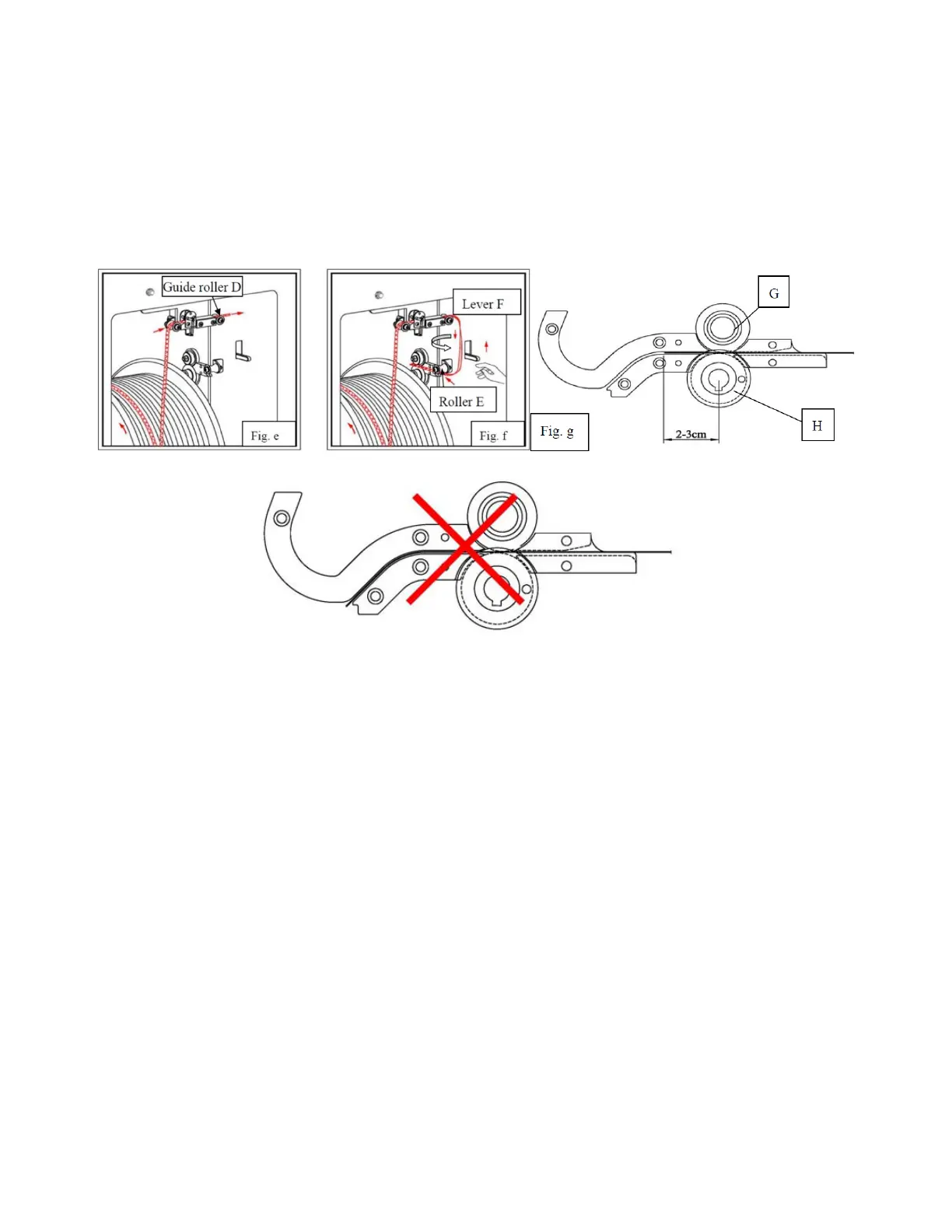

5. Keep threading the strap til the Guide Roller D (Fig. e)
6. Turning the strap downward and thread it to Roller E then to Roller G & Roller H (Fig. F & Fig g)
7. Lift Lever F and then thread the strap around 2-3mm ahead the rollers (Fig. g) then release
Lever F.
Note: If strap is fed more than 6cm ahead of the rollers, it could cause Auto Strap Feed to fail.
8. Close the side door and press the Start Switch. Machine will complete the feed in
approximately 5 seconds and will have strap fed to the sealing point.
While setting up the auto strap feed, the start switch will be the only functional control. The foot
switch and foot pedal switches will not function.
The edge of the strap must be free of burrs to avoid failure while setting up the auto strap feed.
