- 25 -
5. Maintenance & Adjustments
5.4 Strap Guide Adjustment (continued)

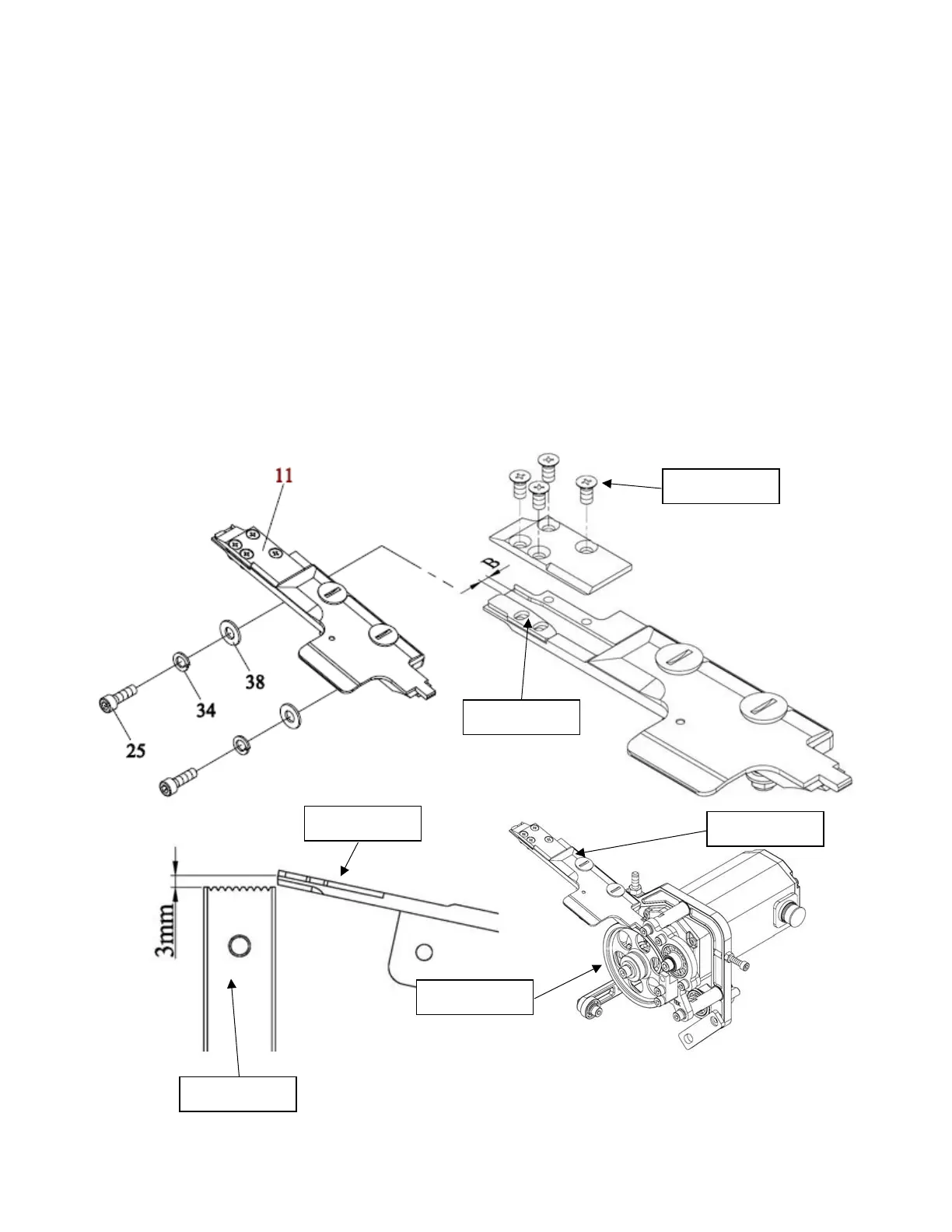

M7-1-311500 Adjusting Plate Adjustment
Loosen #25 HBS0412N×2 to remove #11 M7-1-310001 Upper Guide Assembly (For 5-6mm) from
the machine. Then loosen FMS0408×4 on it and take a piece of p.p. strap which would be running by
this machine for properly adjusting M7-1-311500 Adjusting Plate (Only 5-6mm). Make sure the width
B is around 0.5mm (0.02”) wider than the strap. After proper adjustment, tighten FMS0408×4 and
have M7-1-310001 Upper Guide Assembly (For 5-6mm) fixed back to the machine. While having M7-
1-310001 Upper Guide Assembly (For 5-6mm) fixed back to the machine, be sure its left side must be
around 3mm higher from Press Bar Assembly M7-1-220000. Also the right bottom side of M7-1-
310001 Upper Guide Assembly (For 5-6mm) should have some clearance between M7-1-301400
Guide Wheel (For 5-6mm). This clearance should not be wider than the strap’s thickness or strap
would probably slip out while doing Auto Strap Feeding.
To Next Page
