Eaton MGR10 User Manual

MGR10 A/B/C - Revision : I (for 7.0 software revision) 6

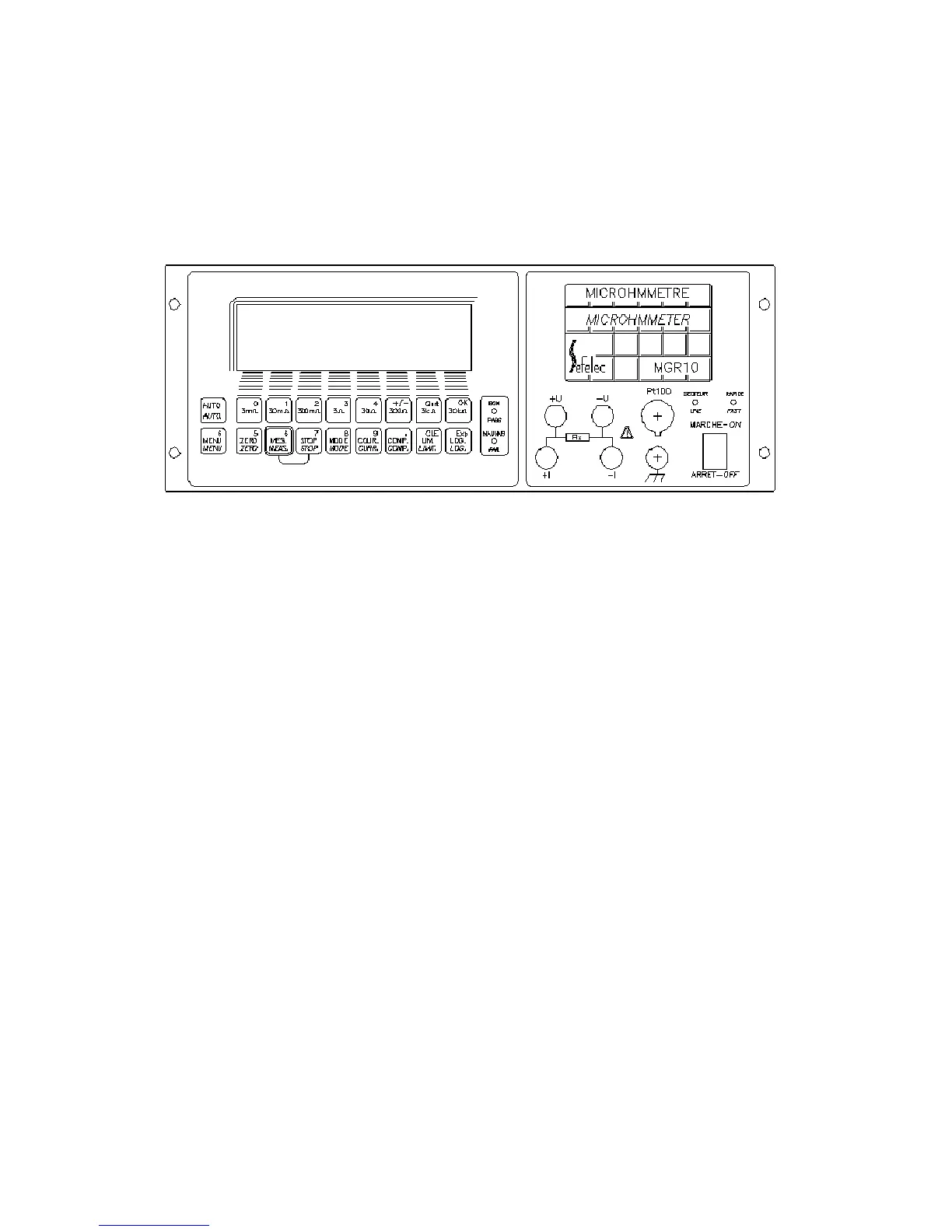

1.1 OVERVIEW
The MGR10 Microhmmeter is a high accuracy instrument designed for industrial and laboratory
resistance measurements.
Features include:
 Programmable measuring current user selectable in 100 steps
 Temperature Compensation
 Hi/Lo Limits with red/green front panel warning Pass/Fail lamps
 Switched current mode with automatic averaging ensures elimination of thermal emf errors
 Large graphic LCD display for resistance measurement values as well as configuration
settings and statistical results
 Advanced functions include data logging and statistical reporting with max/min, average
values peak to peak values and standard deviation
 Analogue output, IEEE-488 and RS232 communication, and PLC interfaces available for
automated monitoring and controlling applications
 Rear panel terminals available as an option
