VE-1010 Veterinary PC ECG User Manual Operation Instructions for Resting ECG
- 31 -

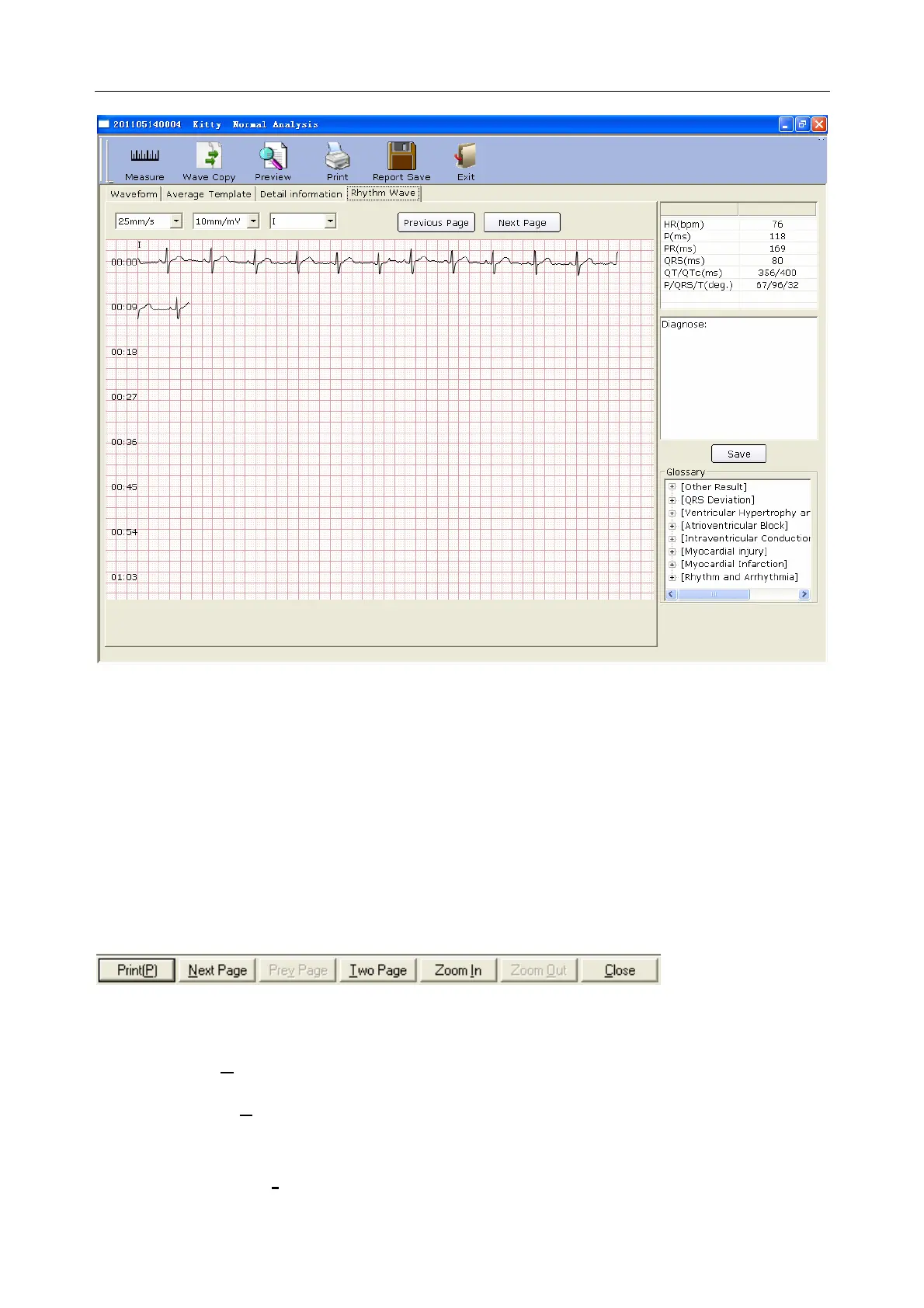

Figure 6-9 Normal ECG - Rhythm Wave Interface
You can click on Previous Page or Next Page to display the waves of the previous or next page.
Click on one point on the wave, and then drag the mouse to another point. The section of wave
you select will be printed.
6.5.1.5 Previewing Normal ECG
Click on the Preview button to display the normal ECG preview interface.
is the toolbar on the normal ECG preview interface.
1. Click on the Next Page button on the toolbar to switch to the next preview page.
2. Click on the Two Page button on the toolbar to preview two pages on one screen
simultaneously.
3. Click on the Zoom In button on the toolbar to magnify the preview page.
