VE-1010 Veterinary PC ECG User Manual Operation Instructions for Resting ECG
- 30 -
6.5.1.3 About the Detail Information Interface
Click on the Detail information tab on the normal ECG analysis interface to open the detail
information interface. This interface displays lead parameter values as Figure 6-8 shows.

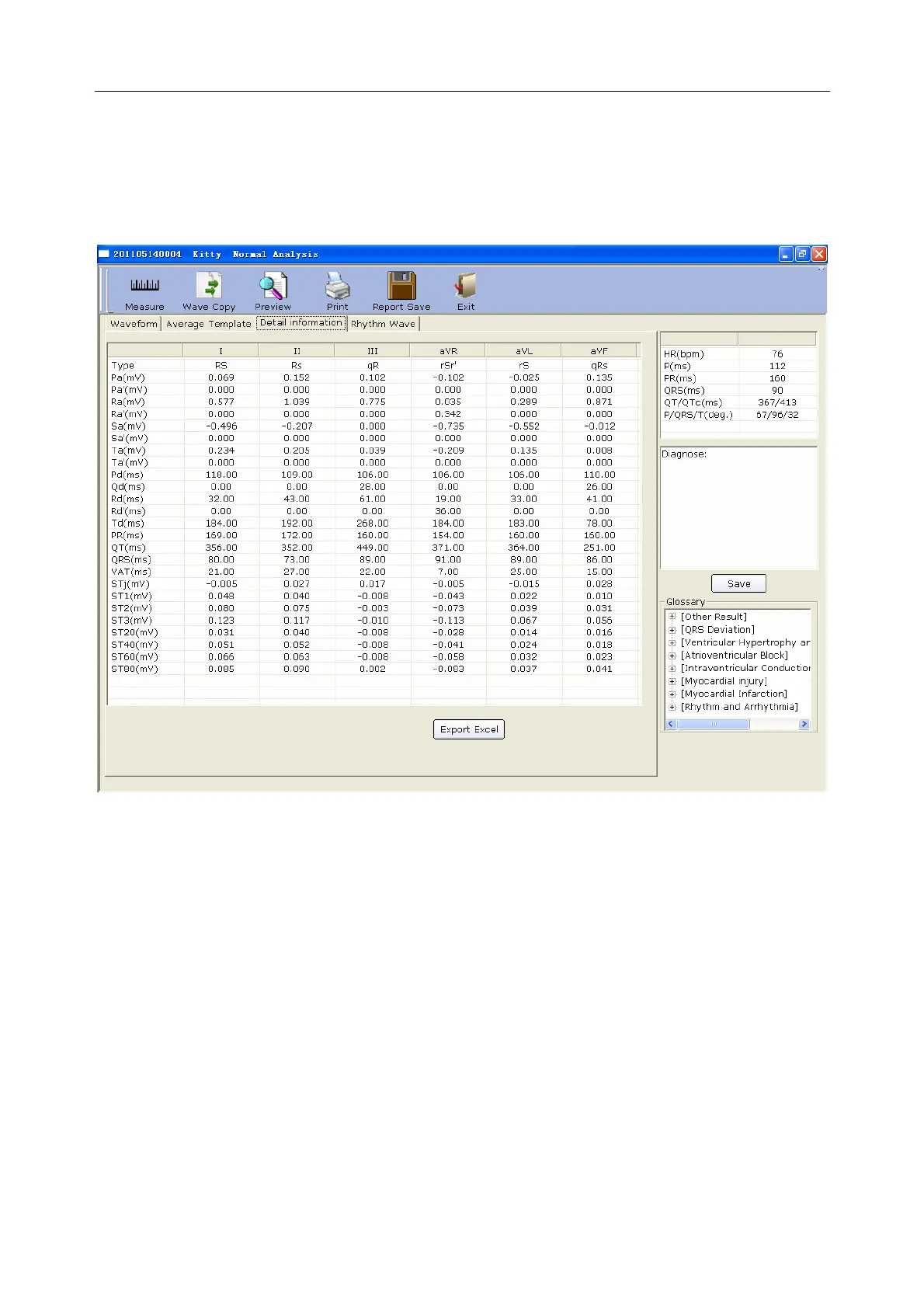

Figure 6-8 Normal ECG - Detail Information Interface
Click on the Export Excel button to export an Excel file.
To Edit Diagnosis Result on the Detail Information Interface
For details, refer to Section 6.5.1.1, “Viewing the Waveform”.
6.5.1.4 About the Rhythm Wave Interface
Click on the Rhythm Wave tab on the normal ECG analysis interface to open the rhythm wave
interface. You can set the gain, the speed and the lead of the displayed ECG waves.
