2-
2

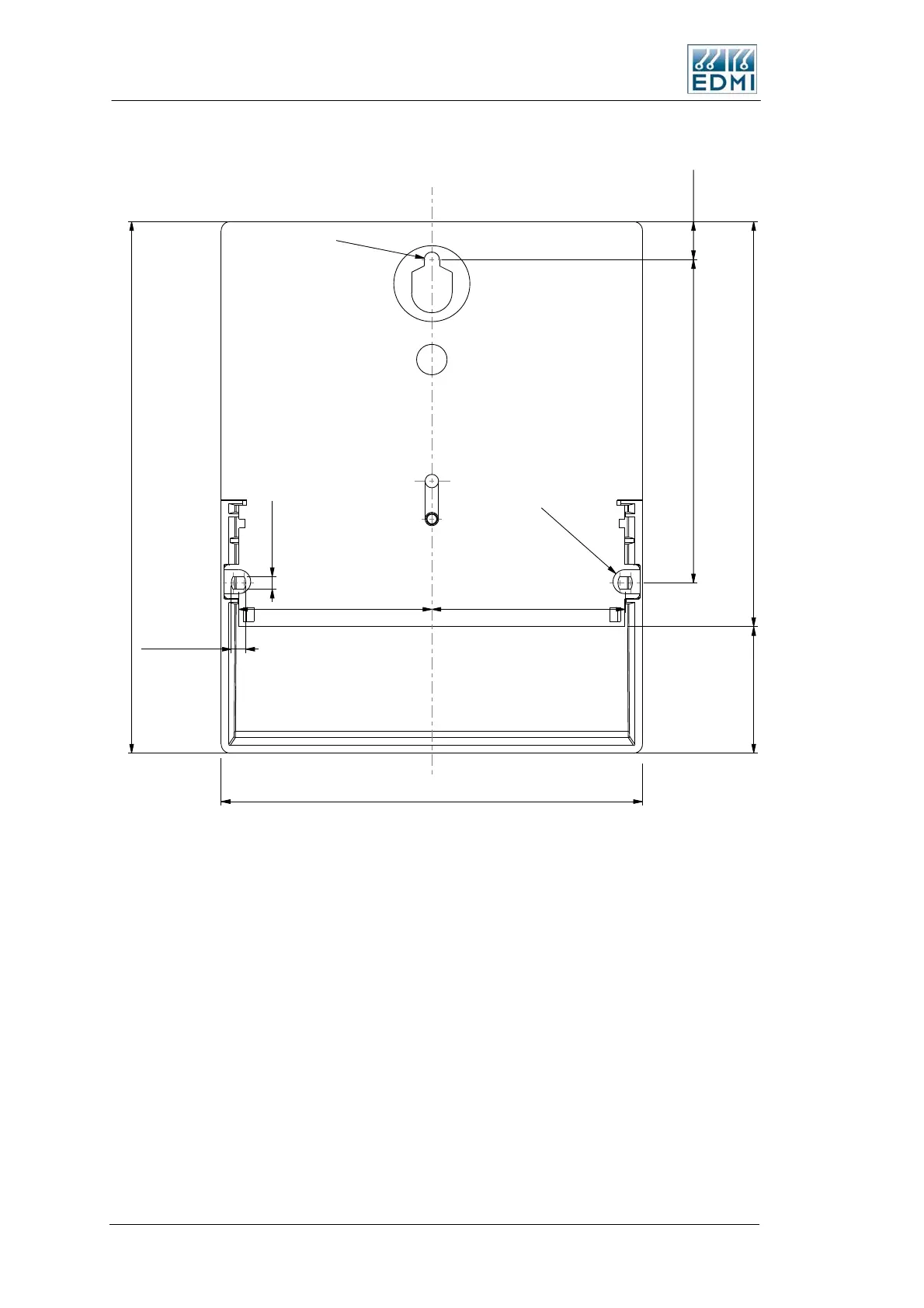

This is a view from the back of the meter (Figure 2-2).
.0015
R.003
R(2X)4,75
.00(2X)5
166
160
50
210
5.70(2X)
127,75
76,18
76,18
Figure 2-2 Mounting points, standard terminal cover
Note that the dimension R4.75 is of the standoff, not of the hole. The lower mounting
holes are oblong rather than round, to allow some adjustment in the meter position. The
76.18 mm dimension is to the centre of this hole.
All dimensions are in mm.
2-2 EDMI Atlas Hardware Reference Manual
