EDMI Atlas Mk10 User Manual

Under the Meter Lid
2-1
3

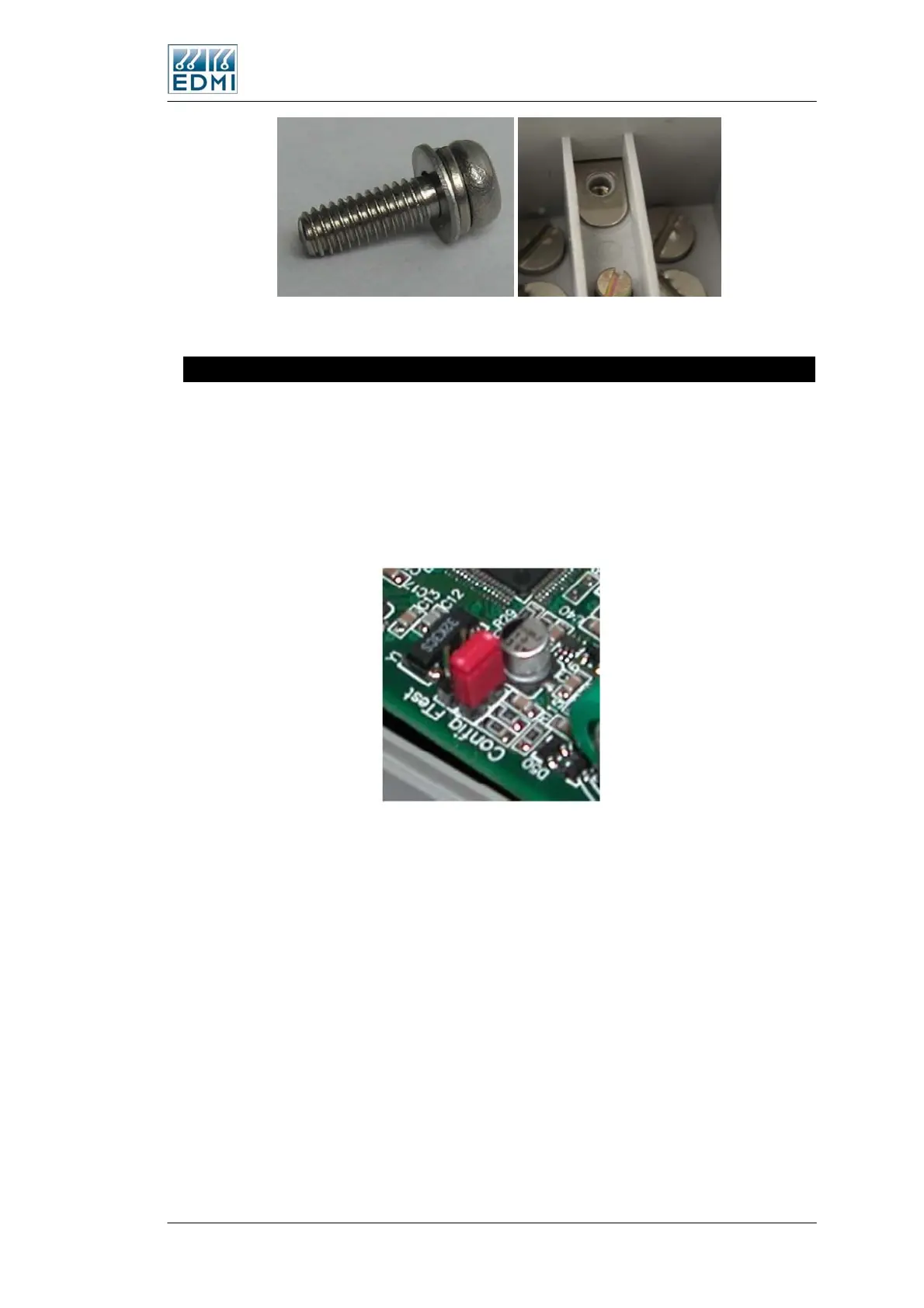

• Figure 2-16 The removed screw and disconnected link
Config Jumper
The Config jumper offers a level of hardware security to the meter – the jumper needs to
be fitted to allow calibration and recovery of lost passwords. The jumper is located
under the meter lid, half way up the far left side of the circuit board (Figure 2-17). A
jumper is fitted across the bottom set of pins marked Config. The top set of pins marked
FTest are for factory use only.
In the Mk10A the jumper is located above the LCD screen towards the right hand side.
• Figure 2-17 Location of the Config jumper
The Mk10 Meter 2-13
