2-2
LCD/Select Button
The LCD is primarily for displaying information from the meter’s registers for meter
readers. It is also useful during installation, configuration, and diagnosing problems. It
has 8 seven-segment digits to display values and 7 (6 for Mk10A) seven-segment digits
to display description (Figure 2-20, see Chapter 7 ‘LCD Display’ for other variants). It
has arrows to indicate import and export for active and reactive energies, indicators for
phase voltage, indicators for display sets A and B, battery indicator, connection type
indicator for connection through local or remote port and units and multipliers.
The LCD can come with or without a backlight. The backlight may be set to only
activate while the LCD is in use, which is recommended to reduce power consumption.
The turn on time of the backlight can be configured using EziView. The backlight does
not operate when running on the UPS battery.

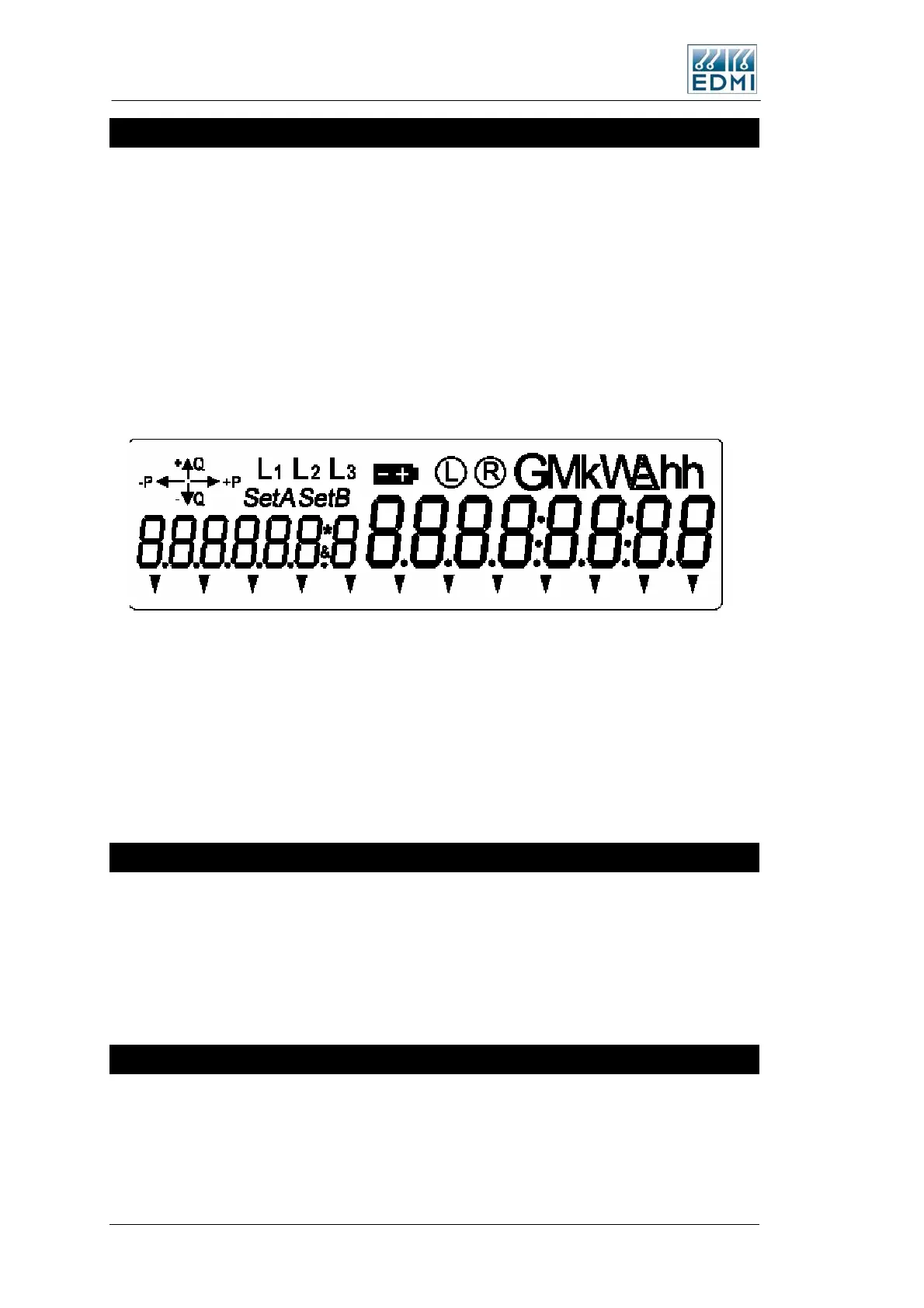

• Figure 2-20 Mk10 LCD with all segments turned on
To progress to the next page, press the Select button. Each time the button is pressed the
display moves to the next page. The display may also be setup to automatically cycle
the display through the pages, pausing if the Select button is pressed.
For more detailed information on the LCD and Select button see Chapter 7: “LCD
Display”.
Billing Reset Button
The Billing Reset button is the top of the two pushbuttons beside the display. The push
button has a 2.5mm diameter hole through it, allowing it to be sealed using standard
sealing wire. EziView can disable the push button - go to Security Setup and check the
Billing Reset Button Disabled checkbox.
Servicing
The meter is not designed for field servicing and has no user serviceable parts. The
meter has no internal fuses. In the event of failure of the meter, contact EDMI or your
local agent for servicing.
2-22 EDMI Atlas Hardware Reference Manual
