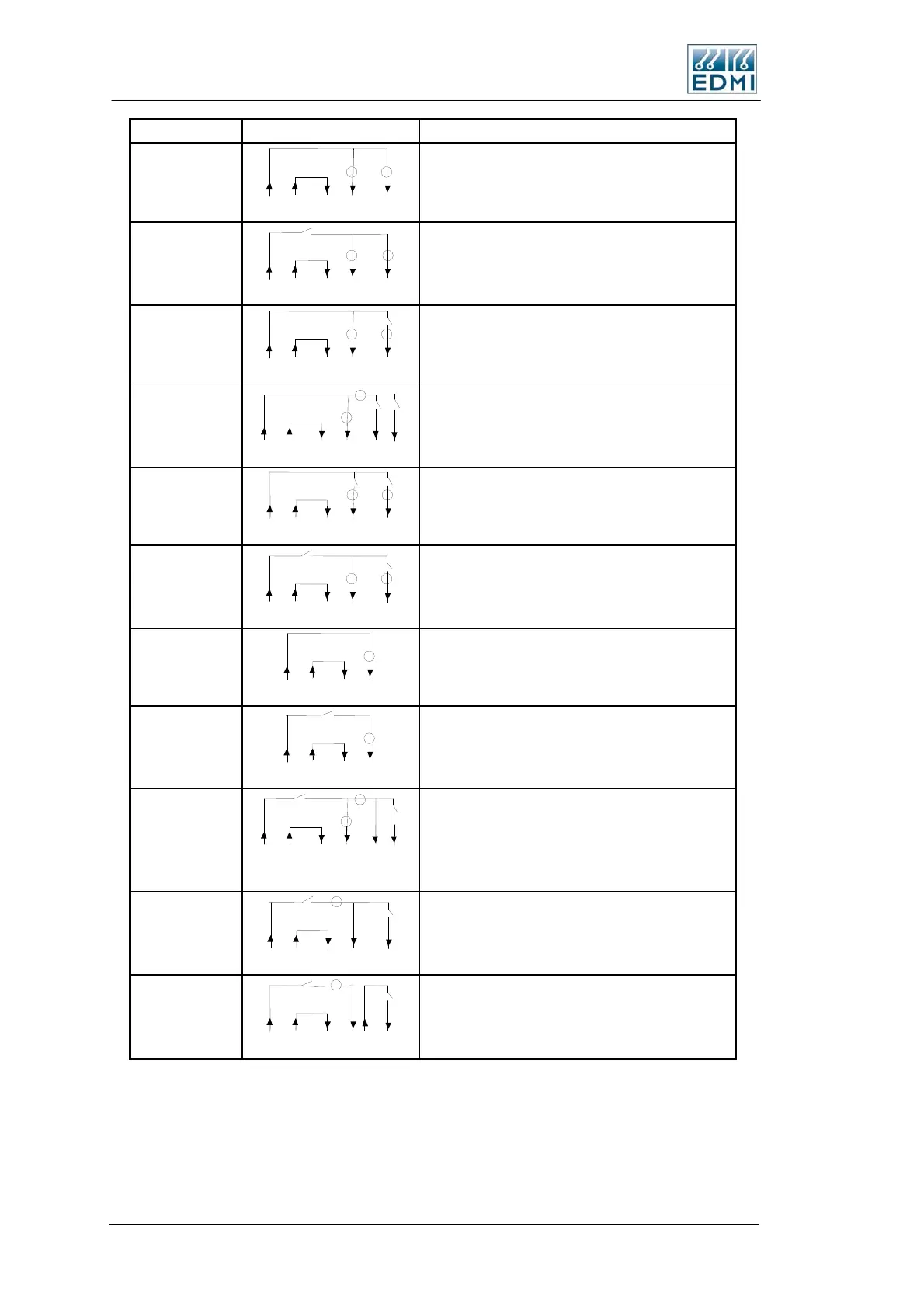

Configuration Diagram Description
1
Ia In In L1 L2
2 Element
L1 = Main Circuit Load 100A
L2 = Load Circuit Load 60A
2
Ia In In L1 L2
2 Element with 100A Main Disconnect
L1 = Main Circuit Load 100A
L2 = Load Circuit Load 60A
3
Ia In In L1 L2
2 Element with 60A load control
L1 = Main Circuit Load 100A
L2 = Load Circuit Load 60A
4
Ia In In L1 L3 L2
2 Element with 2x 60A load control outputs
L1 = Main Circuit Load 100A
L2 = Load Circuit Load 60A
L3 = Load Circuit Load 60A
5
Ia In In L1 L2
2 Element with 100A Disconnect and
60A load control
L1 = Main Circuit Load 100A
L2 = Load Circuit Load 60A
6
Ia In In L1 L2
2 Element with 100A Main Disconnect and
60A load control
L1 = Main Circuit Load 100A
L2 = Load Circuit Load 60A
7
Ia In In L1
1 Element
L1 = Main Circuit Load 100A
8
Ia In In L1
1 Element with 100A Main Disconnect
L1 = Main Circuit Load 100A
9
Ia In In L1 L3 L2
2 Element with 100A Main Disconnect and
60A load control + unswitched load
L1 = Main Circuit Load 100A
L2 = Load Circuit Load 60A Switched
L3 = Load Circuit Load 60A Unswitched
10
Ia In In L1 L2
1 Element with 100A Main Disconnect and
60A load control
L1 = Main Circuit Load 100A
L2 = Load Circuit Load 60A Switched
11
Ia In In L1L3 L2
1 Element with 100A Main Disconnect and
separate 60A load control
L1 = Main Circuit Load 100A
L2, L3 = Load Circuit Load 60A Switched
• Table 4-3 Configuration options
While the meter only has 1 measurement element for voltage, the meter has up to 3
measurement elements for current. The primary element I
1
is referred to as Main. The
secondary element I
2
is referred to as Load. The third element measures the Neutral
Current, and is referred to as Neutral. Total is the sum of Main and Load.
