Beneath the terminal cover (accessible by removing the two sealable screws on the top
of the terminal cover) is the terminal block for voltage and current, connectors for the
pulsing inputs and outputs (optional), the optional RS-232 or RS-485 interface, and the
optional external battery
The sealable screws have 2.15mm diameter holes to accommodate standard sealing
wire.
Under the Terminal Cover
Most of the connections to the meter occur under the terminal cover. Figure 6-4 shows
the terminals available on a 4 I/O / RS-232 meter.

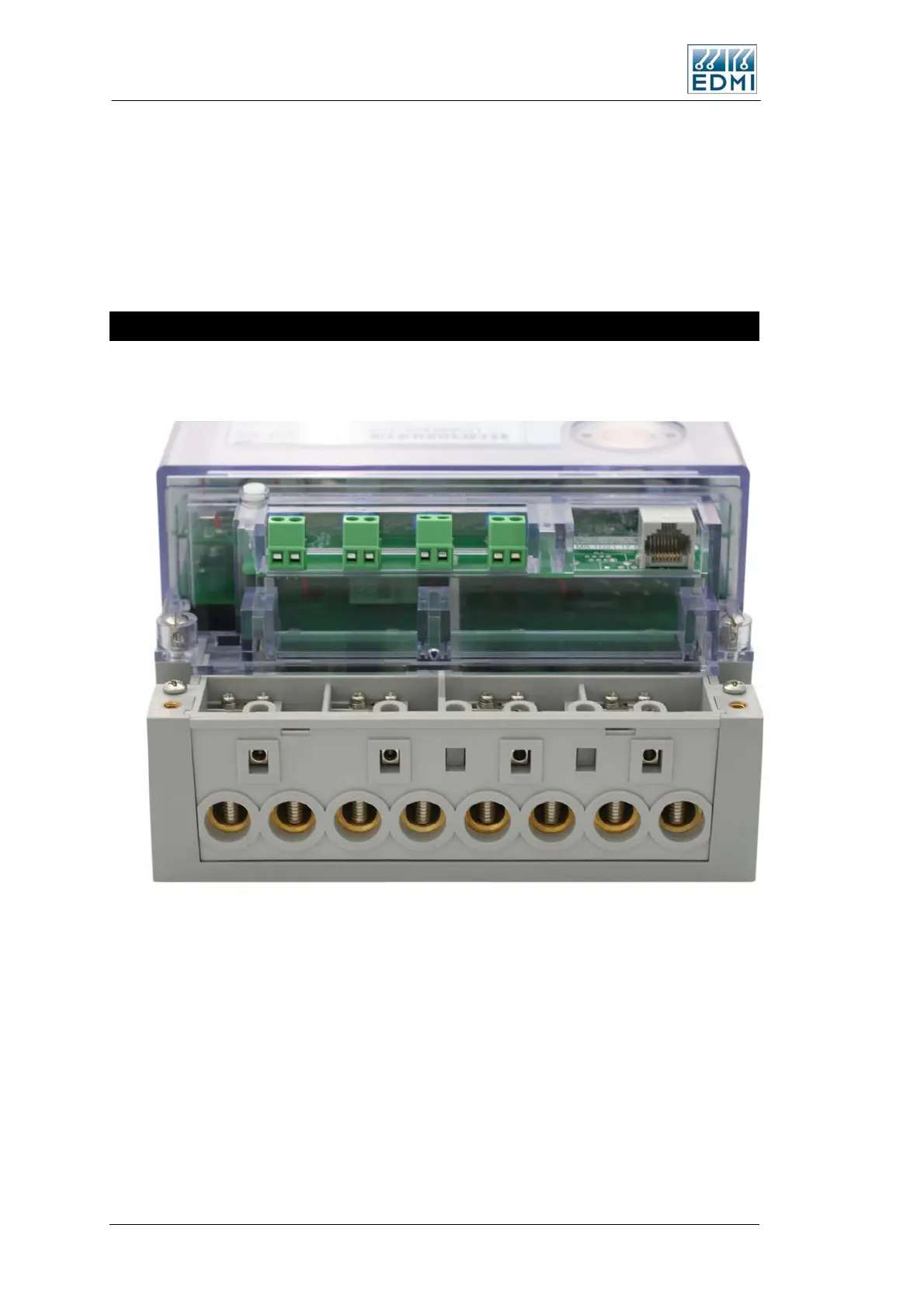

Figure 6-4 Under the terminal cover of the meter
Diagrammatically, this is shown in Figure 6-5 with the terminal block numbering.
6-4 EDMI Atlas Hardware Reference Manual
