Introduction

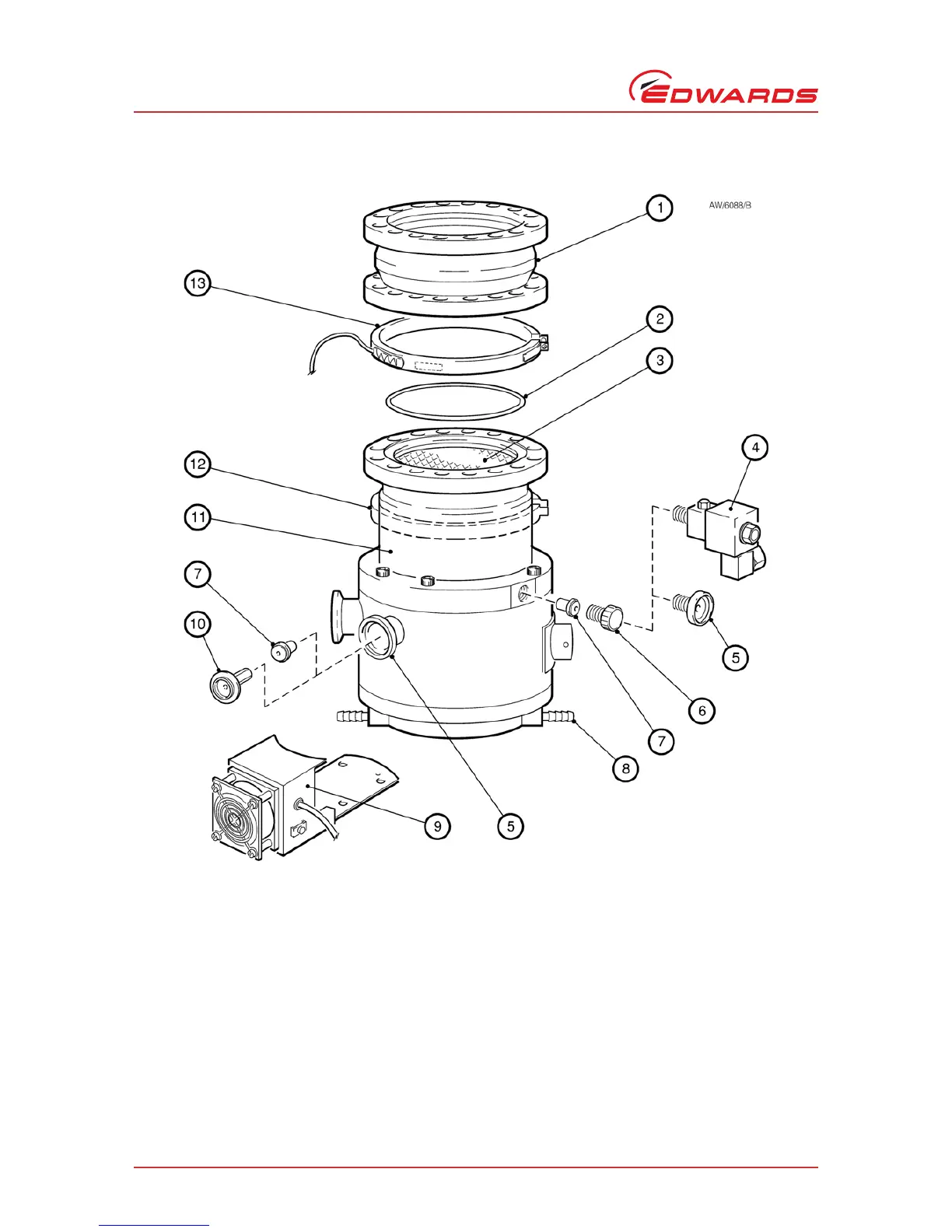

Figure 2 - Accessories for other EXT pumps (EXT250M pump shown)
1. Vibration isolator
2. Inlet-flange seal
*
3. Inlet-screen
*
4. Solenoid vent-valve
5. Vent-port adaptor
6. Manual vent-valve
*
7. Vent-restrictor
†
8. Water-cooler
‡
*
Supplied with/fitted to the
pump: refer to the instruction
manual supplied with your EXT
pump.
9. Air-cooler (design varies with pump)
10. Purge-restrictor (C-model pumps only)
*
11. EXT pump
12. Bakeout band position
13. Bakeout band (design varies with pump)
†
VRX10 vent-restrictor: supplied fitted to
the vent-port and purge-port of EXT250M
pumps only.
‡
Supplied fitted to all pumps, except for
EXT555H pumps: refer to the instruction
manual supplied with your EXT pump
