Edwards EXT70 - ACX250 Air-Cooler Installation (Shown Fitted to EXT250 M Pump)

© Edwards Limited 2008. All rights reserved. Page 15
Edwards and the Edwards logo are trademarks of Edwards Limited.
ACX air-cooler
B580-65-880 Issue G

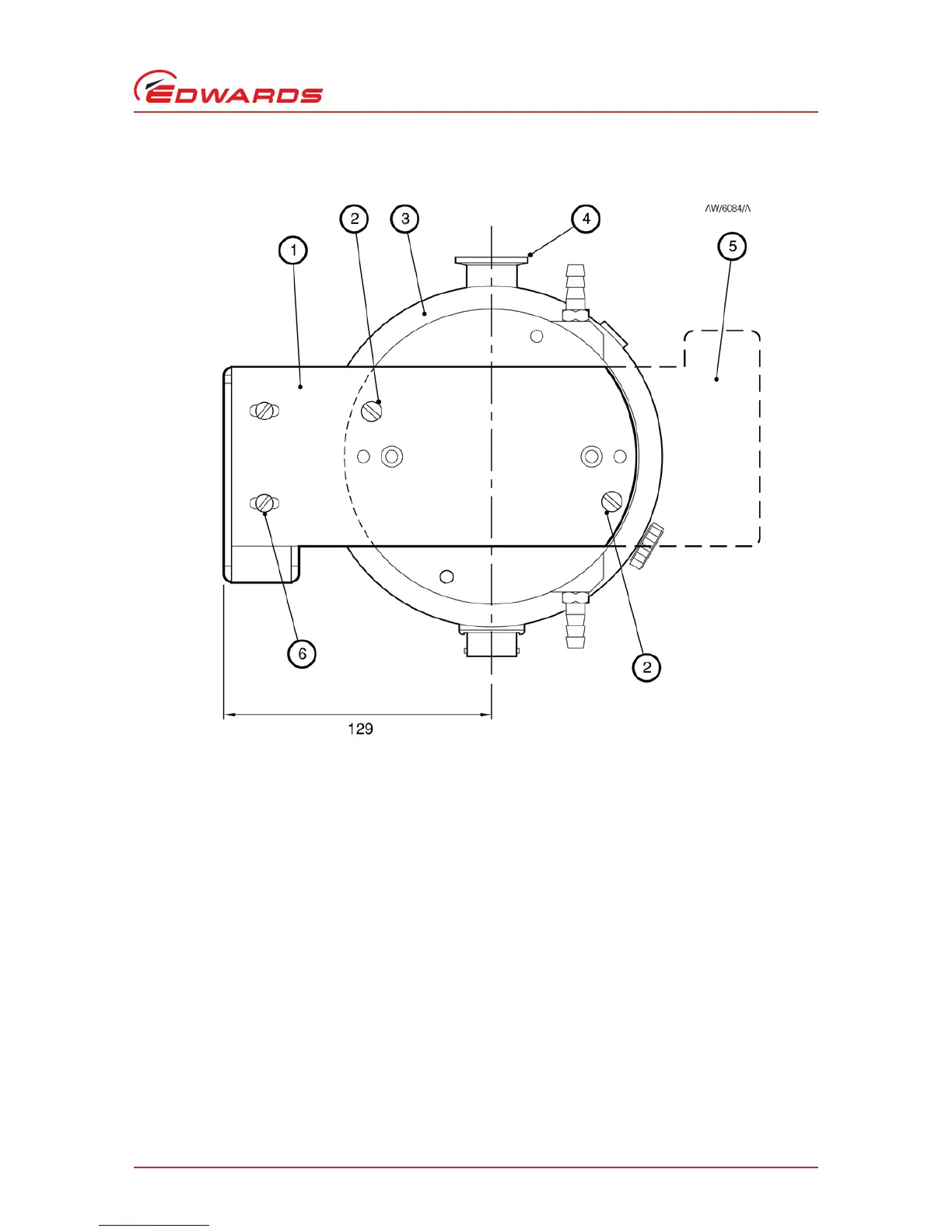

Figure 8 - ACX250 air-cooler installation (shown fitted to EXT250M pump)
1. ACX250 mounting bracket
2. Fixing screws: M5 x 5 (2 off)
3. EXT250M pump-base
4. Pump outlet-port
5. Alternative mounting position
6. Fan/bracket fixing screws: M5 x 5 (2 off)
