Edwards EXT70 - ACX555 Air-Cooler Installation (Shown Fitted to EXT555 H Pump)

© Edwards Limited 2008. All rights reserved. Page 27
Edwards and the Edwards logo are trademarks of Edwards Limited.
ACX air-cooler
B580-65-880 Issue G

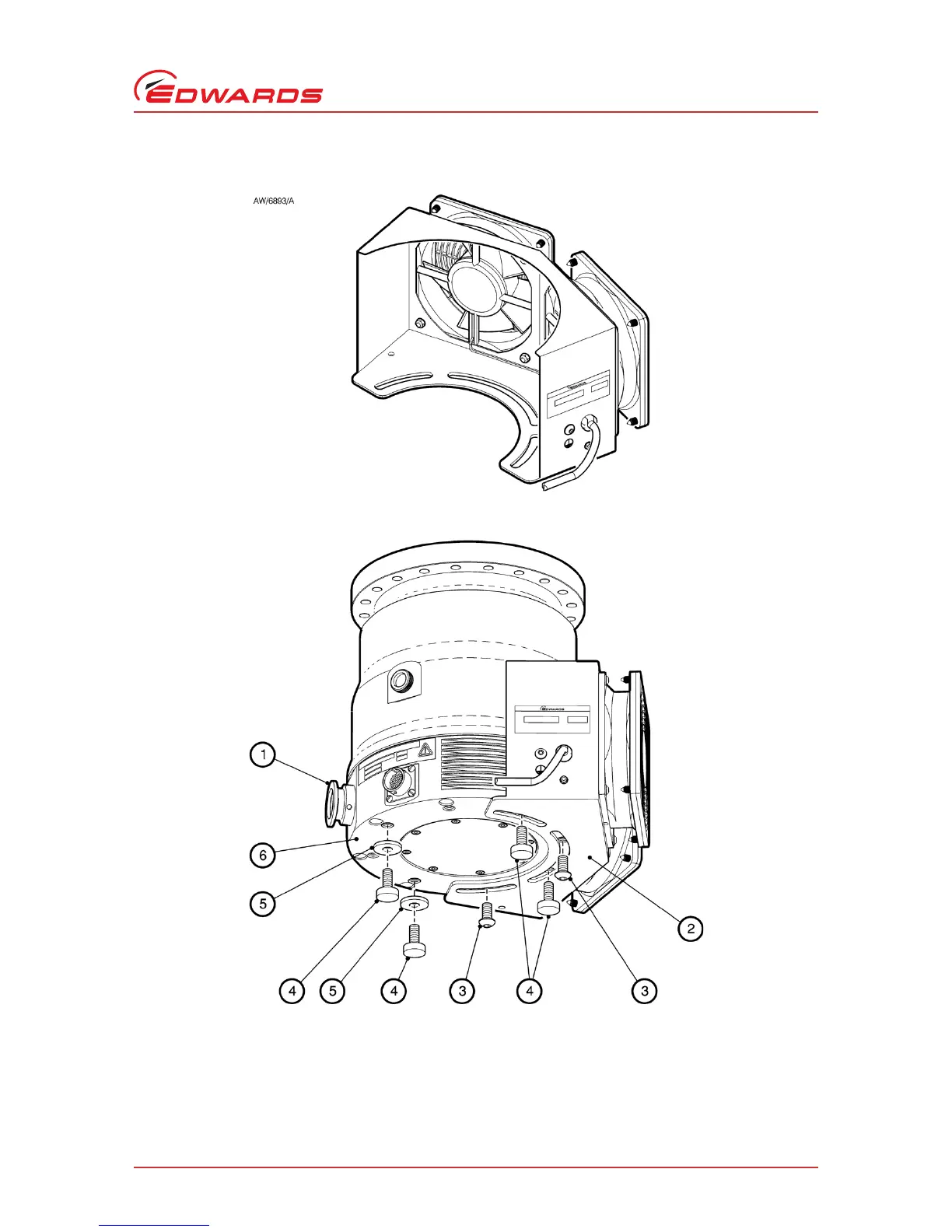

Figure 20 - ACX555 air-cooler installation (shown fitted to EXT555H pump)
1. Pump backing-port
2. ACX555 air-cooler
3. Screws: M8 x 25 (2 off)
4. Pump mounting feet (4 off)
5. Spacers (4 off)
6. EXT555H pump-base
