Edwards EXT70 - ACX400 Axial and Radial Air-Cooler Combination Installation

© Edwards Limited 2008. All rights reserved. Page 23
Edwards and the Edwards logo are trademarks of Edwards Limited.
ACX air-cooler
B580-65-880 Issue G

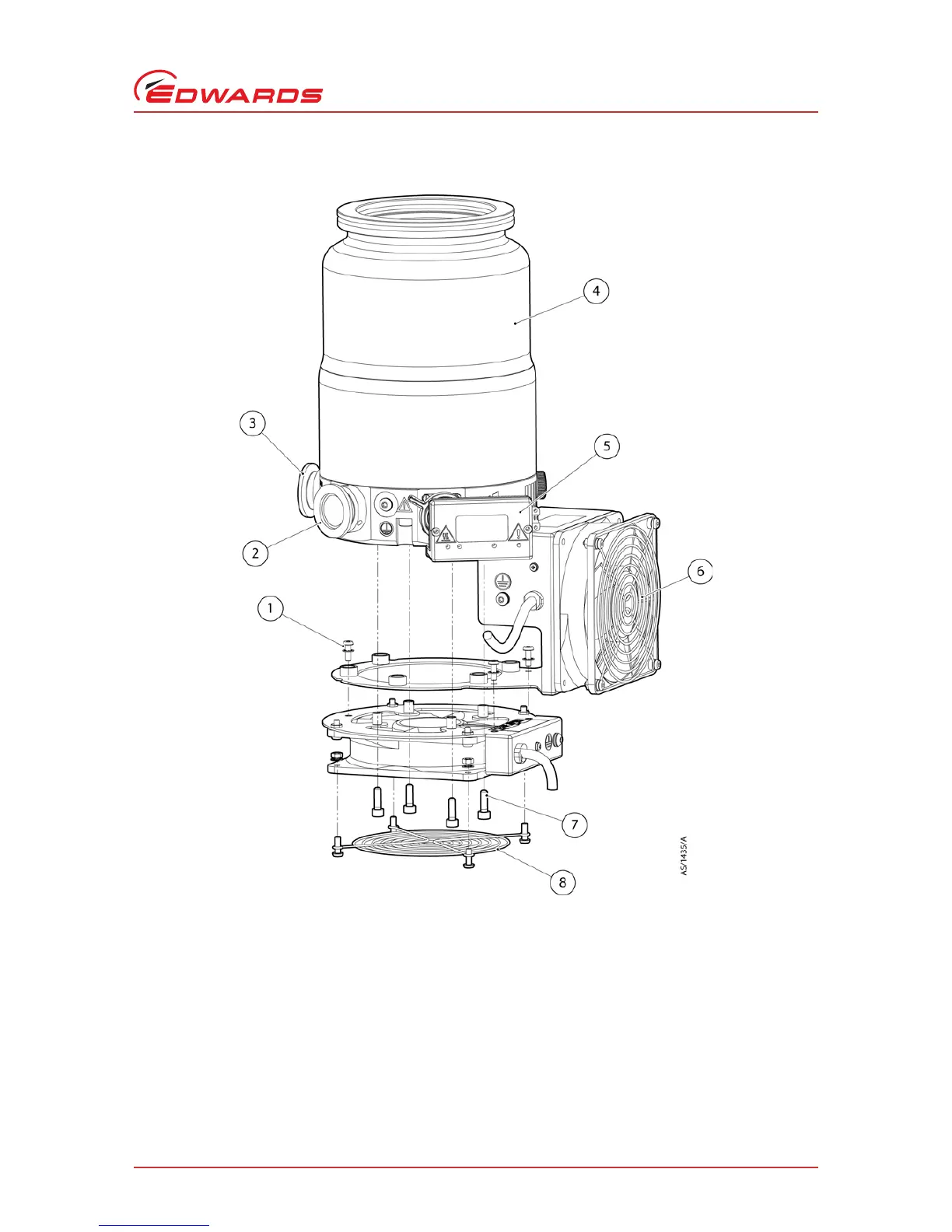

Figure 16 - ACX400 axial and radial air-cooler combination installation
1. Fan-fan assembly fixings (M4 x 12) x 3
2. Pump backing port
3. Pump booster port
4. EXT406PX
5. EXDC drive module
6. ACX400 air-cooler
7. Assembly-body fixings (M8 x 30) x 4
8. Removable protective grill
