Installation
B722-40-880 Issue F

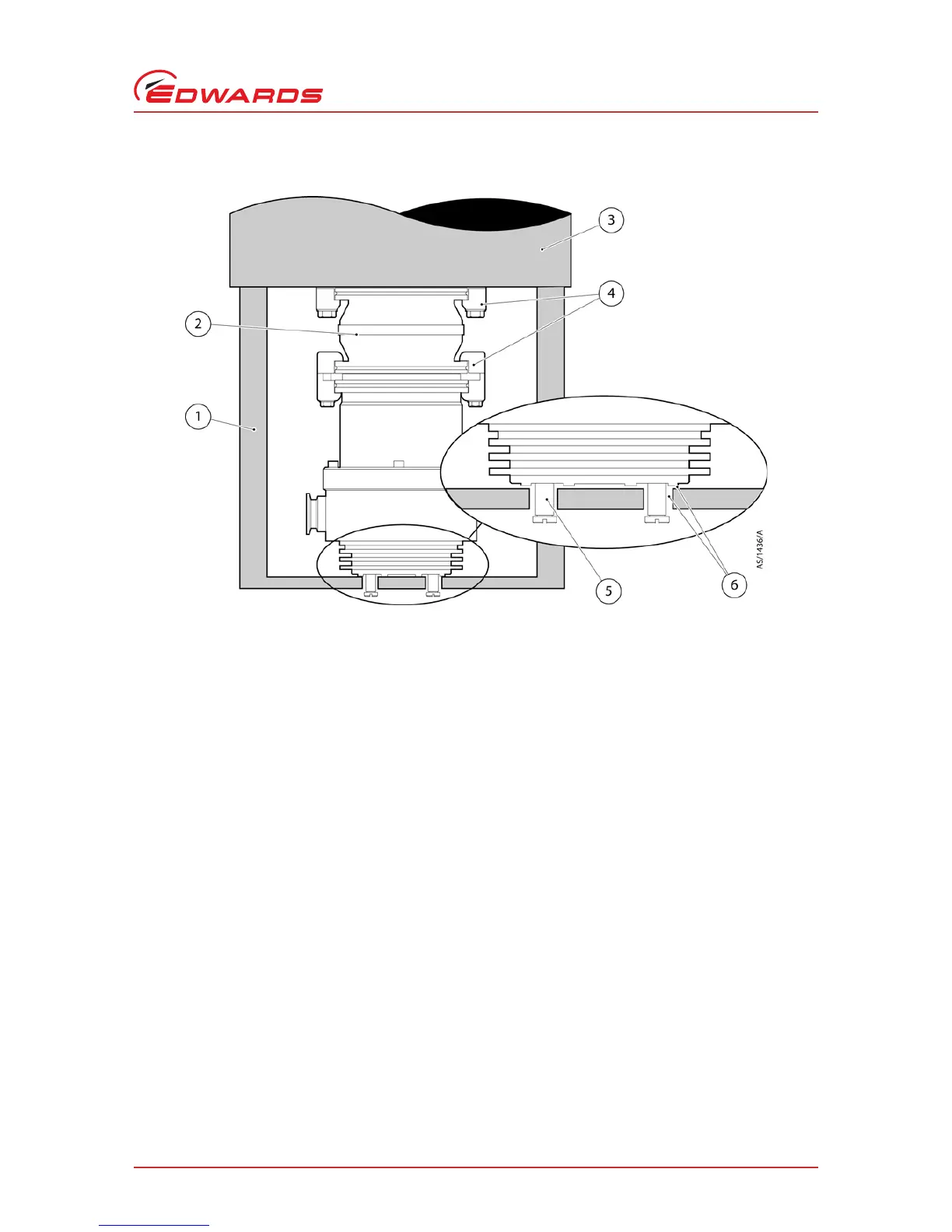

Push reinforced hose (approximately 6 mm internal diameter) over the ends of the riffled hose connectors on the
water cooler on the pump. Attach the hose with strong hose clips and make sure that they are tightened securely.
Alternatively, unscrew the riffled hose connectors and remove them from the water cooler and make direct
connections to the 1/8 inch BSP female threaded fittings on the water cooler.
To avoid breaking the cooling water circuit when removing the pump for maintenance, unscrew the two M4 fixing
screws and remove the water cooler from the pump. Make sure there is a layer of thermal contact grease on the
water cooler before refitting it to the pump.
