© Edwards Limited 2013. All rights reserved. Page 11
Edwards and the Edwards logo are trademarks of Edwards Limited.
Technical data
B722-40-880 Issue F

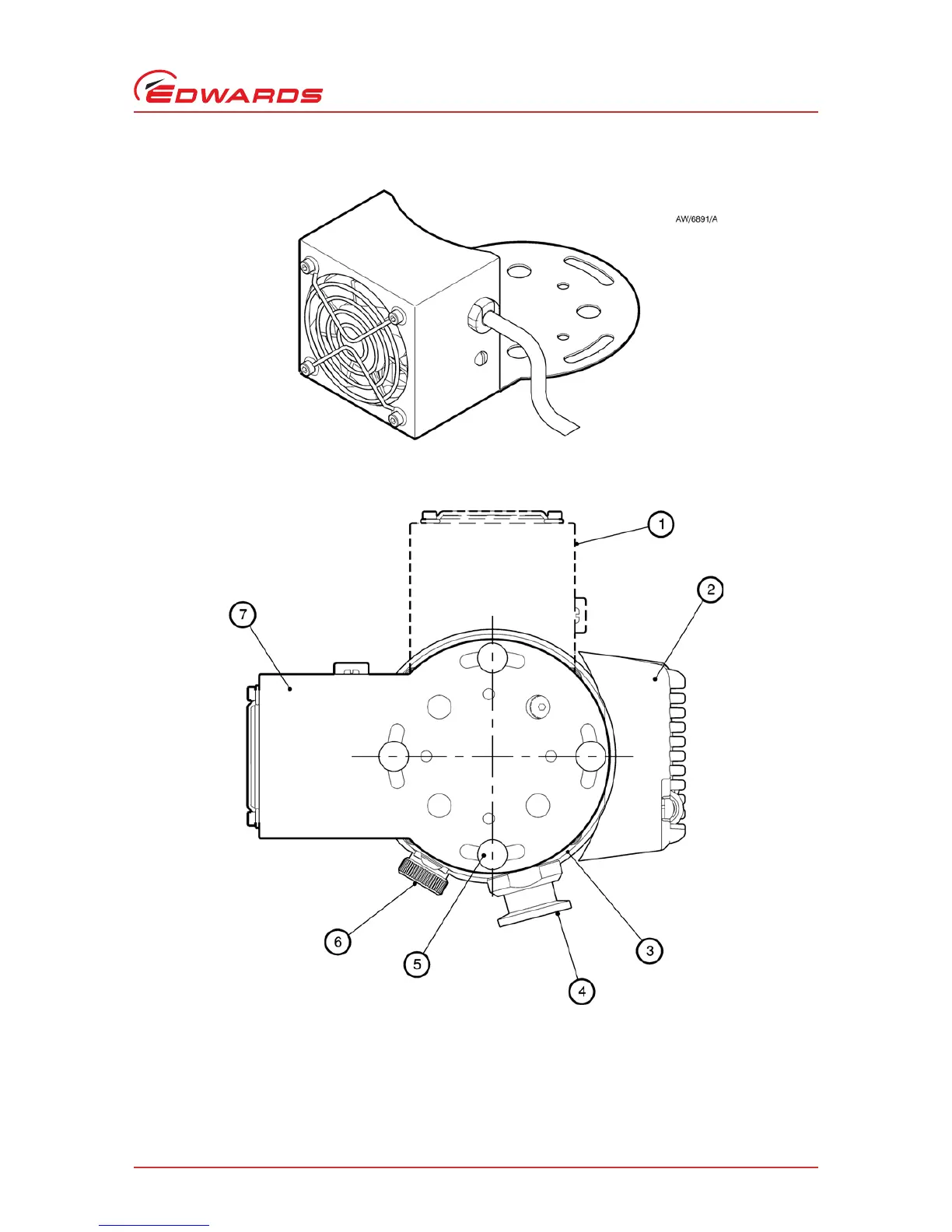

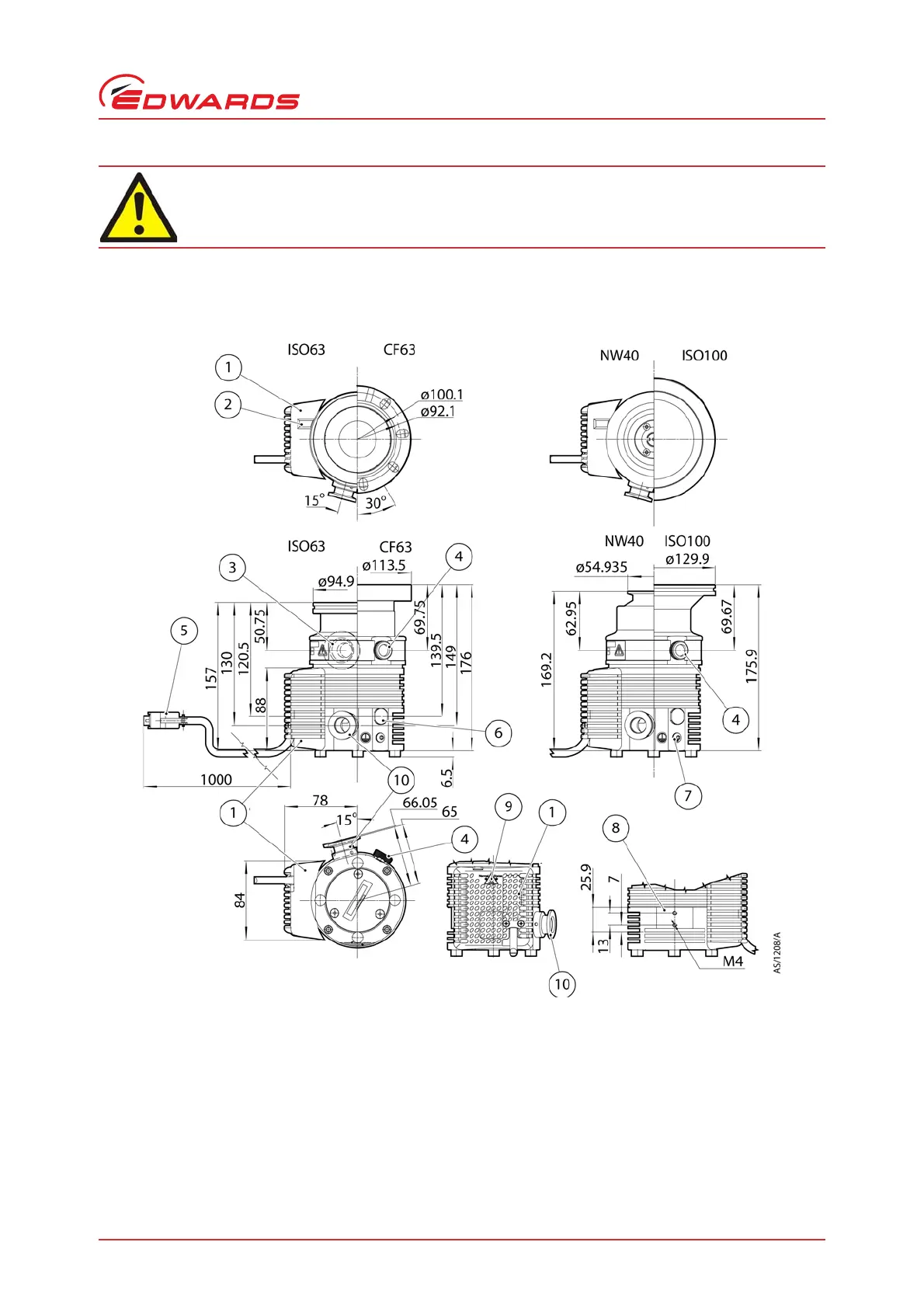

Figure 1 - EXT75DX dimensions (mm)
Do not exceed the maximum continuous operating pressure. Doing so can result in dangerous rotor
temperatures and will shorten the life of the pump.
1. Podule
2. Podule connector socket (for fan/TAV valve)
3. Interstage port (EXT75iDX only)
4. Manual vent valve in vent port
5. Logic interface connector
6. Purge port (blanked off)
7. Earth connection
8. Cooling block mounting face
9. Podule indicator LEDs
10.Backing port
