Edwards EXT70 - ACX400 Radial Air-Cooler Installation

B580-65-880 Issue G
Page 20 © Edwards Limited 2008. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
ACX air-cooler

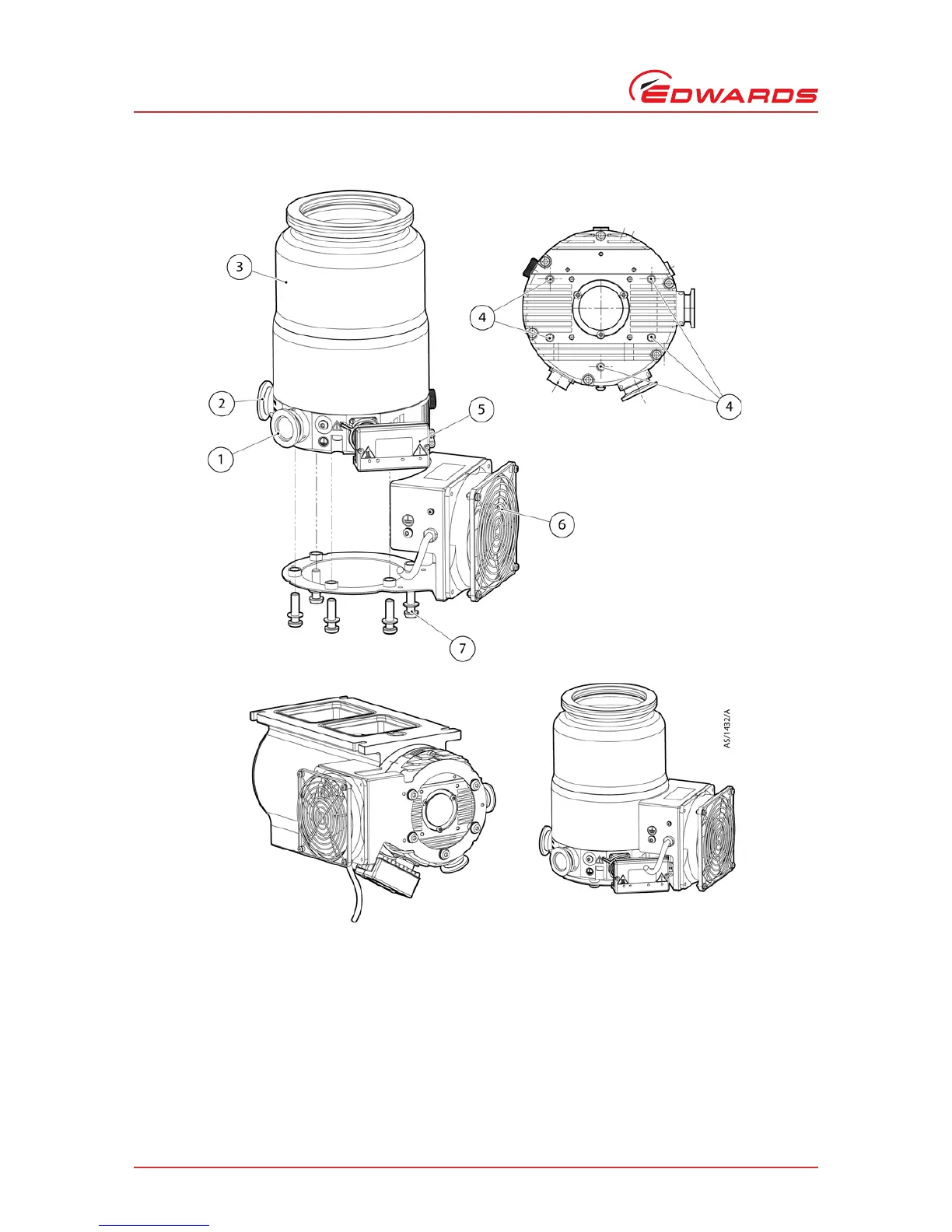

Figure 13 - ACX400 radial air-cooler installation
1. Pump backing port
2. Pump booster port
3. EXT406PX
4. Radial fan mounting screws (5 x M8 holes)
5. EXDC drive module
6. ACX400 air-cooler
7. Mounting screws (M8 x 30) and washers
