B580-65-880 Issue G
Page 16 © Edwards Limited 2008. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
ACX air-cooler

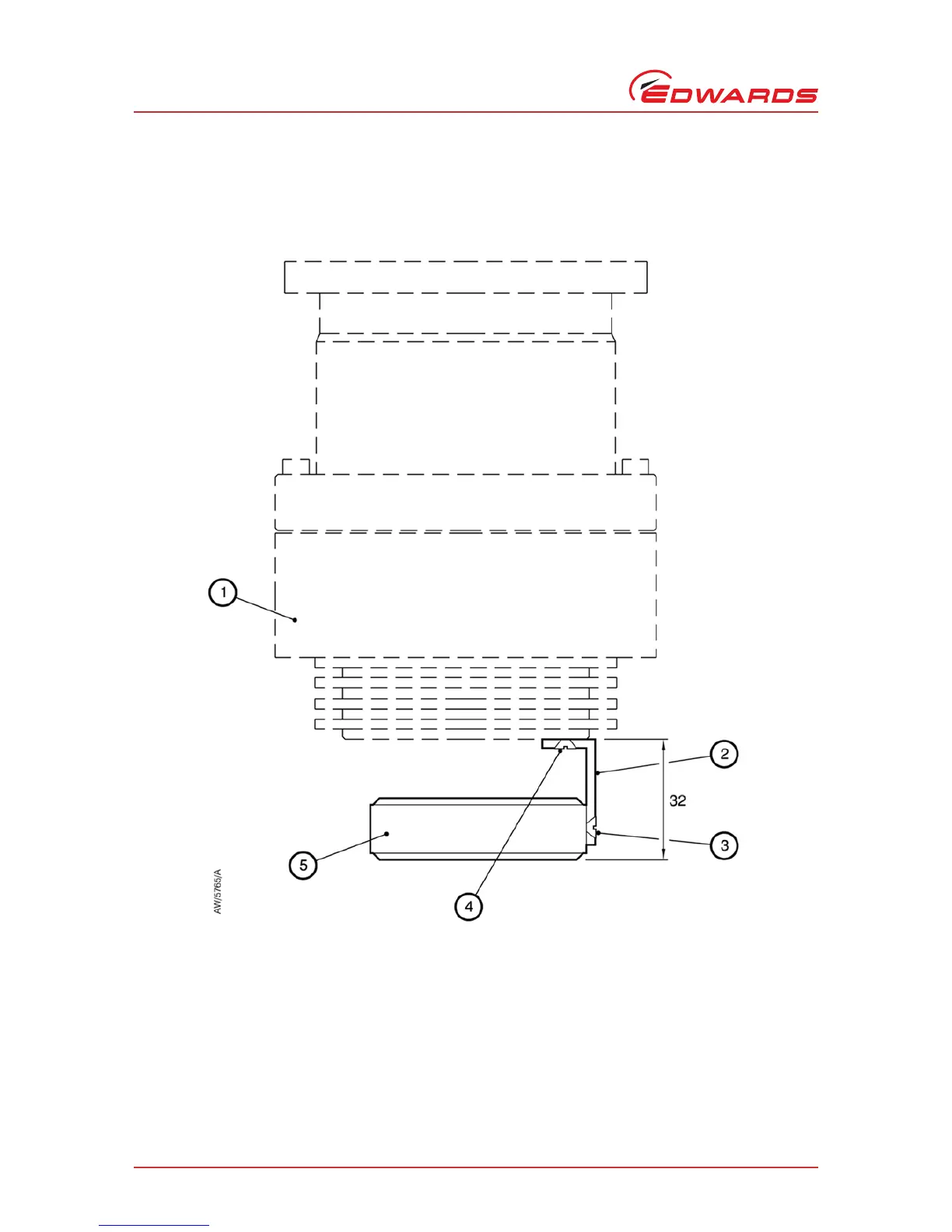

Figure 9 - ACX250 air-cooler axial installation (shown fitted to EXT250M pump)
1. EXT250M pump
2. ACX250 axial mounting bracket
3. Screws: M5 x 5 (2 off)
4. Screws: M5 x 5 (2 off)
5. ACX250 air-cooler
