Edwards EXT70 - Accessories for EXTPX Split Flow Pumps

B580-65-880 Issue G
Page 6 © Edwards Limited 2008. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Introduction

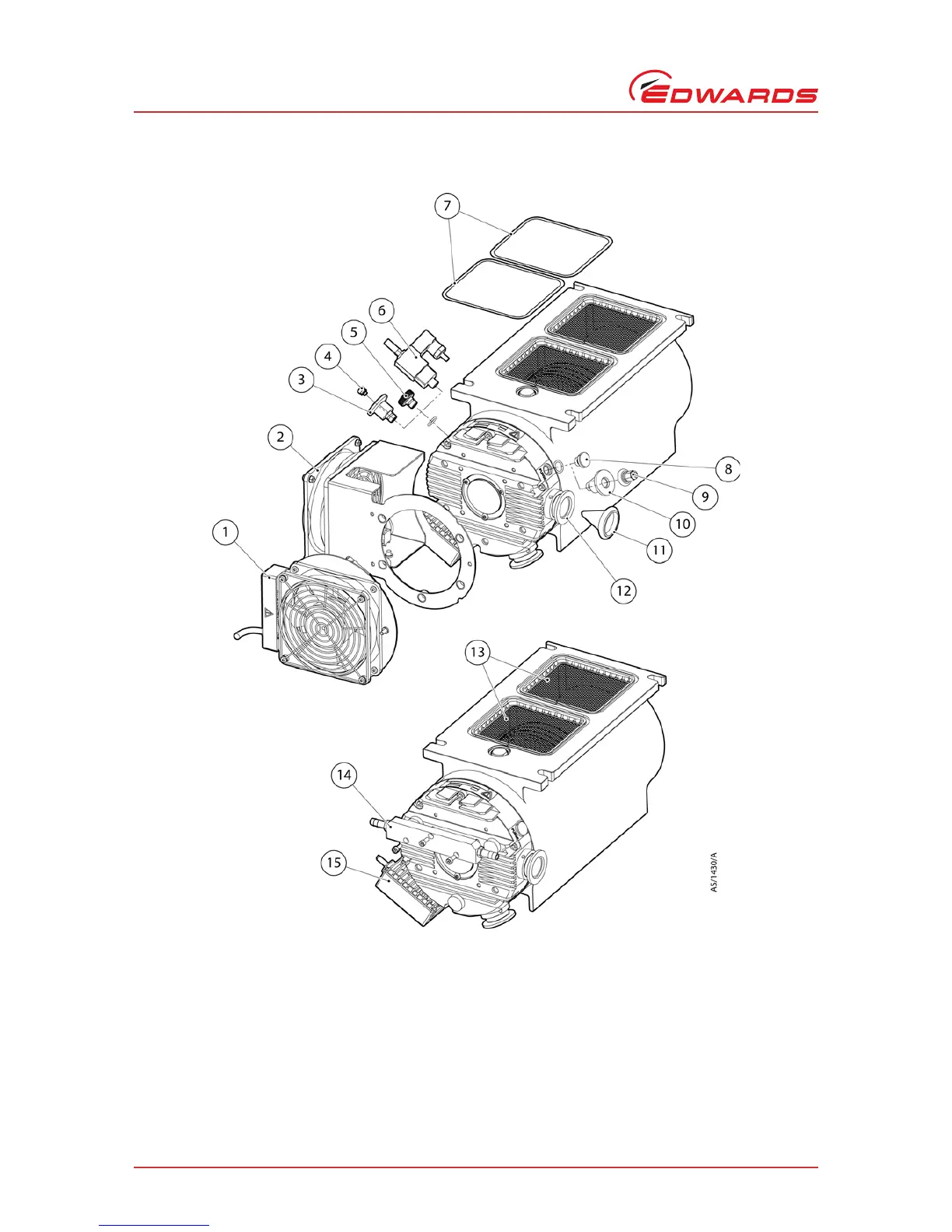

Figure 4 - Accessories for EXTPX split flow pumps
1. ACX400 axial air cooling accessory
2. ACX400 radial air cooling accessory
3. DN10NW vent port adaptor
4. VRX vent restrictor
5. Manual vent valve (fitted)
6. TAV solenoid valve
7. Inlet-flange O-rings
8. Purge plug (fitted)
9. PRX purge restrictor
10. DN10W adaptor
11. Booster-port strainer and seal
12. Booster inlet port
13. Inlet screens (fitted)
14. WCX water-cooler
15. EXDC controller
