Inlet screens
B580-65-880 Issue G
6.3.2.3 ISHX inlet-screens
Do not remove the three screws (Figure 27, item 1). If you do, the pump settings may change, and the pump
may not operate correctly, or have a shortened operating life.
To remove the ISHX inlet-screen:
z Refer to Figure 27. Undo and remove the three screws (3) which secure the inlet-screen (2), then remove the
inlet-screen. Do not remove or loosen the other three screws (1).
To fit the ISHX inlet-screen:
z Refer to Figure 27. Fit the inlet-screen (2) in position and secure with the three securing screws (3). Do not
remove or loosen the other three screws (1).

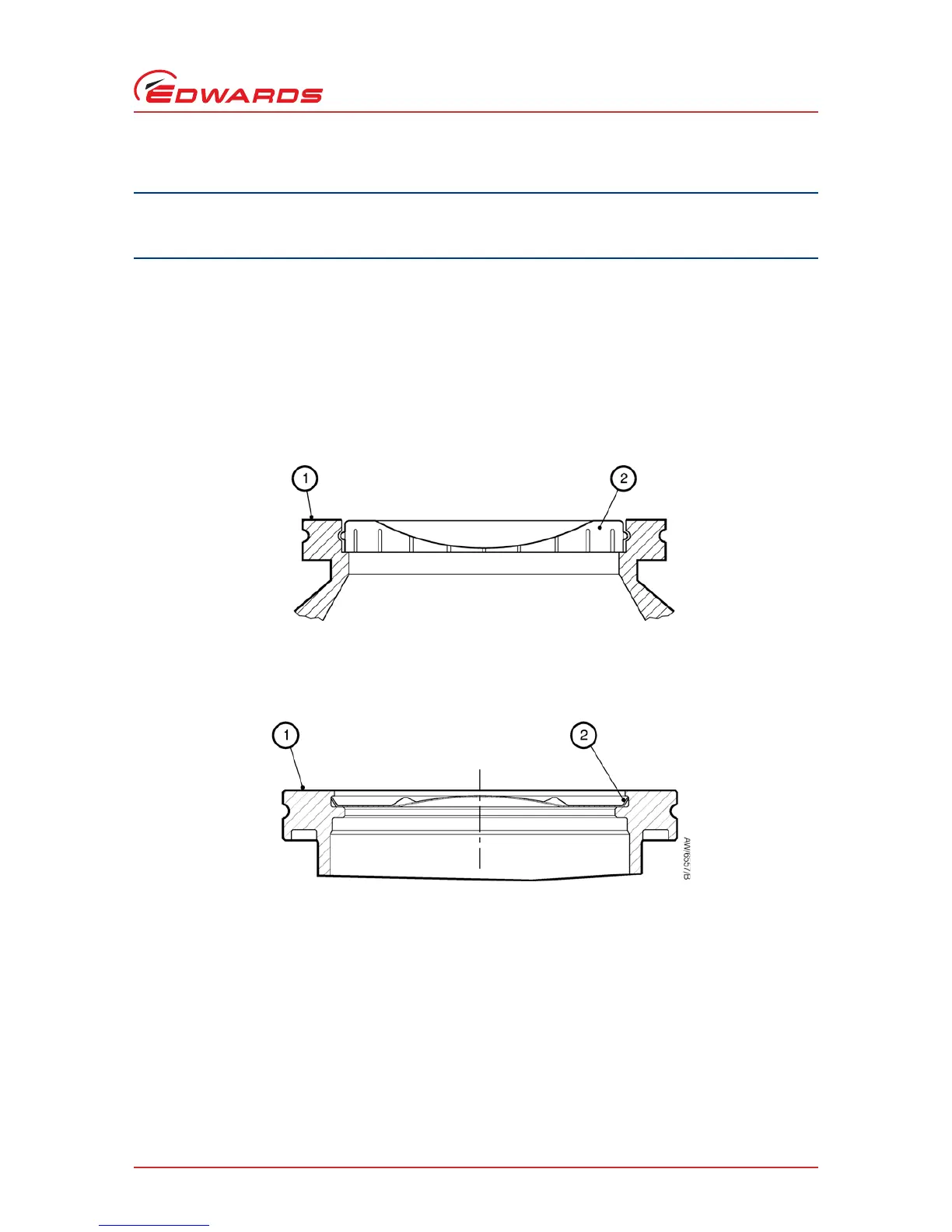

Figure 25 - ISX inlet-screen
Figure 26 - ISDX inlet-screen
