B580-65-880 Issue G
Page 44 © Edwards Limited 2008. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Inlet screens

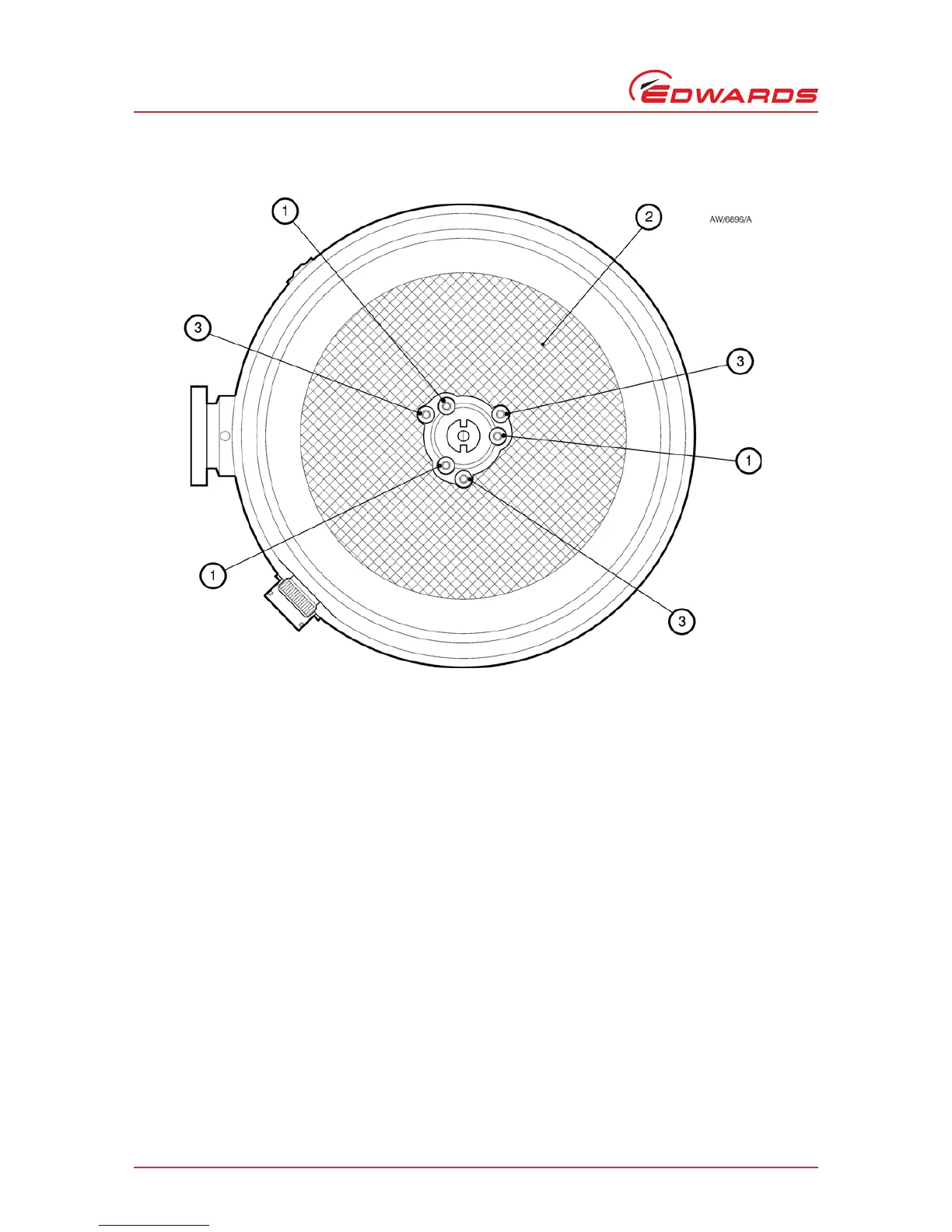

Figure 27 - ISHX inlet-screen
1. Screws: do not remove or loosen
2. ISHX inlet-screen mesh
3. Screws: remove to remove/fit inlet-screen
