ACX air-cooler
B580-65-880 Issue G
When you operate the ACX air-cooler, do not obstruct the fan-inlet; ensure that there is an adequate supply of
cooling-air. During operation, if the temperature of any surface of the pump is higher than 60 °C the pump is too hot
and you must increase the cooling.

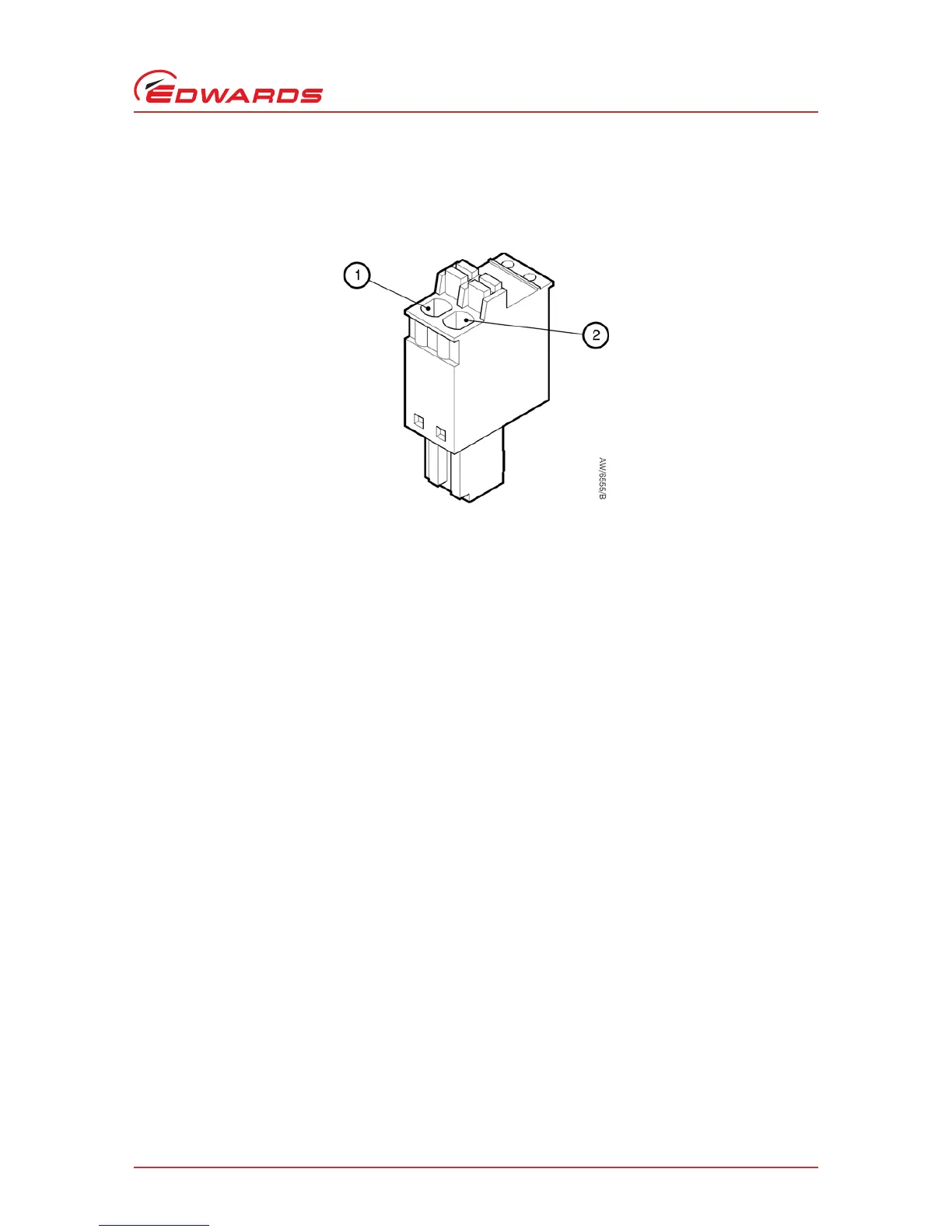

Figure 21 - EXT DX podule connector plug
