Introduction
B580-65-880 Issue G

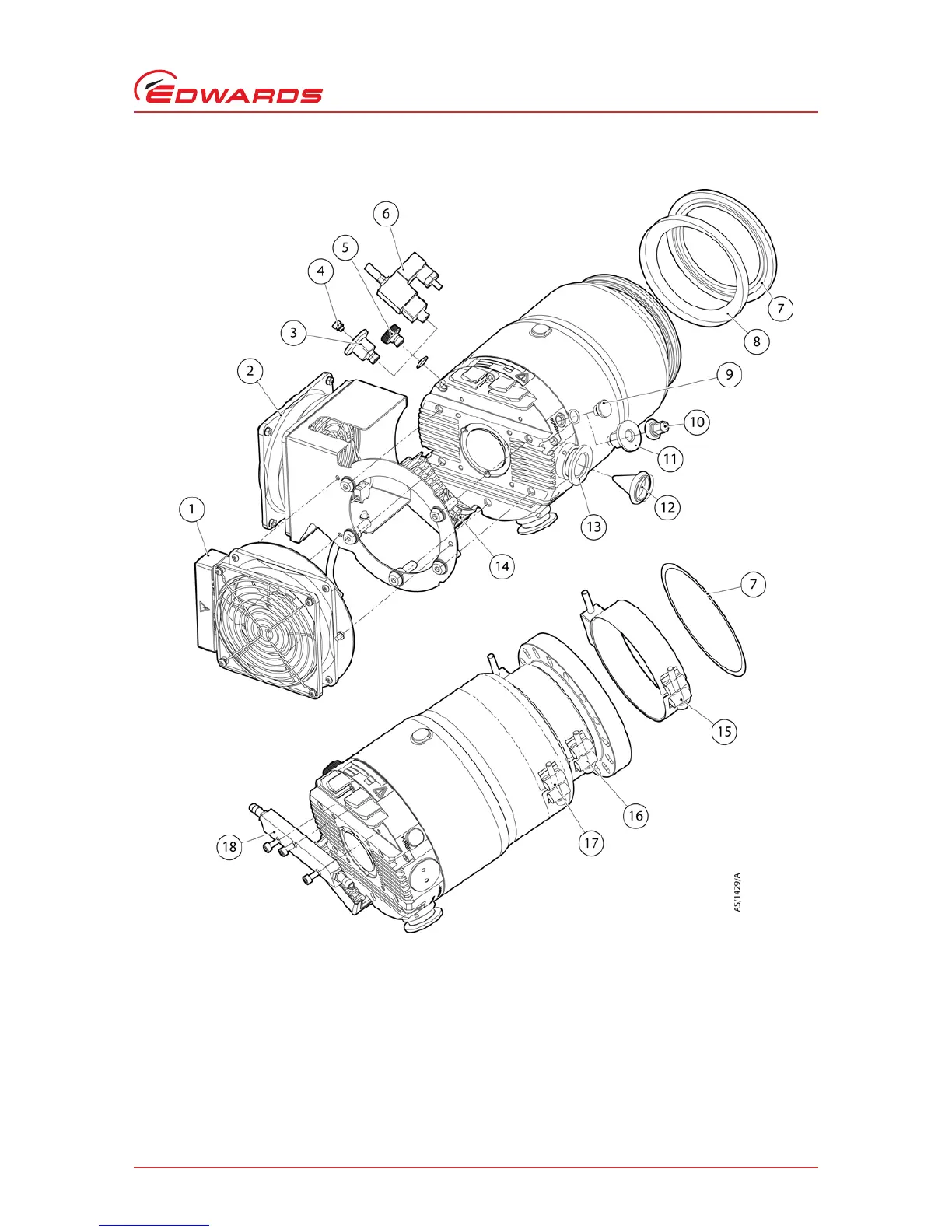

Figure 3 - Accessories for EXT406PX pumps
1. ACX400 axial air cooling accessory
2. ACX400 radial air cooling accessory
3. DN10NW vent port adaptor
4. VRX vent restrictor
5. Manual vent valve (fitted)
6. TAV solenoid valve
7. Inlet-flange O-ring/ gasket
8. Inlet screens (fitted)
9. Purge plug (fitted)
10. PRX purge restrictor
11. DN10W adaptor
12. Booster-port strainer and seal
13. Booster inlet port
14. EXDC controller
15. Bakeout band (BX250 shown)
16. BX250 bakeout band position
17. BX450 bakeout band position
18. WCX water-cooler
