Edwards EXT70 - Accessories for EXT DX Pumps (Ext75 Idx Pump Shown)

© Edwards Limited 2008. All rights reserved. Page 3
Edwards and the Edwards logo are trademarks of Edwards Limited.
Introduction
B580-65-880 Issue G

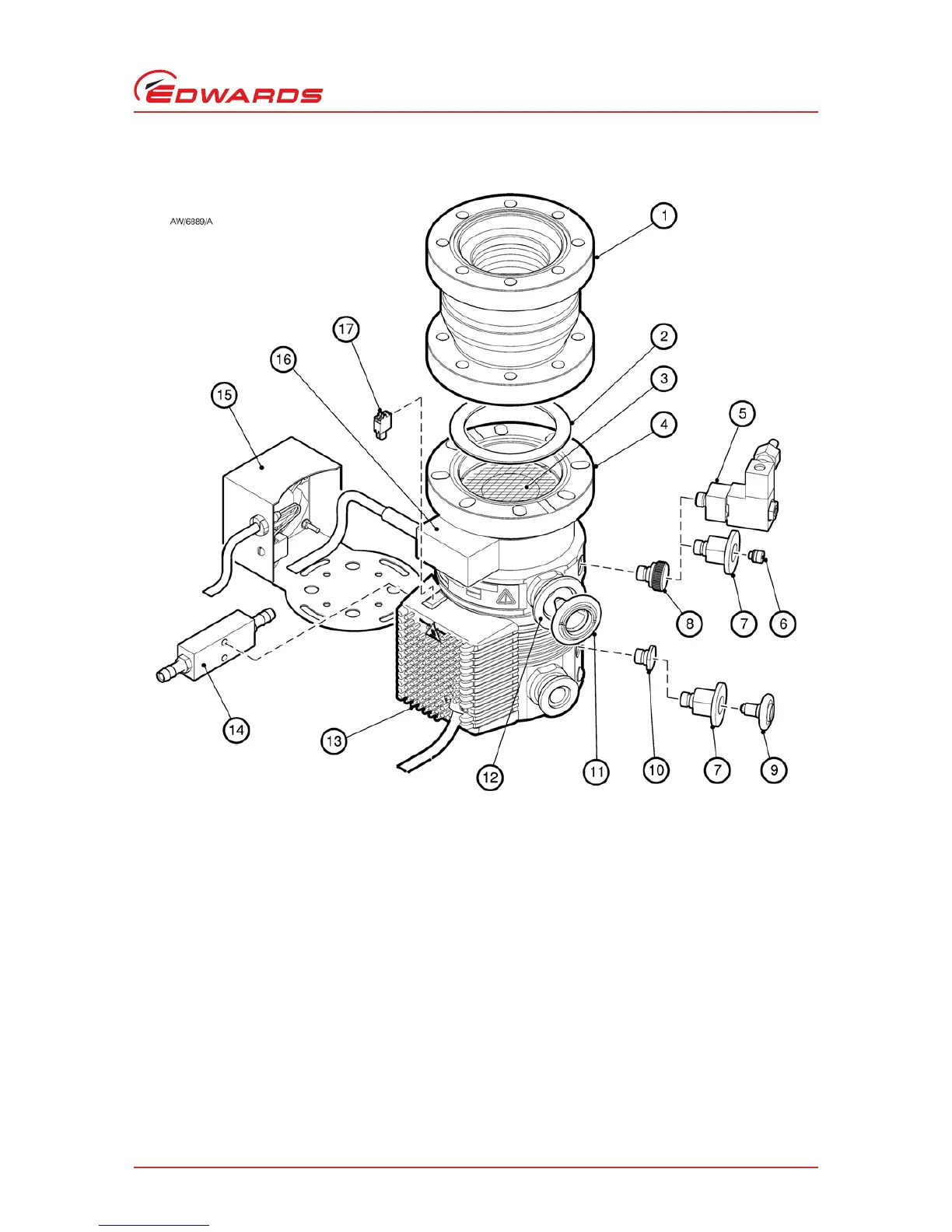

Figure 1 - Accessories for EXT DX pumps (EXT75iDX pump shown)
1. Vibration isolator
2. Inlet-flange seal
*
3. Inlet-screen
*
4. EXT DX pump
5. Solenoid vent-valve
6. Vent-restrictor
7. Vent-port adaptor
8. Manual vent-valve
*
*
Supplied with/fitted to the pump: refer
to the instruction manual supplied with
your EXT pump.
9. Purge-restrictor
10. Vent-port plug
*
11. Interstage inlet strainer
†
12. Interstage inlet port
†
13. Podule
14. Water-cooler
15. Air-cooler (design varies with pump)
16. BX bakeout band
17. Podule connector plug (as required)
*
†
Supplied with/fitted to ‘i’ model
pumps only: refer to the instruction
manual supplied with your EXT pump.
