TAV vent-valve
z If you have connected the TAV vent-valve to the podule of an EXT DX pump: refer to the EXT DX pump
instruction manual.
z If you have connected the TAV vent-valve to a TIC: refer to the TIC instruction manual for operating
instructions.
z If you have connected the TAV vent-valve to your own electrical supply, switch on the electrical supply to
operate the vent-valve.

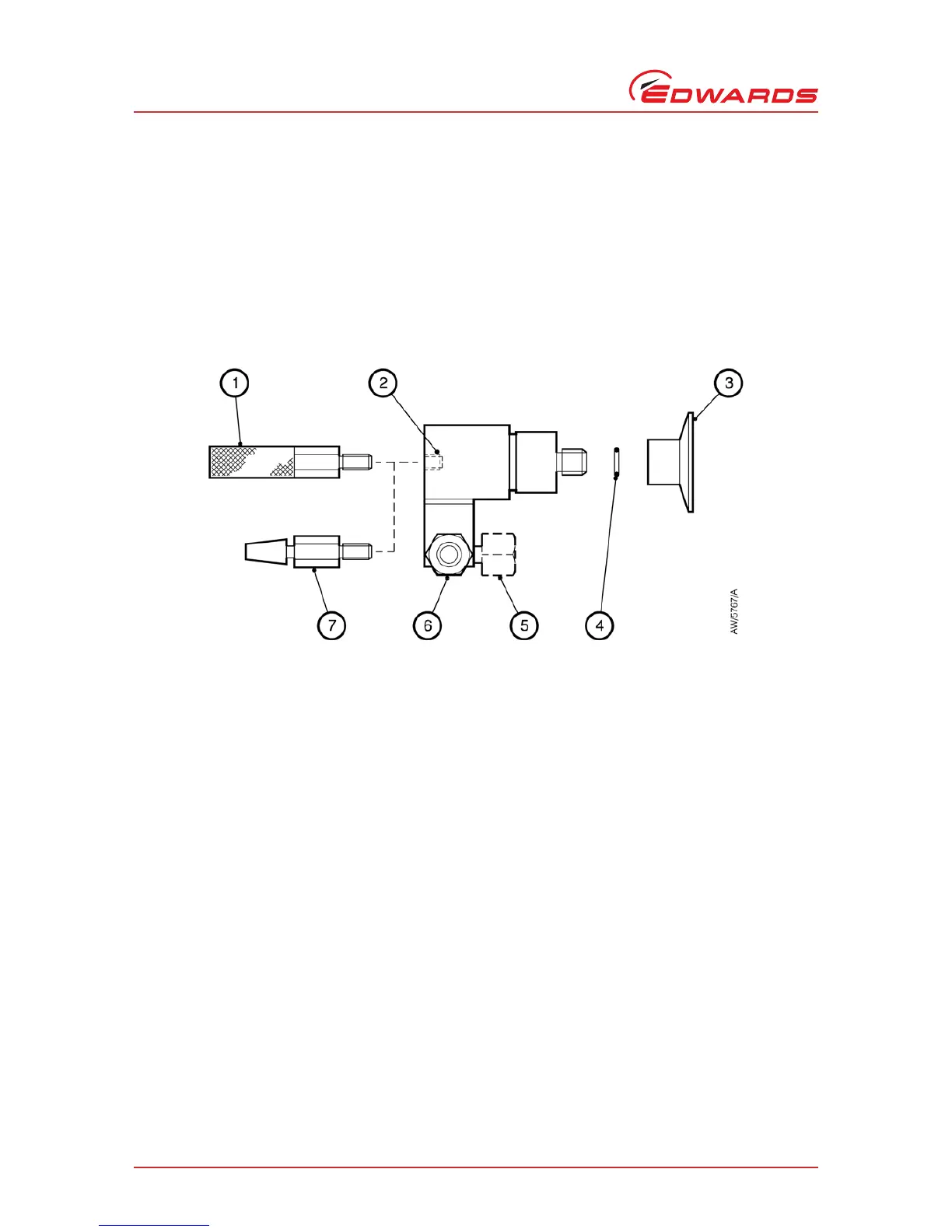

Figure 23 - TAV vent-valve connections
1. Air filter
2. Inlet-port
3. Vent-valve adaptor
4. O-ring
5. Alternative electrical supply connector position
6. Electrical supply connector
7. Hose connector
