Vent-port adaptor

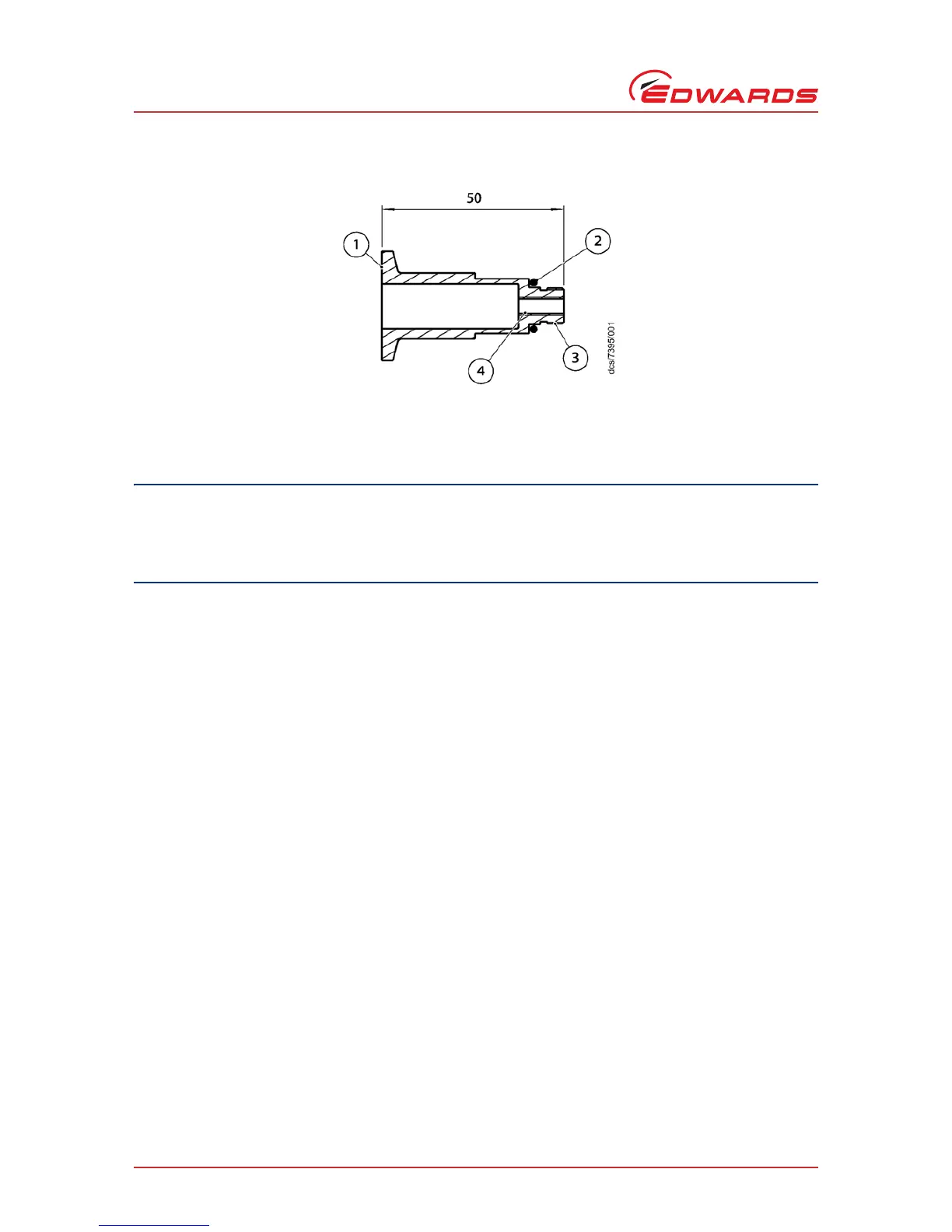

Figure 30 - Extended vent-port adaptor
The extended vent-port adaptor is not supplied with a removable flow restrictor. Venting a turbo pump from
atmosphere, through the extended vent-port adaptor, would cause damage to the turbo pump. To vent a turbo
pump when using the extended vent-port adaptor, you must either control the flow-rate to the adaptor or
incorporate a 0.8 mm orifice in the pipeline used to connect to the extended vent-port adaptor.
The extended vent-port adaptor is best suited to the following pump types:
z EXT200/200H
z EXT200/200Hi
z EXT200/200/30H
z EXT400/200/30H
z EXT70/70/200H
