5.2 Gravity and weight statement
The gravity point of this machine is approx. 2,3 meters from the ground
and it weighs approx. 22000 kg in tota l / inlet hopper approx. 2000 kg/ fly-
wheel cover approx. 500 kg and the flywheel approx. 2000 kg.
5.3 Recommended floor fixing methods
When fixing the machine it is essential t hat the base is flat and level. If this
is not possible it will be necessary to level the floor.

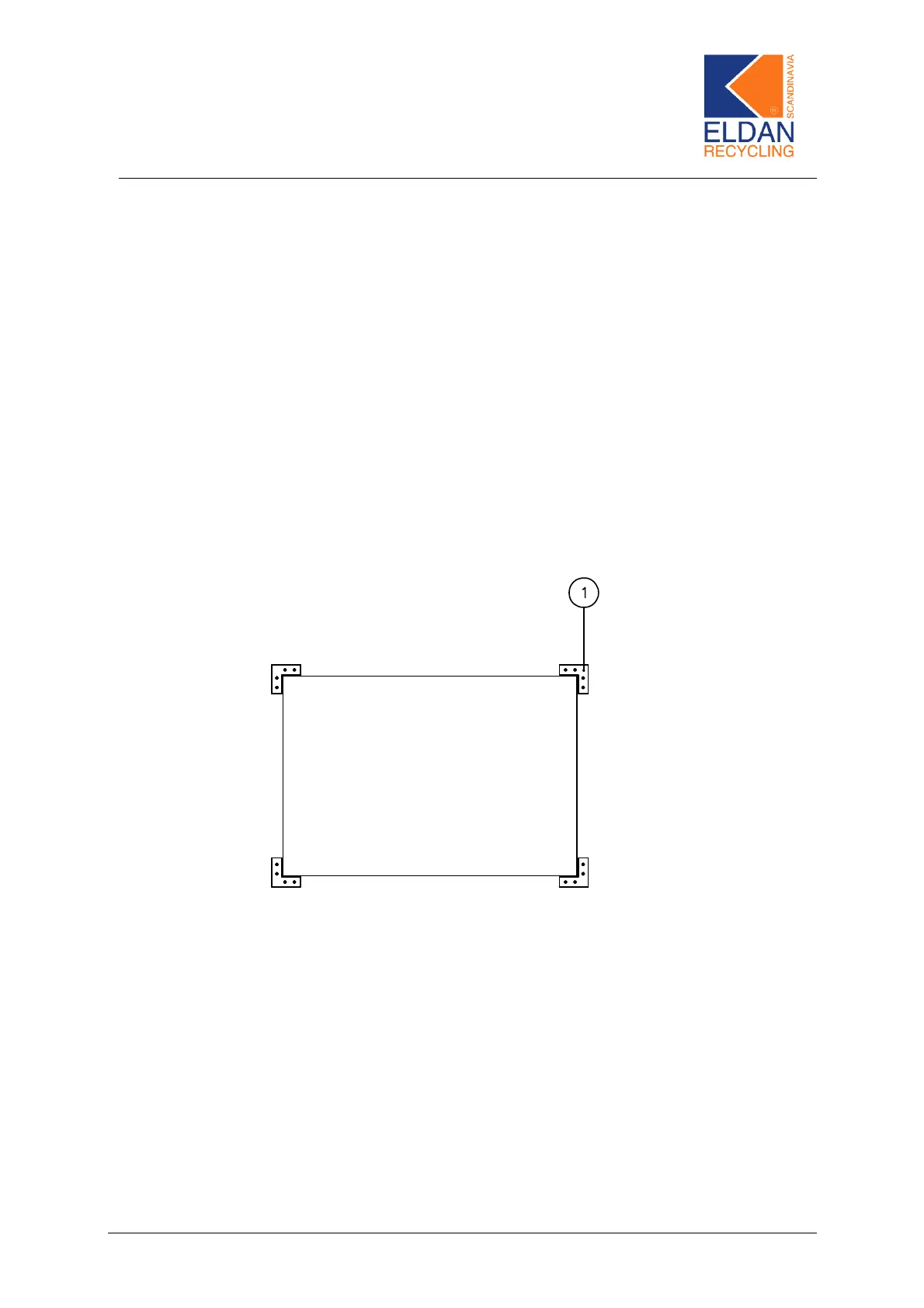

When final placing of the machine is known the machine is fastened to the
floor by means of the enclo sed clamps and expansion bolts, Figure 4 -
Pos. 1.
Figure 4
ELDAN Recycling A/S Page 18
