6.13 Torque

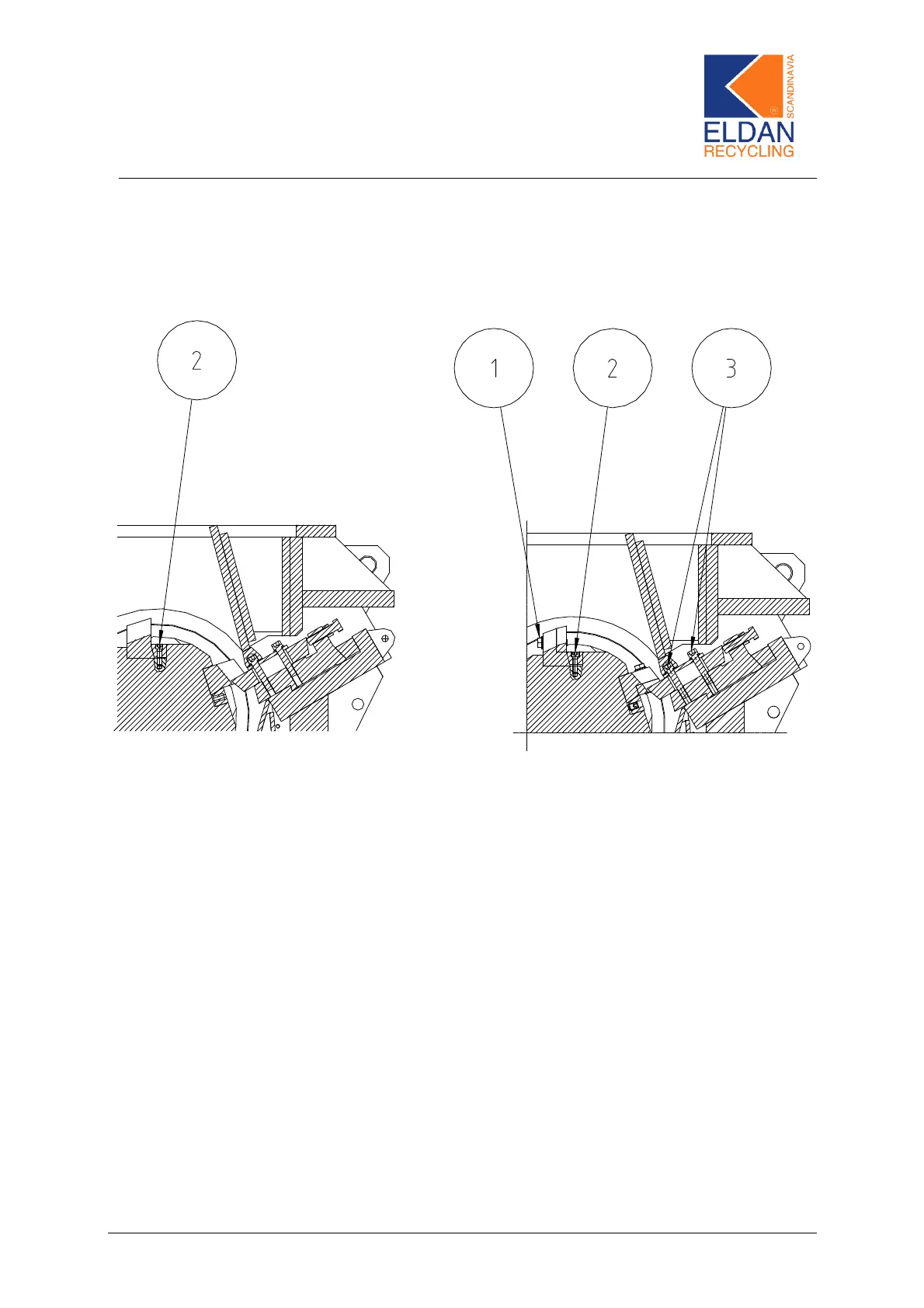

Figure 15
Description Ty pe Quality Torque Remarks
Nm
Screw/Flying knife
holder (wedge) MC12x45 12.9 120 Figure 15 - Pos. 2
Screw/Flying knife M16x65 12.9
320 Figure 15 - Pos. 1
Screw/static knives MC16x75 12.9 320 Figure 15 - Pos. 3
To ensure accurate setting the following conditions should be met:
1. The bolts must be untreated.
2. The bolts must be greased with cu-grease or similar
Never dip the bolts in oil, as this will create a risk that the torque settings may
be greater than intended thus exposing the bolts to too great tension.
It is very important that the above is re spected, because it may otherwise cause
damage to the knives and other vital parts.
