8.4 Adjustment of belt drive
TENSION OF THE BELT DRIVE
By a load of 68 N corresponding to 6,8 kg or 15 pound force the tension of the
belts must be adjusted so the deflection of the belts is 17,5 mm.
The belts must be adjusted regularly

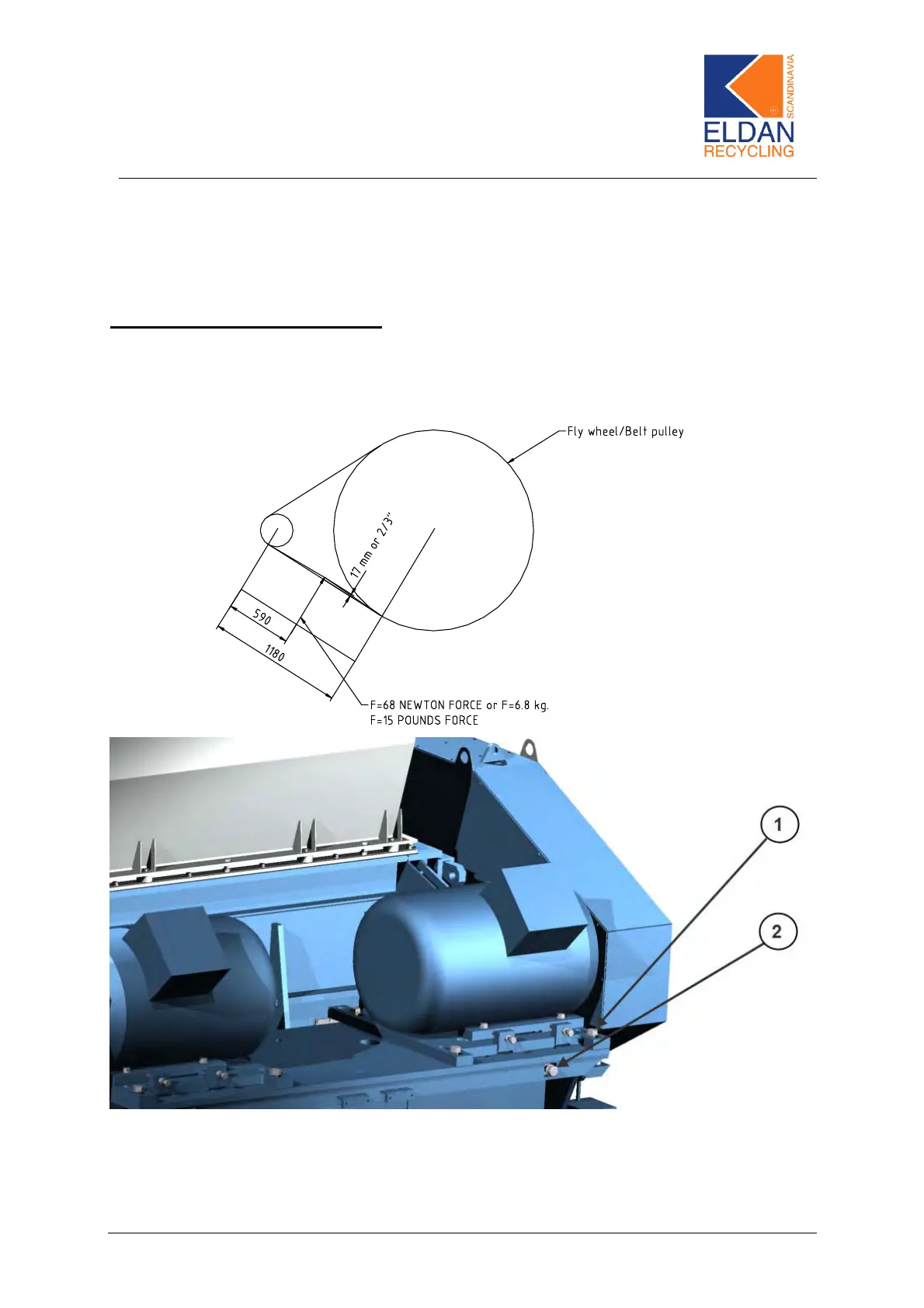

Figure 19
Loosen the 4 bolts, Figure 19 – Pos 1, and to adjust the belts tighten or loosen the
bolt, Figure 19 – Pos 2. When the above mentioned tension is achieved tighten the 4
bolts, Figure 19 – Pos. 1.
ELDAN Recycling A/S Page 62
