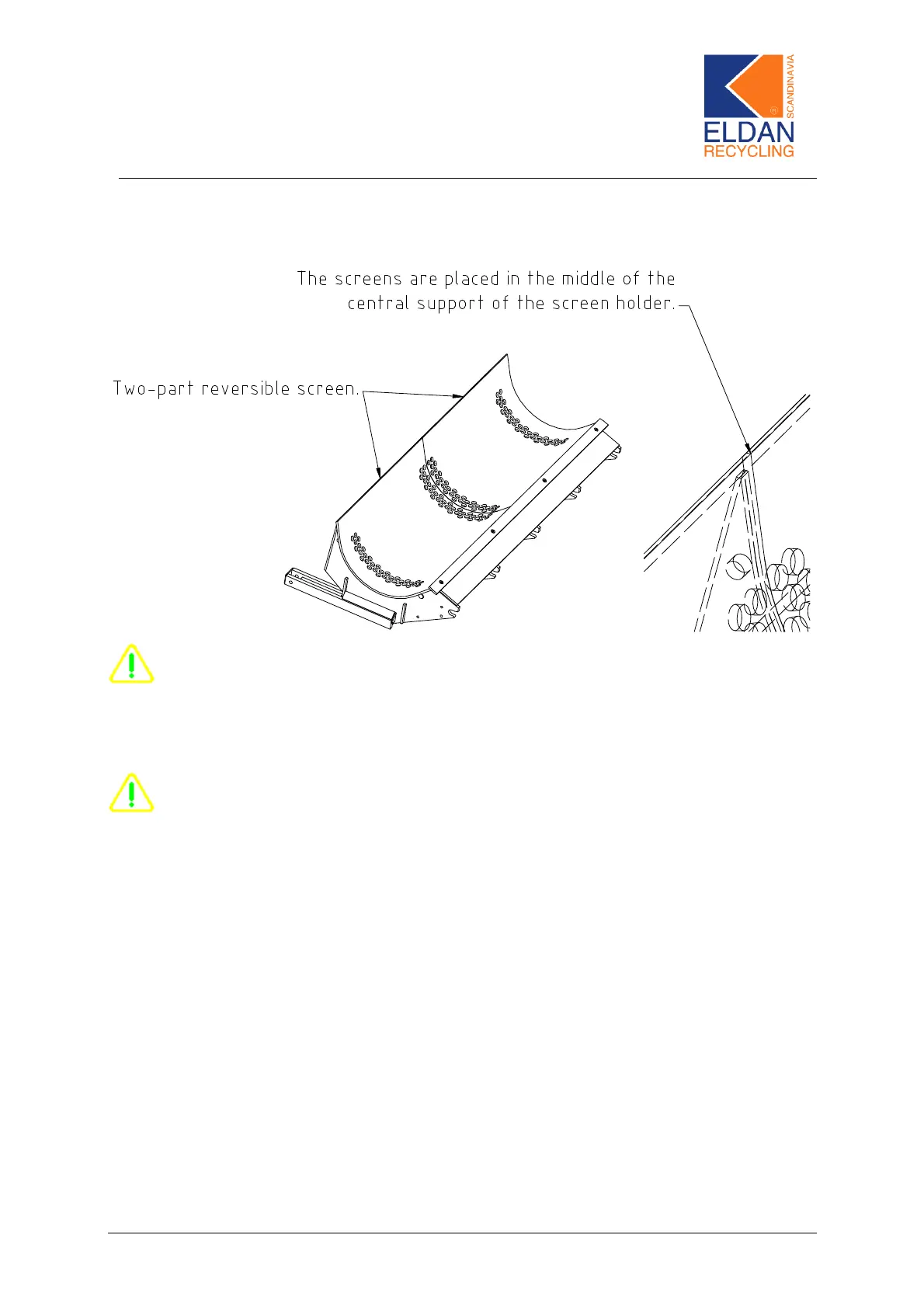

Figure 14
The two-piece screen plates weighs each approx. 30 kg each and
should be lifted by 2 per-sons
6.12 Mounting of the screen and discharge hopper
The screen support must be carefully cleaned before the screen plate
is installed.
1) The two-piece screen plates are placed in the screen holder. It is
very important that the screen plate fit 100% in the screen holder and
it is also important that possi ble deformations in the screen holder
are removed before the screen plate is mounted.
2) The two screen plates must be adj acent and placed in the middle of
the central supports of the screen holder. See Figure 14.
3) If necessary, mount a new wear plate.
4) The hydraulic pump is connected.
5)
The screen holder can now be raised by means of the hydraulic con-
trol handle, which is placed on the side of the machine.
6) When the screen holder has been co rrectly closed, the hydraulic
pump is turned off again.
7) The two lock nuts are inse rted again and tightened with a 30-mm
spanner. It is very important that the screen holder is 100% closed.
ELDAN Recycling A/S Page 40
