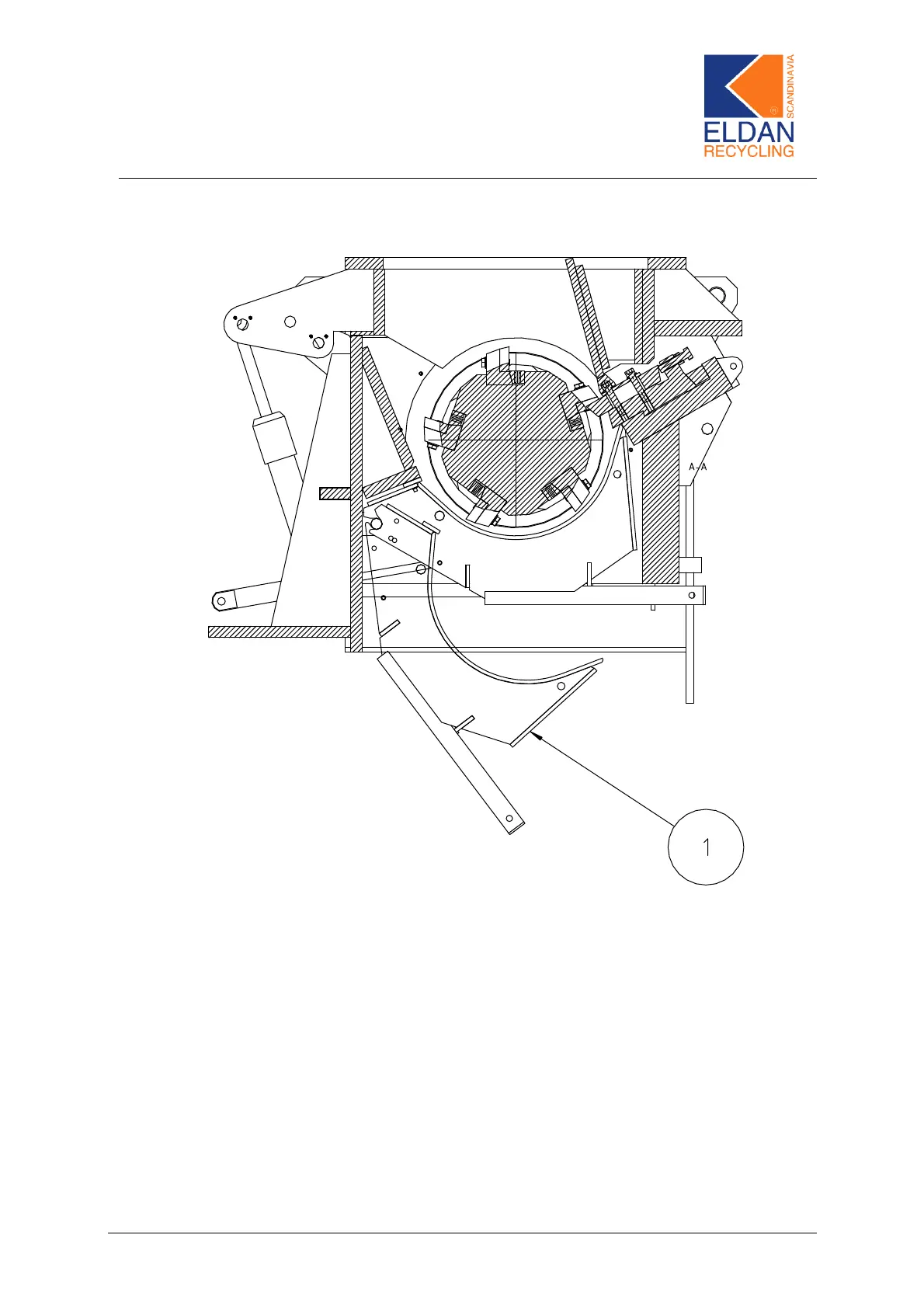

Figure 12
6) When the screen holder has been correct ly lowered, the hydraulic motor
must be turned off again.
7) The screen is a two-piece screen, whic h not are fixed in the screen holder.
See figure 13.
8) The screens, Figure 13 – Pos. 1, are removed.
9) Dismount the wear plate, Figure 13 – Pos. 4, if it is worn.
ELDAN Recycling A/S Page 38
