AVN HYDRAULIK A-S
Dalager 1 DK-2605 Brøndby Fax +45 4324 5500 E-mail: avn.hydraulik@avn.dk
Suensonsvej 14 DK-8600 Silkeborg Fax +45 8722 8100 Web: www.avn.dk
+45 70 20 04 11

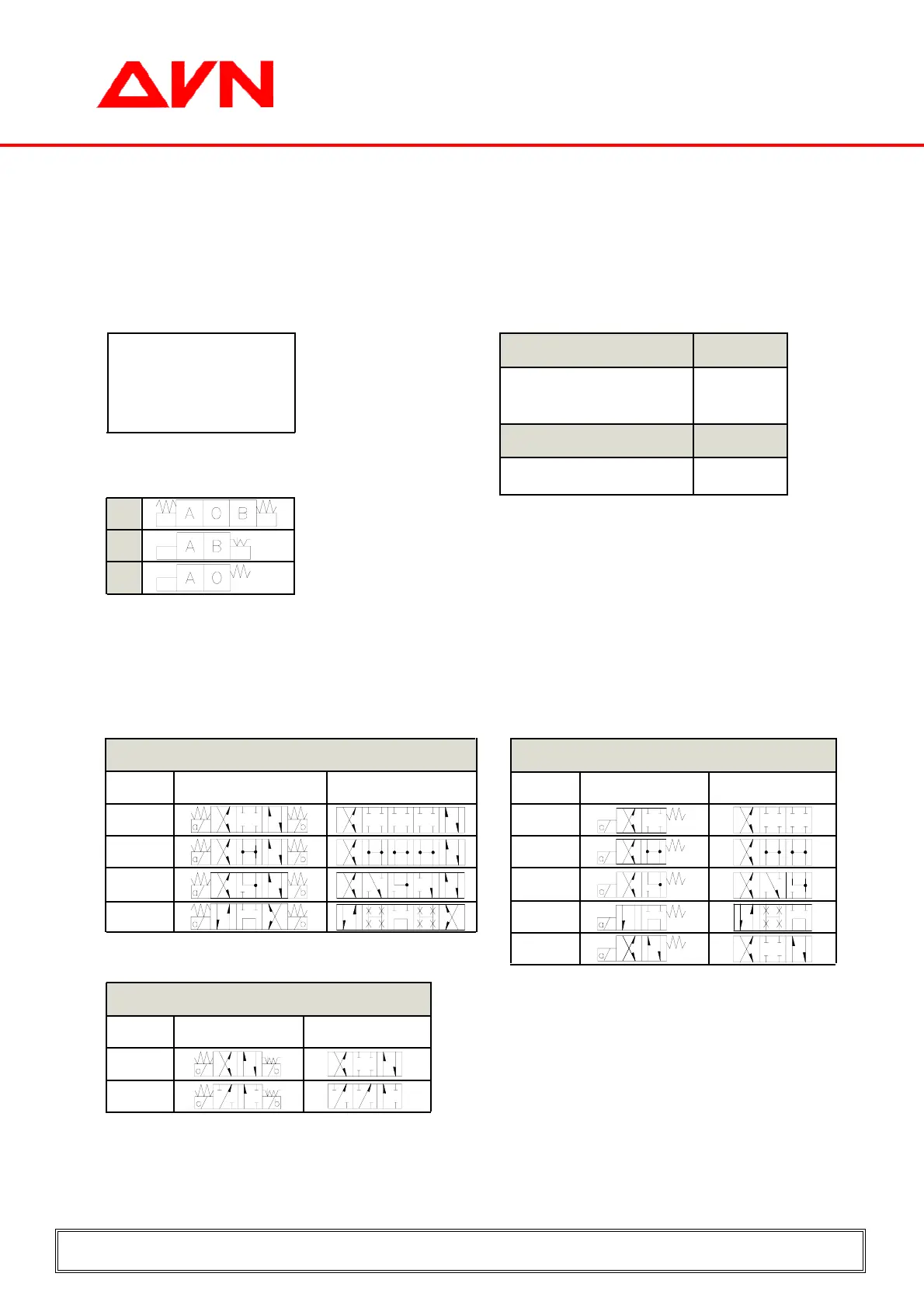

Directional controlvalve AD3
rev. 1.0
7.1.2
Page
Spool Symbol Transient position
20
21
Two solenoids ”D” mounting spool
Spool Symbol Transient position
01
02
03
04
Two solenoids ”C” mounting spool
Spool Symbol Transient position
01
02
03
04
16
One solenoid ”E” mounting spool
Table 5
Only the most common types is shown. In case you need information concerning other types,
please do not hesitate to contact our sales department or visit our website.
Table 2 – Mounting
* = with lock
C
D*
E
Table 1 – Type of operator
E = Electrical
M = Mechanical
D = Direct mechanical
O = Hydraulic
P = Pneumatic
L = Lever operation
Table 3 – Voltage
AC – Voltage Rated power
A = 24V / 50 Hz 57 VA
J = 115V / 50 Hz - 120V / 60 Hz 52 VA
Y = 230V / 50 Hz - 240V / 60 Hz 55 VA
DC – Voltage Rated power
L = 12 VDC 30 W
M = 24 VDC 30 W
