Transport and storage Operating manual - Fan CF-C
30 of 84 www.elektror.com 2004930 10.19/0.2
EN

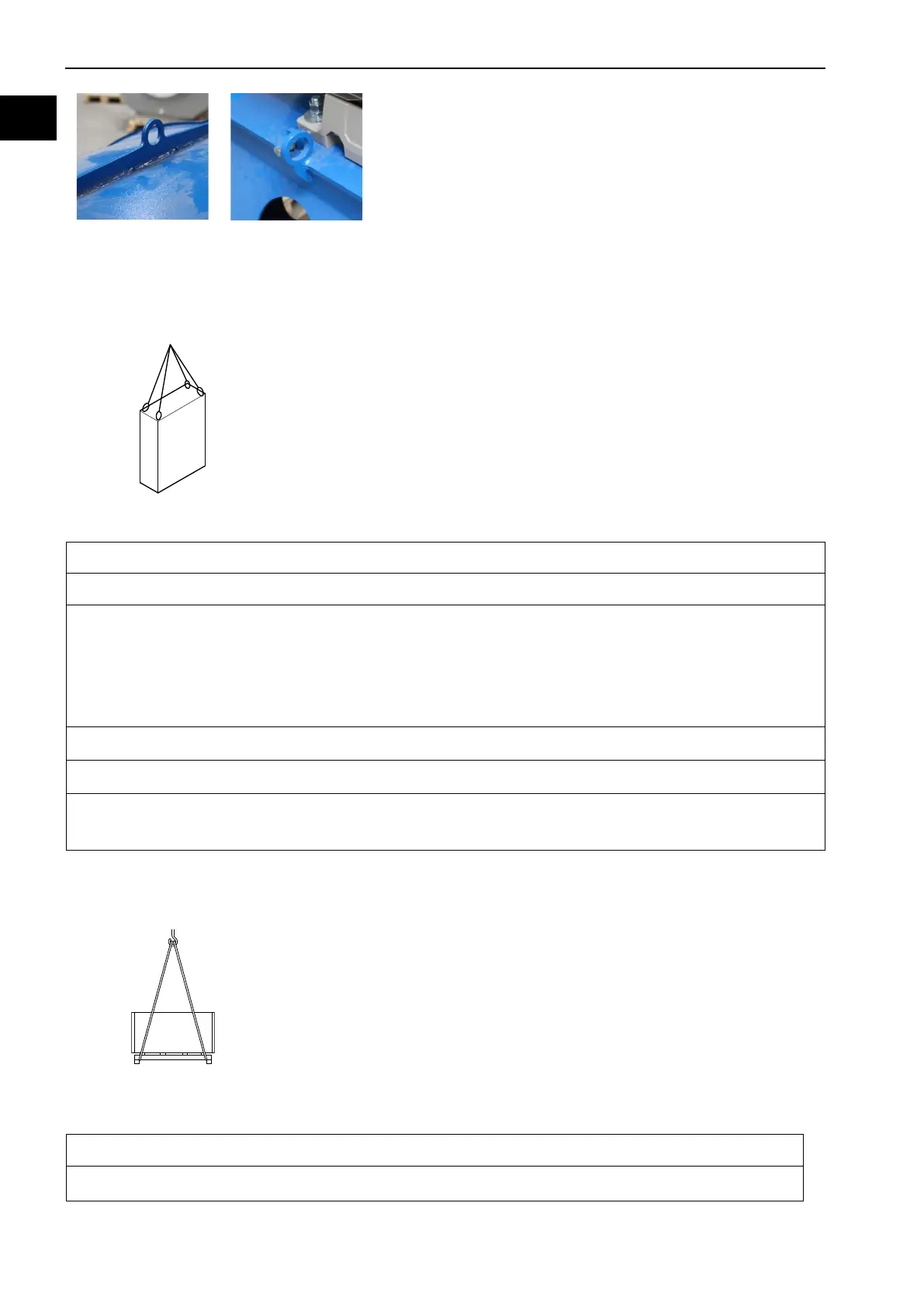

housing
console
− Only slings of the same length should be used,
observing the principles of uniform distribution of the load.
The sling attachment angle should not exceed 45°.
Transport of small parts in packaging in a vertical position with a crane
Vertical transport of the fan requires the use of the following auxiliary
elements:
4 x transport lugs
4 x loops with a capacity of 1,000 kg
Using the auxiliary elements mentioned above, taking into account the following steps, lift the
fan, transport it and set it to a horizontal position in the installation site.
1. Pull the loops through the transport lugs.
2. Hang the loops on the crane hook.
3. Raise the fan evenly.
Note:
- When lifting, move the crane horizontally to maintain the position of the pivot point.
- Make sure that the fan is hanging straight. If necessary, take into account the location of
the centre of gravity.
4. The fan should be transported to the place of installation.
5. Carefully set the fan in the place of installation.
Result:
The fan is located in the place of installation as intended.
Transport of pallets in a horizontal position with a crane
The transport of pallets in a horizontal position requires the use of the
following auxiliary elements:
2 x loop with a capacity of 1,000 kg
Using the auxiliary elements mentioned above, taking into account the following steps, lift the
pallet, transport it and set it to a horizontal position in the installation site.
1. Fix the loops in the corners of the pallet, respectively.
2. Hang the loops on the crane hook.
